Fisher & Paykel DD60DC User Manual

9
2
1
3
(x2)

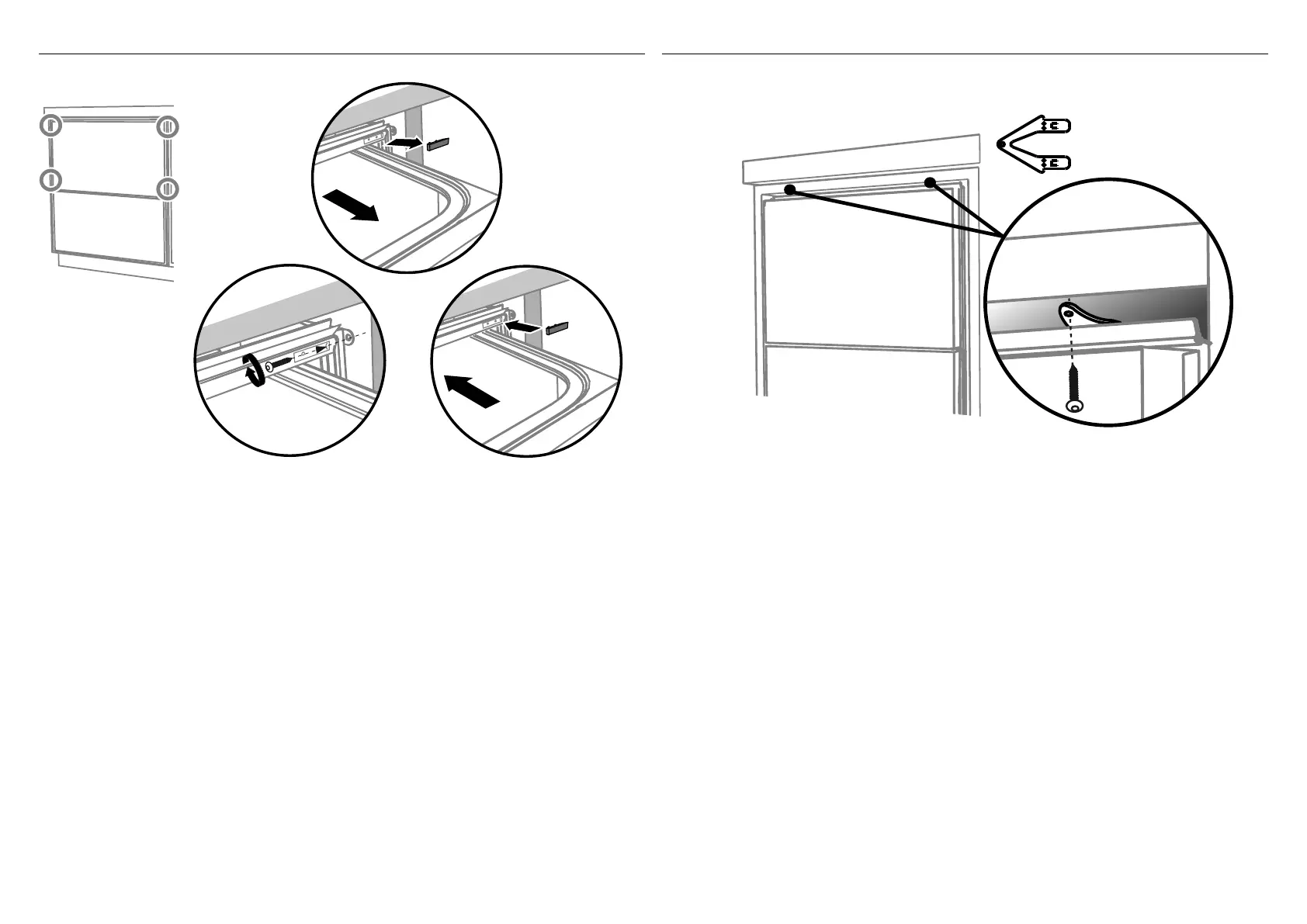

!0-A SECURE TO THE CABINETRY ON THE SIDES
!2-A AFTER SECURING, DEPENDING ON YOUR MODEL - REFER TO RELEVANT ‘FIT THE SUPPLIED TOEKICK PANEL’ STEP
!1-A OPTIONALLY SECURE TO THE CABINETRY ABOVE
Open the drawer
halfway. Using
a flat bladed
screwdriver, prise
the grey rubber
plug out of the
trim moulding.
Replace the grey
rubber plug back into
the trim moulding
and ensure the trim
seal is facing forward.
Repeat for all
four brackets.
Using a small Philips
screwdriver, screw
through the trim
moulding, securing the
side mounting bracket
to the cabinetry.
Do not damage the
rubber trimseal.
The top mounting
brackets will only
bend upwards a
maximum of 10 mm.
