11
7b
7c
ø
60 mm
ø
60 mm
max.
5 mm
max.
5 mm
220 mm
220 mm
100 mm
100 mm
ø
60mm
Services can be located
either side of dishwasher
VENT HOSE
VENT HOSE
& SERVICES
SERVICES
Services can be located
either side of dishwasher
Shelf cutouts
Shelf cutouts
The ø60 mm services hole should
be enlarged to accomodate the
extra venting hose by
cutting out some material from
the bottom corner.
External Venting kit (1)
External Venting kit (1)

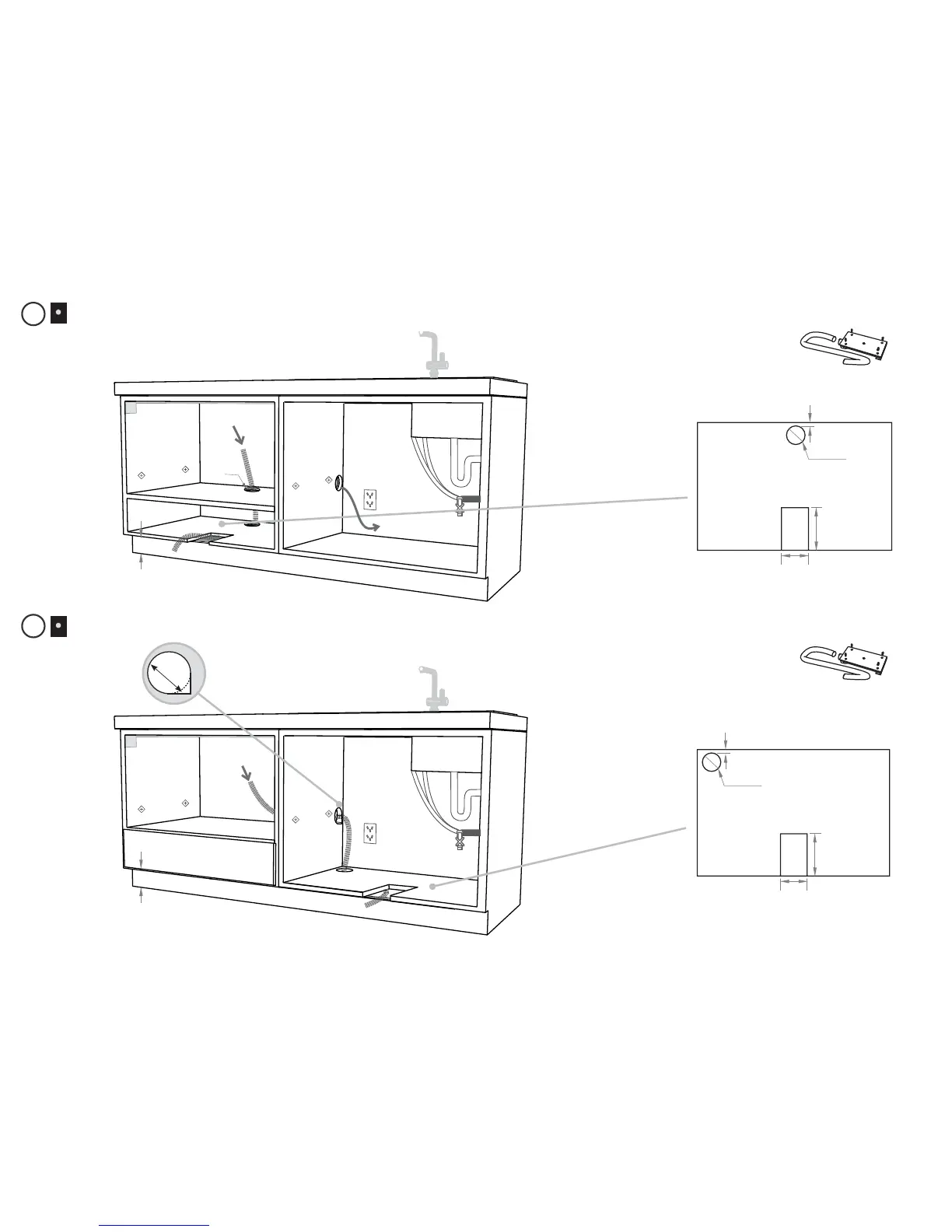

INTEGRATED MODELS WITH REMOTE ONLY - PREPARATION FOR EXTERNAL VENTING THROUGH SAME CABINET
INTEGRATED MODELS WITH REMOTE ONLY - PREPARATION FOR EXTERNAL VENTING THROUGH ADJACENT CABINET
min. 100 mm
min.100 mm
Important!
To prevent pooling of condensation from the vent hose, a
toekick height of no less than 100 mm is required.
Important!
To prevent pooling of condensation from the vent hose, a
toekick height of no less than 100 mm is required.
