Fisher & Paykel DD60SCX7 Installation Instructions

7
5

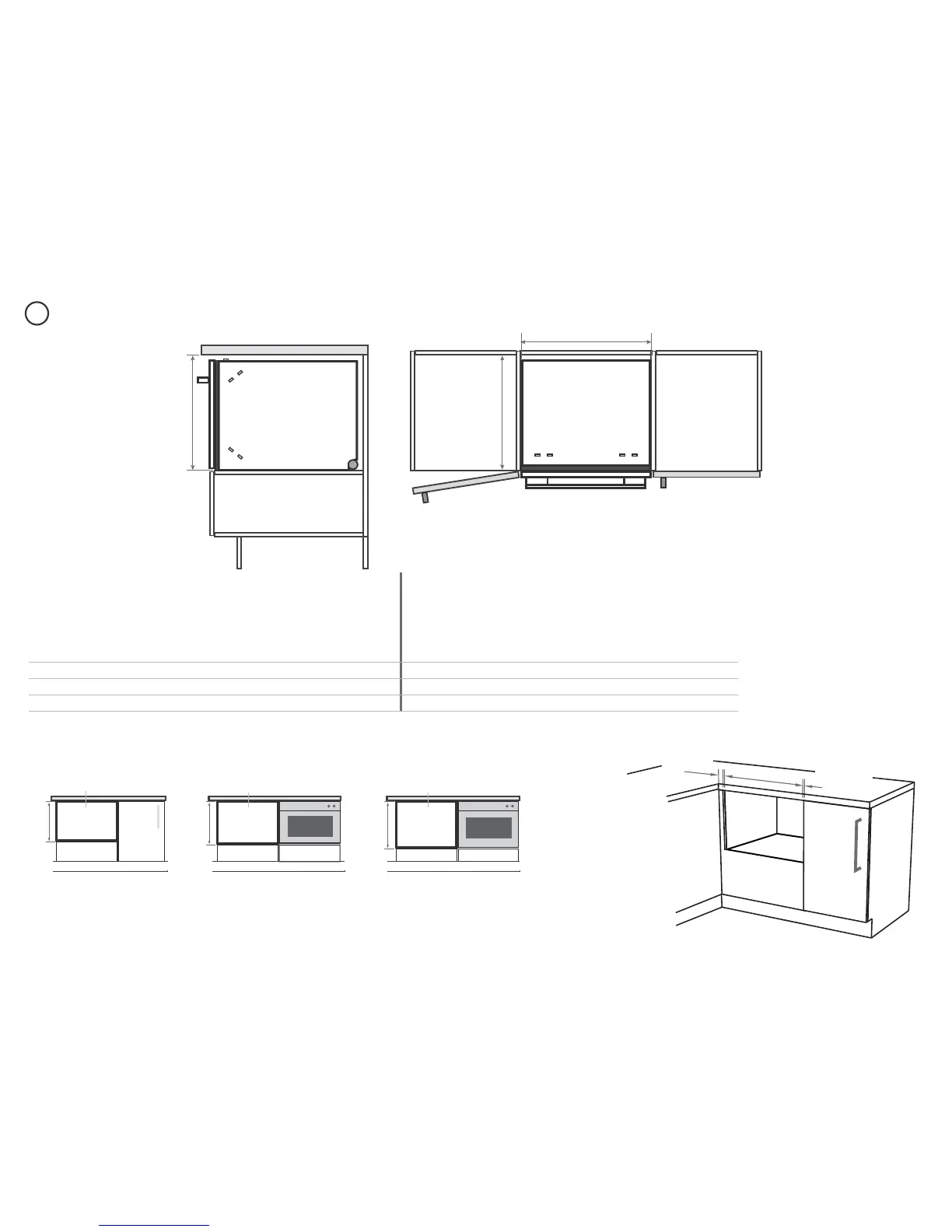

CABINETRY DIMENSIONS
min.
412mm
456mm 480mm
LL L
dishwasher dishwasher dishwasher
Standard height models
Tall height Classic models
Tall height Integrated models
Compact
Oven
Single
Oven
Tall height Designer models
Plan
Side
L
N
M
Cavity height options allow you to match dishwasher with your cabinetry or companion products
Minimum clearances from adjacent cabinetry
You may choose to install Tall height Integrated
models into either a 456 mm or a 480 mm high cavity.
Note: the minimum height of the custom drawer front
panel will also be different for these two options.
Cabinetry dimensions (mm)
STANDARD HEIGHT MODELS TALL HEIGHT MODELS
Classic
Designer
Integrated
Remote
control
Integrated
Badge
control
Classic
Designer
Integrated
Remote
control
456 mm cavity
Integrated
Badge
control
456 mm cavity
Integrated
Remote
control
480 mm cavity
Integrated
Badge
control
480 mm cavity
L
inside height of cavity min. 412 min. 412 min. 412 min. 412 456 480 456 456 480 480
M
inside width of cavity 600 600 600 600 600 600 600 600 600 600
N
inside depth of cavity min. 560 min. 560 min. 560 min. 560 min. 560 min. 560 min. 560 min. 560 min. 560 min. 560
min. 13 mm
clearance
from a corner
min. 2 mm
clearance
to adjacent
cupboard door

Fisher & Paykel DD60SCX7 Specifications

General

Brand	Fisher & Paykel
Model	DD60SCX7
Category	Dishwasher
Language	English
