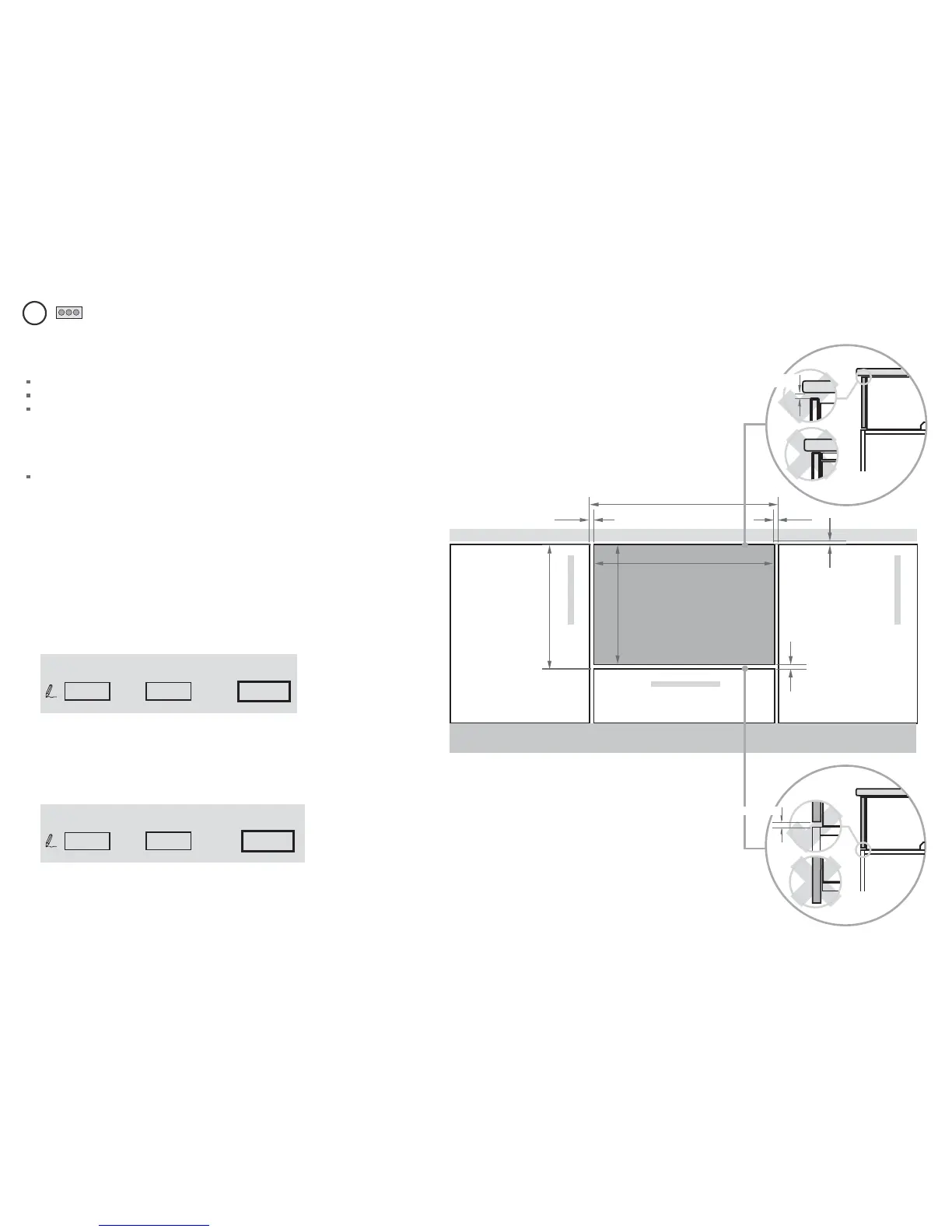

9
The following calculations assume the top of the panel is aligned
with the top of the adjacent cabinetry:
WIDTH OF THE PANEL
Measure
A (
the width between adjacent door/drawer fronts)
and write it in the rst box below, then complete the equation.
HEIGHT OF THE PANEL
Measure
B
and write it in the rst box below, then complete
the equation.
min. 2 mm
min. 2 mm
min. 8 mm ventilation gap
min. 8 mm ventilation gap
min. 2 mmmin. 2 mm
WIDTH OF PANEL
HEIGHT
OF PANEL
A
B
A
B
clearance to
adjacent cabinet
front (min. 2 mm)
ventilation gap
(min.8 mm)
WIDTH OF PANEL
(min. 596 mm)
HEIGHT OF PANEL
- 2x
-
=
=
FRONT PANEL SPECIFICATIONS
16 -20 mm panel thickness
Maximum weight of panel: 9 kg
Adequately sealed to withstand moisture (50
O
C @ 80% RH).
Because of it being a hot and wet environment generally, the
back and sides of the panel should be completely sealed with a
waterproof vapour barrier (ie polyurethane) to prevent damage
to the panel.
The back of the panel (including any integrated handle) should
be completely flush so that the seal between the panel and the
rubber trim is maintained.
6b
Note: when the top of the dishwasher has to be lower than the adjacent cabinetry,
the panel can be increased in height.
INTEGRATED MODELS WITH BADGE ONLY - CUSTOM FRONT PANEL CALCULATIONS
