WIRING DIAGRAM

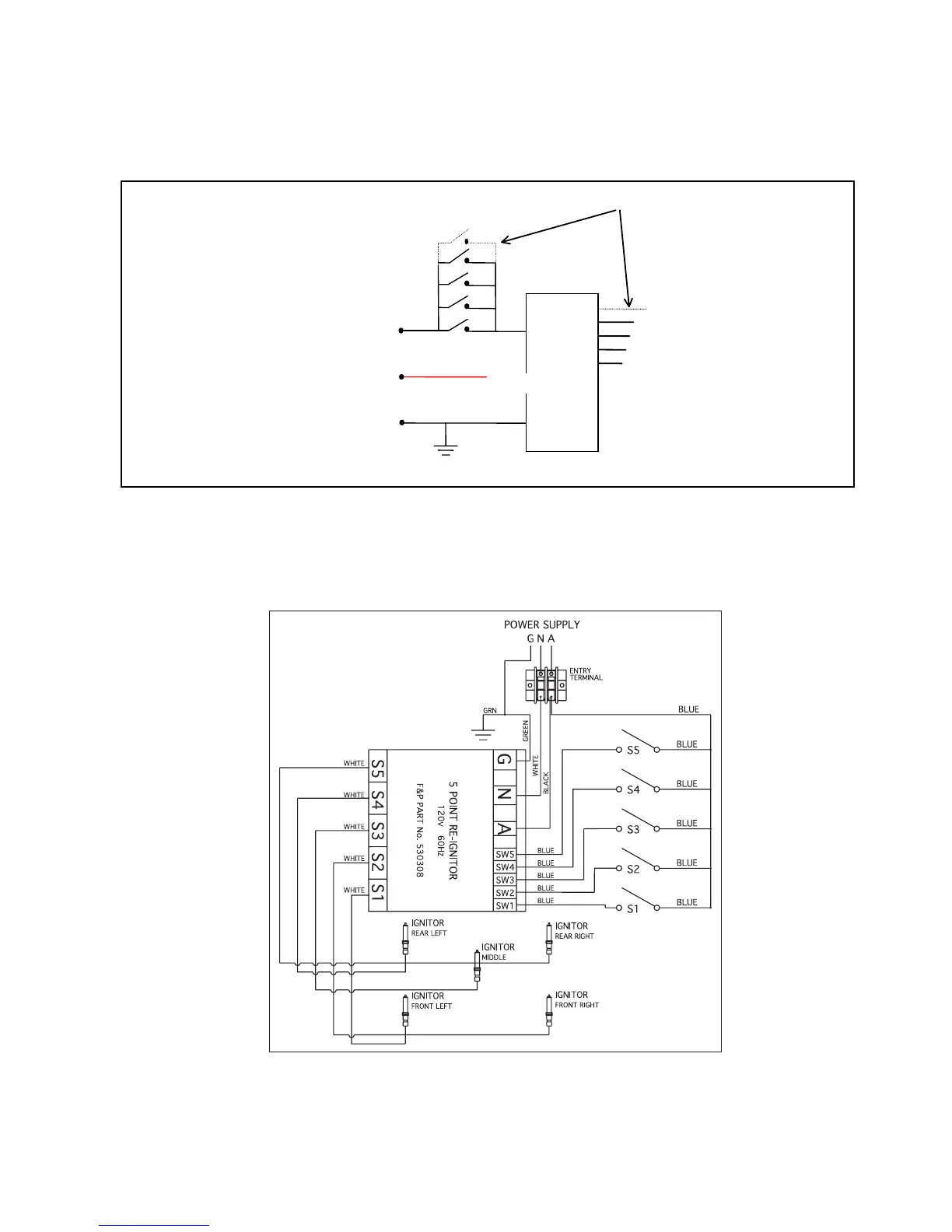

Schematic W
iring Diagram for GC600, GC900 & GC9002 Series Gas Cooktops Ignition
Circuit
IGNITION
BOX
220/240
V
0.5VA
P
N
E
DANGER - 240V
DISCONNECT
POWER BEFORE
SERVICING UNIT
TO
ELECTRODES
IGNITION
SWITCHES
GC900 SERIES ONLY
(5 BURNERS)
0.6V
A
Schematic W
iring Diagram for GC36 Gas Cooktops Ignition Circuit (USA
& Canada Only)
6
8
Table of Contents
Gas Cooktops
1
Specifications
4
Model Explanation
4
General Warning
6
Wiring Diagram
7
Replacement of Burner Orifice & Low Setting
8
Minimum Setting or Turn down
8
Removal of Cooktop from Bench/Countertop
11
Replacement & Servicing of Electronic Ignition
12
Gas Valves
