6
Installation instructions
Installation diagrams for illustration purposes only
2.5 mm
16-20 mm
L
Product and cabinetry dimensions (mm)
A overall height* of product 597
B overall width of product 595
C overall depth of product
(excluding handle and knobs) 567
D height of chassis 582
E width of chassis 556
F depth of chassis 545
G
depth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs)
22
H depth of oven door when fully open
(measured from front of control panel) 435
I minimum inside width of cavity 560
I
I
overall width of cavity 600
J inside height of cavity 585
J
I
overall height of cavity 600
K minimum inside depth of cavity 550
L flush fitting cabinetry clearance 22
Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the
cooktop as per the cooktop manufacturer’s instructions.
*All height measurements include mounted feet.
A
C
E
D
F
G
H
J
K
L
I
I
I
J
I
B
Single oven models

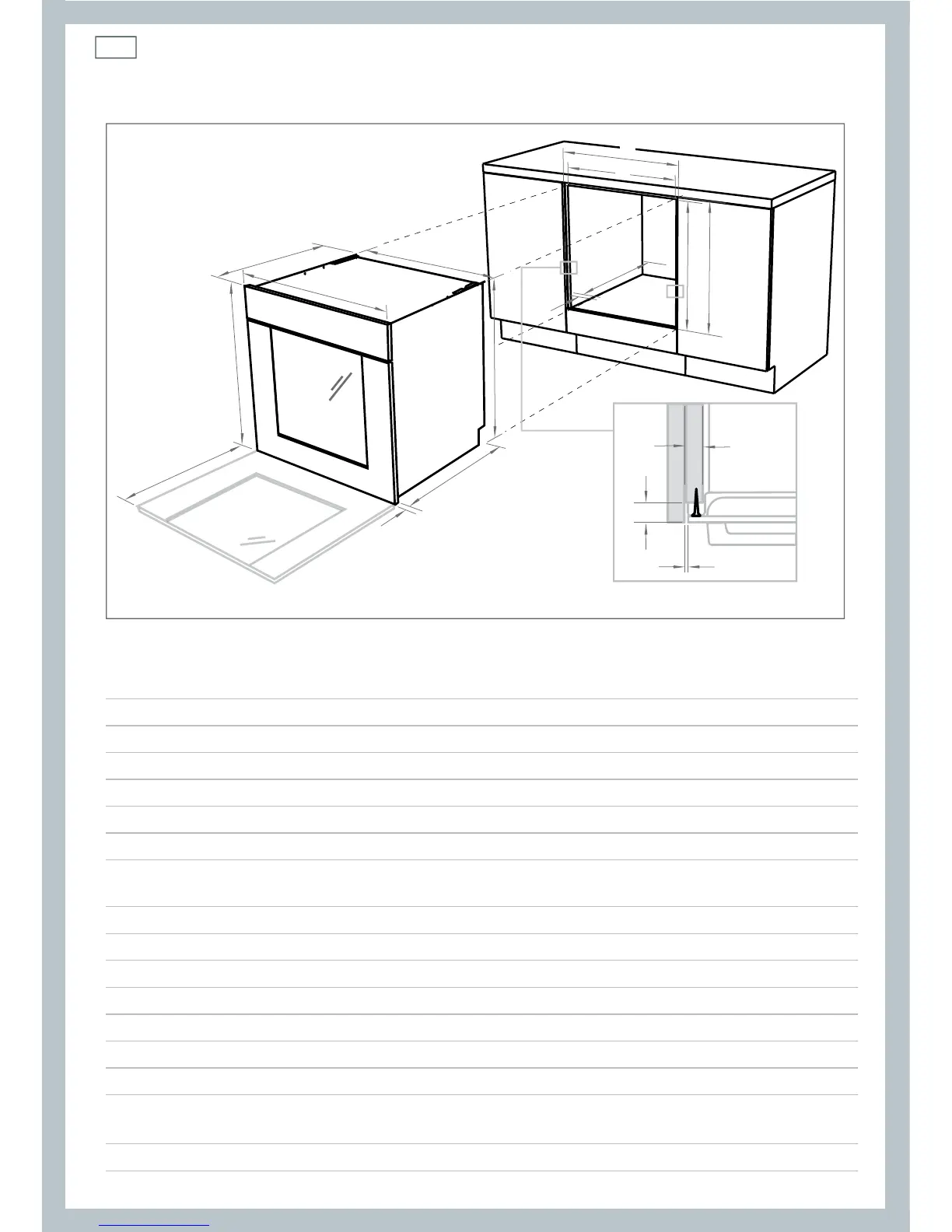

Fig. 2 Single product and cabinetry dimensions
