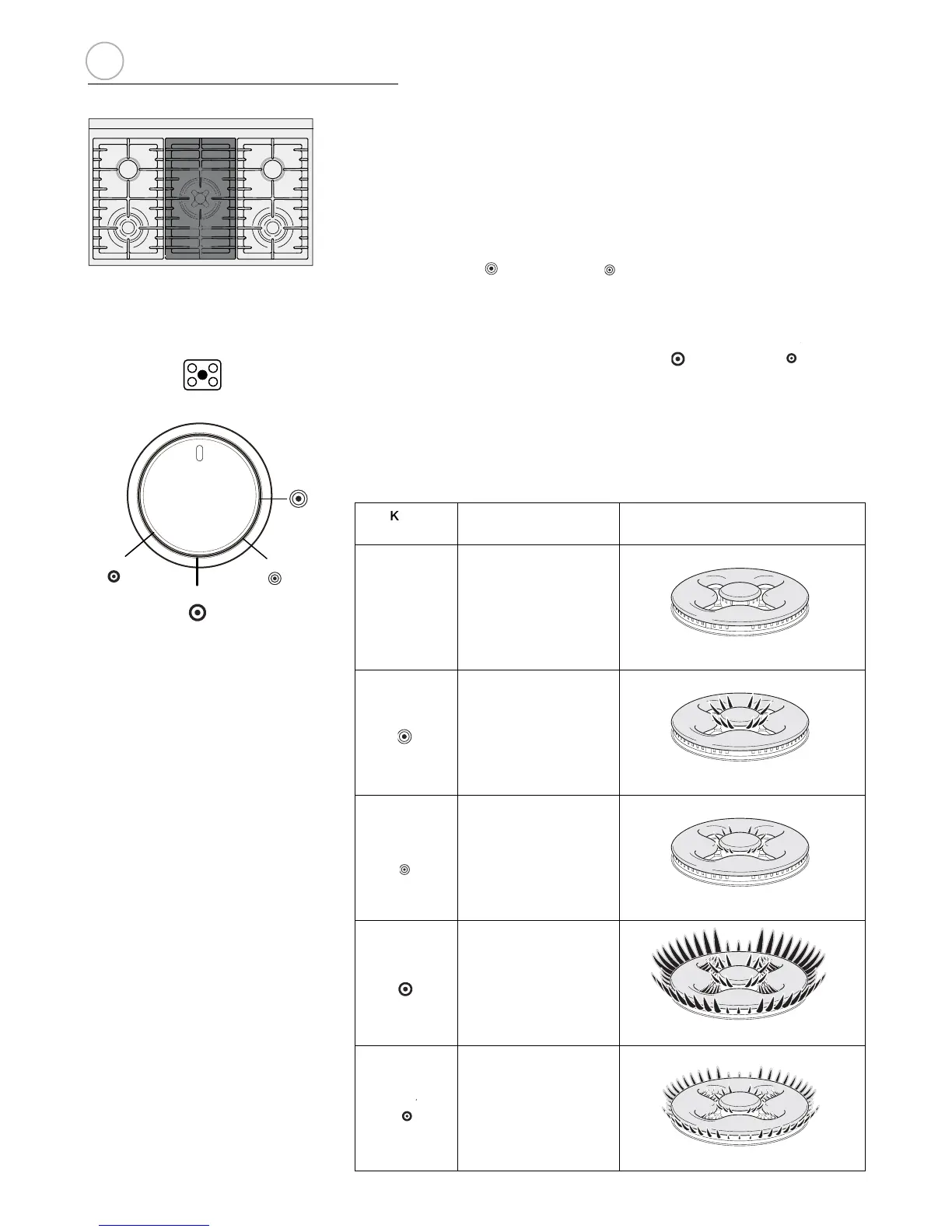

Fig. 2.3
b
Knob
position
Function DUAL burner
closed
valve
-
maximum rate
of inner crown
(only inner flame
at the maximum)
minimum rate
of inner crown
(only inner flame
at the minimum)
maximum rate of
inner + outer crowns
(inside and outside
flames in
simultaneously
at the maximum)
minimum rate of
inner + outer crowns
(inside and outside
flames in
simultaneously
at the minimum)
2
HI
HI
LO
SIM
GAS BURNERS (Dual)
The Dual Burner is a very flexible burner which allows different regulations and optimal
cooking.
It is composed by one inner and two outer crowns; the flame of the inner crown can be
regulated separately from the flames of the outer crowns.
The Dual Burner can be used:
- as a small burner (flame produced only by the inner crown) which can be adjusted
from the maximum
HI
to the minimum
IM
position. Intermediate operating adjust-
ments can be achieved by positioning the indicator between the maximum and
minimum opening positions, and never between the maximum opening and
OFF
position.
- as a high-power burner (all flames produced simultaneously by inner and outer
crowns) which can be adjusted from the maximum
to the minimum
LO
position.
Gas flow to the burners is adjusted by turning the knobs (illustrated in fig. 2.3) which
control the valves.
Turning the knob so that the symbols printed on itself point to the symbol printed on
the control panel achieves the following functions:
To change from using the inner crown only to using both the inner and outer crowns
together, press the control knob down before turning it. You have to do the same when
going from using both crowns to using just the inner crown.
HI
