10
Level d 02 last user warning wash cycle position
Level d 03 fault code of last fault (within the last 8 wash cycles)
Sometimes referred to as the detailed fault code. The fault data is output via the display. If 000 is
displayed then there has been no fault codes occur in the last 8 cycles.
DISPLAY CYCLE POSITION
00 Fill or idle
01 Agitation
02 Agitation
03 Agitation
04 Rinse
05 Deep rinse
06 Spin

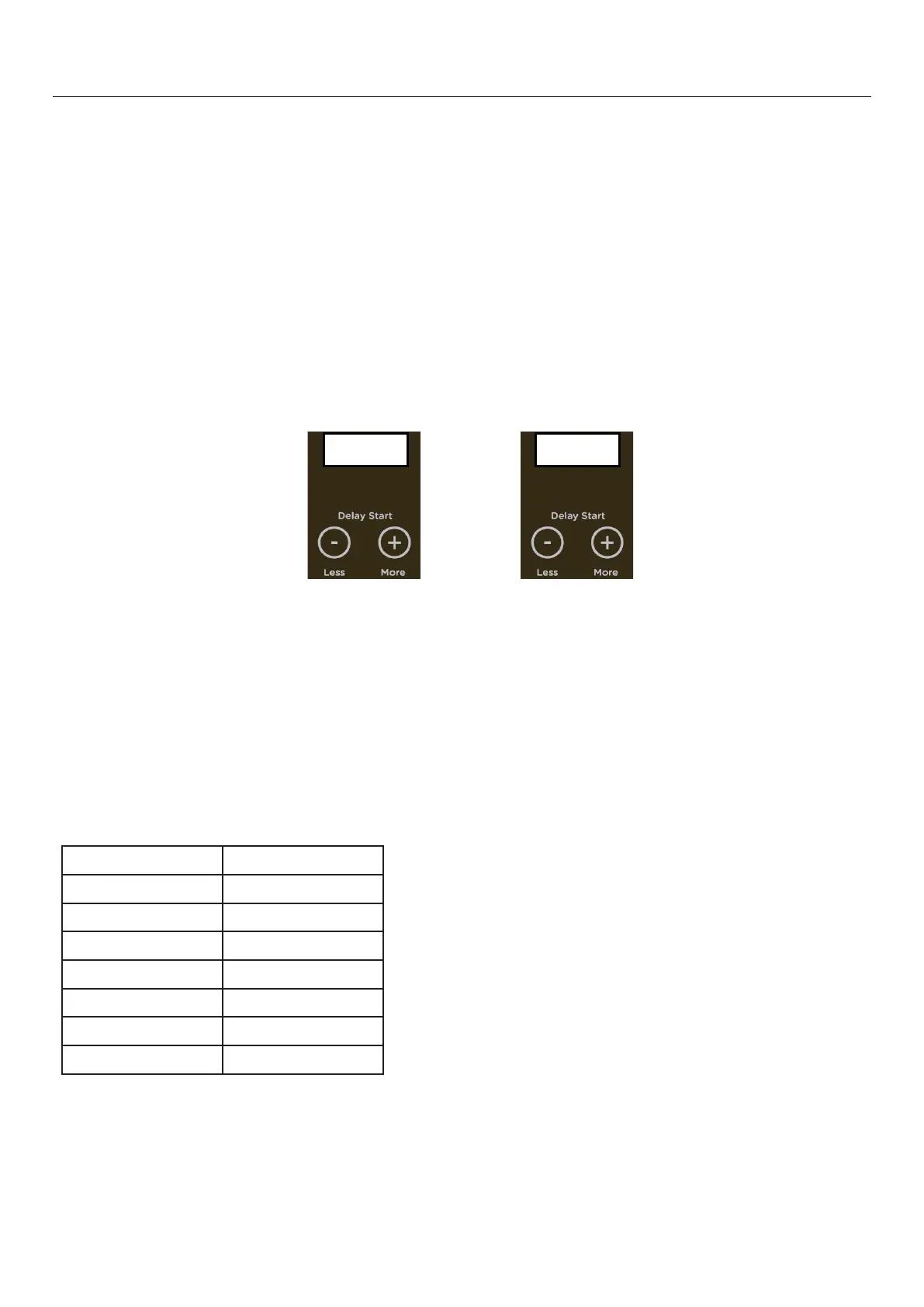

2 second later
Represent 100's, 10's & 1's Represent 10,000's &
1000's = 01,010 cycles
Level d 01 last user warning cycle count
The cycle count at which the last user warning occurred is displayed via the screen which will display the
100’s, 10’s & 1’s when all 3 segments are on and the 10,000’s & 1,000’s when only 2 segments are on with
the displayed output toggling between the 2 screens every 2 seconds.
E.g. For a cycle count of 1010 cycles
Level d 00 last user warning
The last user warning is displayed as a number in the LED display. Use the chart in this section to identify
the last user warning.
