7. With the shaft length and coil angle
properly adjusted, you should be able
to move into your “search” position (as
shown on page 3) by leaning forward
very slightly and raising your arm (still
straight) until the search coil is about 2
inches above the ground and 12 inches
in front of your foot. The search coil
should be parallel to the ground and
may have to be slightly readjusted at
this point.
3
SETTING UP
Padded Arm Rest
Hand Grip
Control Housing
Battery Access
Panel (in rear)
Search Coil Cable
Upper Stem
Lock Nut
Lower Stem
Search Coil Cable
Strain Relief
Derlin Bolt,
Nylon Wing Nut
8-inch Waterproof ESI
Sheilded Search Coil

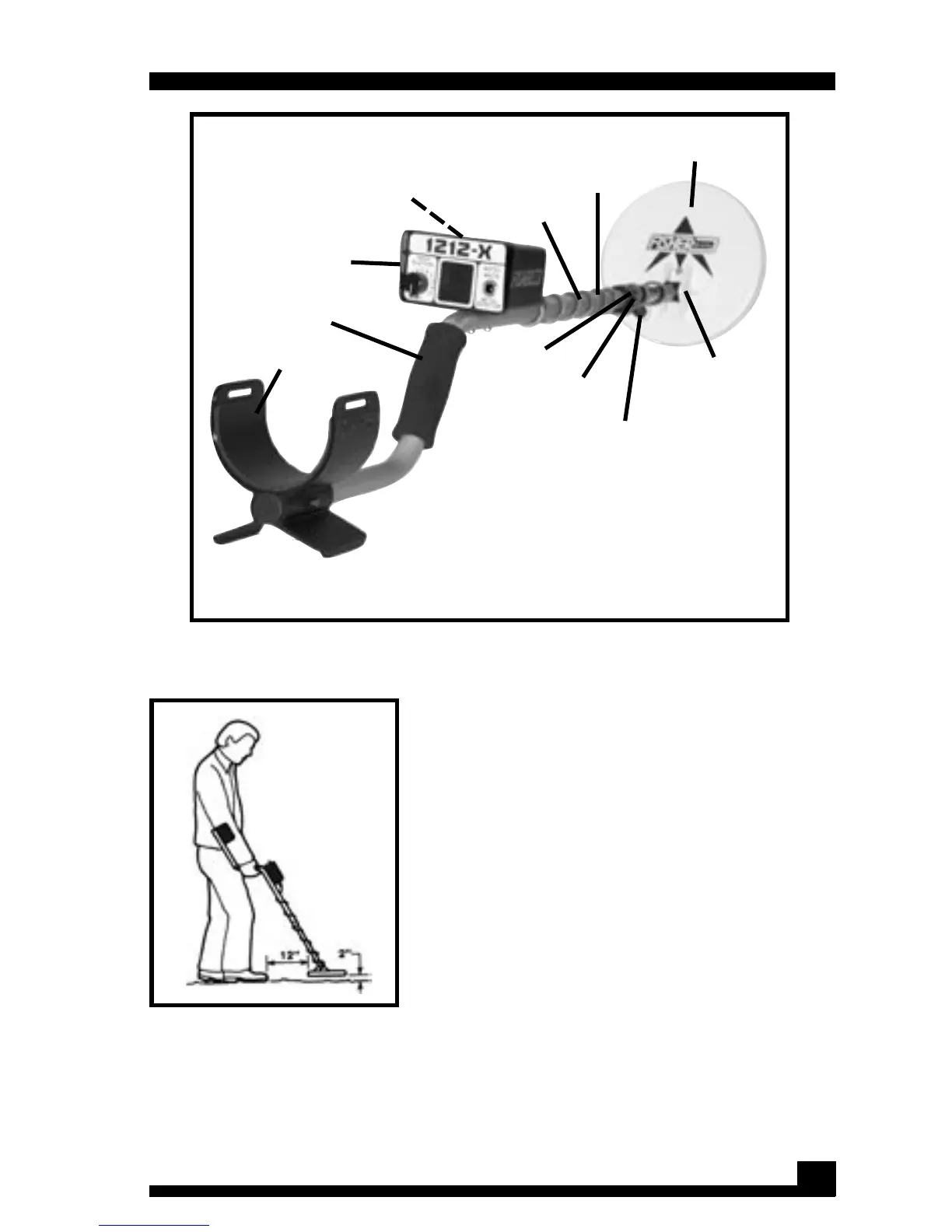

Figure 1. Fisher M-Scope 1212-X
Figure 2. Search Position
To Next Page
