Instruction Manual
D100397X012
ES Valve
July 2017
21

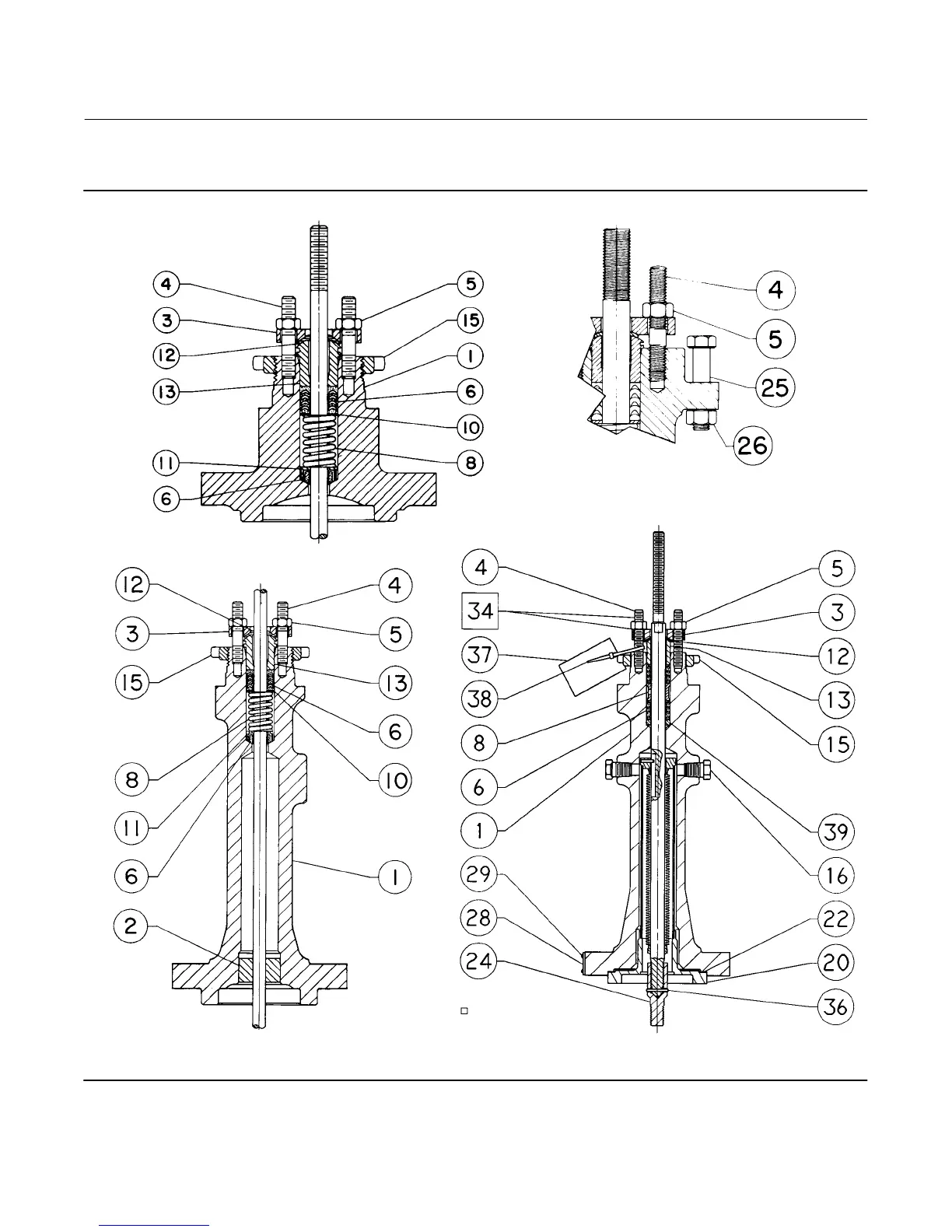

Figure 8. Typical Bonnets
APPLY LUB
30A9425‐A
CU3911‐D
42B3947‐A
ENVIRO‐SEAL
BELLOWS SEAL BONNET
STYLE 1 OR 2
EXTENSION BONNET
DETAIL OF 5‐INCH (127 mm) YOKE
BOSS ACTUATOR BOLTING
PLAIN BONNET
E0201
20
22
Table of Contents
Table of Contents
1
Introduction
1
Scope of Manual
1
Description
2
Specifications
2
Installation
2
Maintenance
4
Packing Lubrication
5
Packing Maintenance
6
Replacing Packing
6
Trim Maintenance
11
Disassembly
11
Lapping Metal Seats
13
Valve Plug Maintenance
13
Assembly
13
ENVIRO-SEAL Bellows Seal and Bonnet
14
Replacing a Plain or Extension Bonnet with an ENVIRO-SEAL Bellows Seal (Stem/Bellows Assembly) and Bonnet
14
Replacement of an Installed ENVIRO-SEAL Bellows Seal (Stem/Bellows Assembly)
16
Purging the ENVIRO-SEAL Bellows Seal Bonnet
17
Parts Ordering
17
Parts Kits
17
Parts List
19
D100397X012 July
21
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Fisher EAS easy-e and is the answer not in the manual?
