Fisher EAS easy-e User Manual

Instruction Manual
D100397X012
ES Valve
July 2017
7

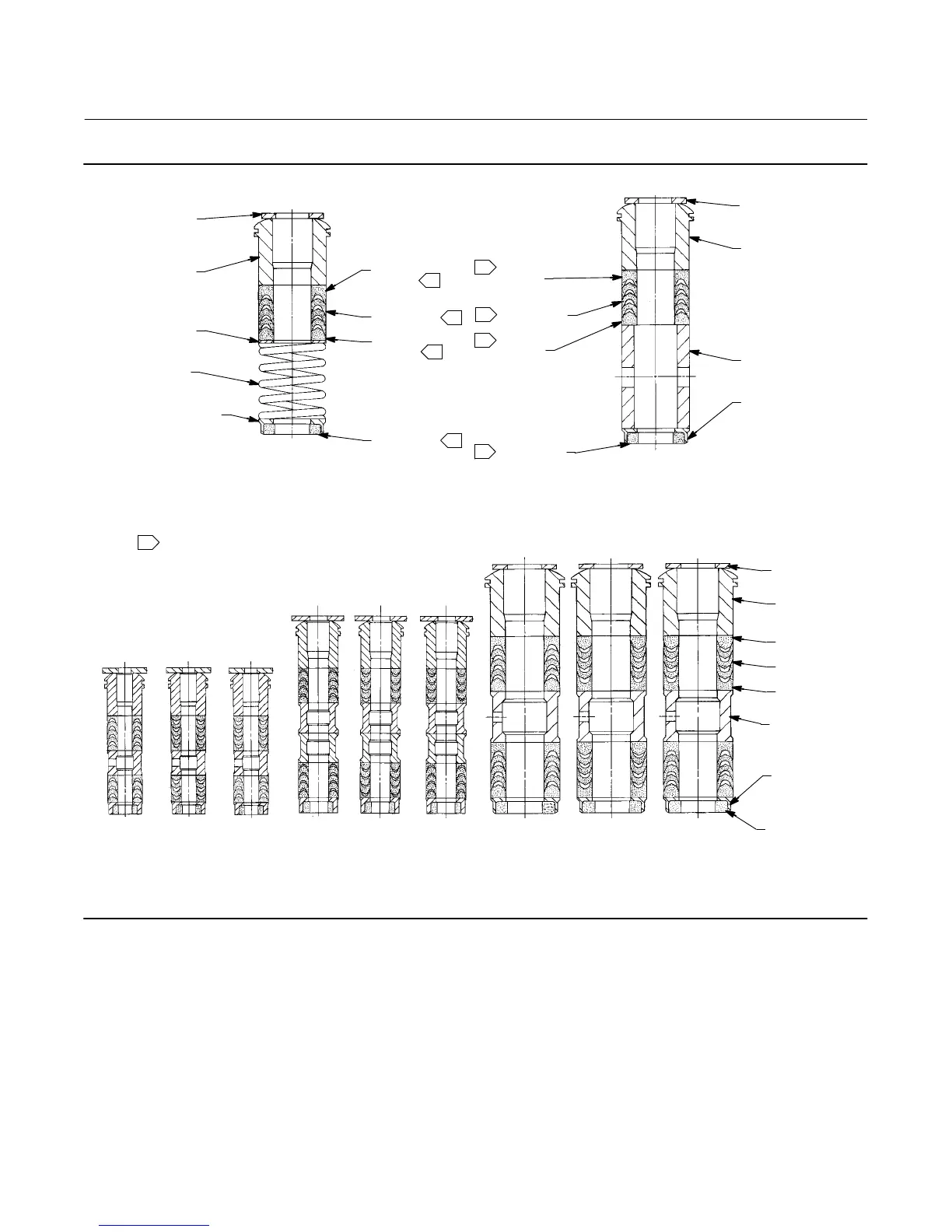

Figure 3. PTFE V‐Ring Packing Arrangements for Plain and Extension Bonnets
UPPER WIPER
(KEY 12)
PACKING
FOLLOWER
(KEY 13)
WASHER
(KEY 10)
SPRING
(KEY 8)
PACKING BOX
RING (KEY 11)
FEMALE
ADAPTOR
PACKING RING
MALE
ADAPTOR
LOWER WIPER
FEMALE
ADAPTOR
PACKING RING
MALE
ADAPTOR
LOWER WIPER
UPPER WIPER
(KEY 12)
PACKING
FOLLOWER
(KEY 13)
SPACER
(KEY 8)
PACKING BOX
RING (KEY 11)
1
1
FOR S31600 OR S17400
METAL PACKING BOX PARTS
FOR ALL OTHER METAL PACKING
BOX PART MATERIALS
SINGLE ARRANGEMENTS
NOTE:
PART OF PACKING SET (KEY 6) (SEE TABLE IN PARTS LIST).
12A7837−A
B2427
1
1
1
1
1
1
1
UPPER WIPER
(KEY 12)
PACKING
FOLLOWER
(KEY 13)
LANTERN RING
(KEY 8)
PACKING BOX
RING (KEY 11)
MALE ADAPTOR
(KEY 31)
PACKING RING
(KEY 7)
FEMALE ADAPTOR
(KEY 32)
LOWER WIPER
(KEY 30)
ASSEMBLY 1
(POSITIVE
PRESSURES)
ASSEMBLY 2
(VACUUM)
ASSEMBLY 3
(POSITIVE
PRESSURES
& VACUUM)
ASSEMBLY 1
(POSITIVE
PRESSURES)
ASSEMBLY 2
(VACUUM)
ASSEMBLY 3
(POSITIVE
PRESSURES
& VACUUM)
ASSEMBLY 1
(POSITIVE
PRESSURES)
ASSEMBLY 2
(VACUUM)
ASSEMBLY 3
(POSITIVE
PRESSURES
& VACUUM)
9.5 mm (3/8 INCH) STEM 12.7 mm (1/2 INCH) STEM
19.1, 25.4, or 31.8 mm
(3/4, 1, OR 1‐1/4 INCH) STEM
DOUBLE ARRANGEMENTS
12A8187-D 12A7814-D 12A7839-A
B1428‐3
