6 19
●

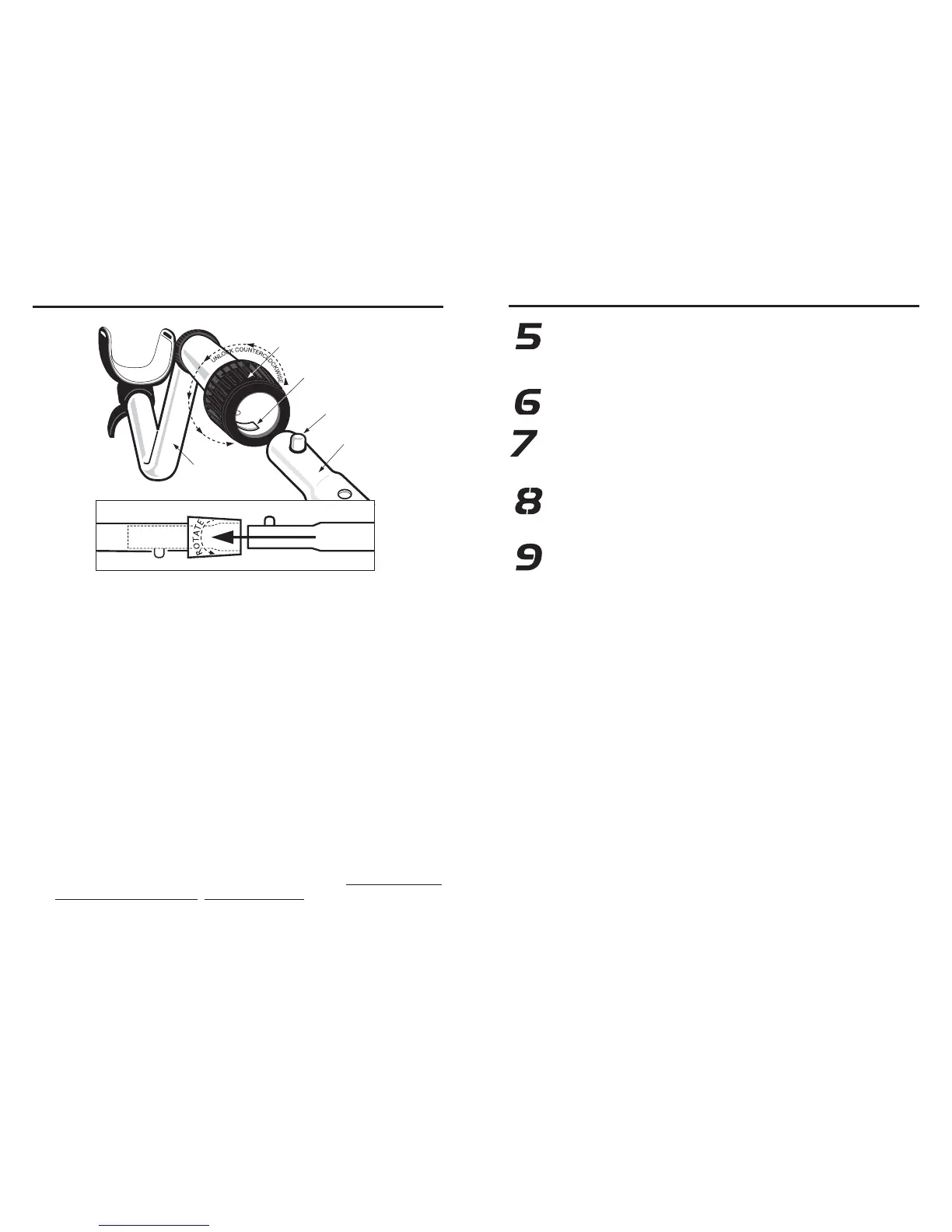

3 Position S-Rod upright.
●
4 Rotate the LOCKING COLLAR fully in the counterclockwise direction.
●
5 Insert your finger inside the tube and make sure the INTERNAL CAM LOCK
is flush with the inside of the tube.
●
6
Insert the MIDDLE STEM into the S-ROD, with the SILVER BUTTON pointed
upward.
●
7 Rotate the MIDDLE STEM until the SILVER BUTTON locates in the hole.
●
8 Twist the LOCKING COLLAR fully in the clockwise direction until it locks.
●
9 Repeat this process on the LOWER STEM.
●
10 Using the BOLT and KNURLED KNOB, attach the SEARCHCOIL to the
LOWER STEM.
●
11
Adjust the LOWER STEM to a length that lets you maintain a comfortable upright
posture with your arm relaxed at your side, and the SEARCHCOIL parallel to the
ground in front of you.
●
12
Wind the CABLE securely around the STEMS, leaving slack at the bottom.
●
13
Connect CABLE PLUG to housing.
Do not twist the Cable or Plug. Turn Locking Ring only. Use minimal finger
pressure to start the threads. Do not cross-thread. When the Locking Ring is
fully engaged over the threaded connector, give it a firm turn to make sure it is
very tight. When the Locking Ring is fully engaged over the threaded connector,
it may not cover all of the threads.
ASSEMBLY
(Continued)
●
4
●
5
●
6
●
6
●
7
DEPTH & TARGET DISPLAY
(Continued)
50-59. US. Zinc coins and
many non-U.S. coins of recent
vintage are classified here.
60-69. Copper coins, small
silver coins (U.S. dime)
70-79. Medium sized silver
coins (U.S. quarters)
80-89. Large silver coins (U.S.
half dollars).
90-99. Very Large silver coins
(U.S. silver dollar). When used in
areas outside the U.S., these
categories identify coins or metal
objects of high relative conductivity
(such as silver coins or relics), or
large objects made of any type of
metal.
Caution: The target indications are
visual references. Many other types
of metal can fall under any one of
these categories. While the detector
will eliminate or indicate the
presence of most common trash
items, it is impossible to accurately
classify ALL buried objects.
See Target-ID
Coin Reference Chart (Page 18).
