Installation
Page 46
• Wrap the connection point firmly with Teflon tape to
ensure a good seal and to prevent leaks.
• Remove the air filter and pour a small amount of
water into the drain pan to make sure that water
flows from the unit smoothly.

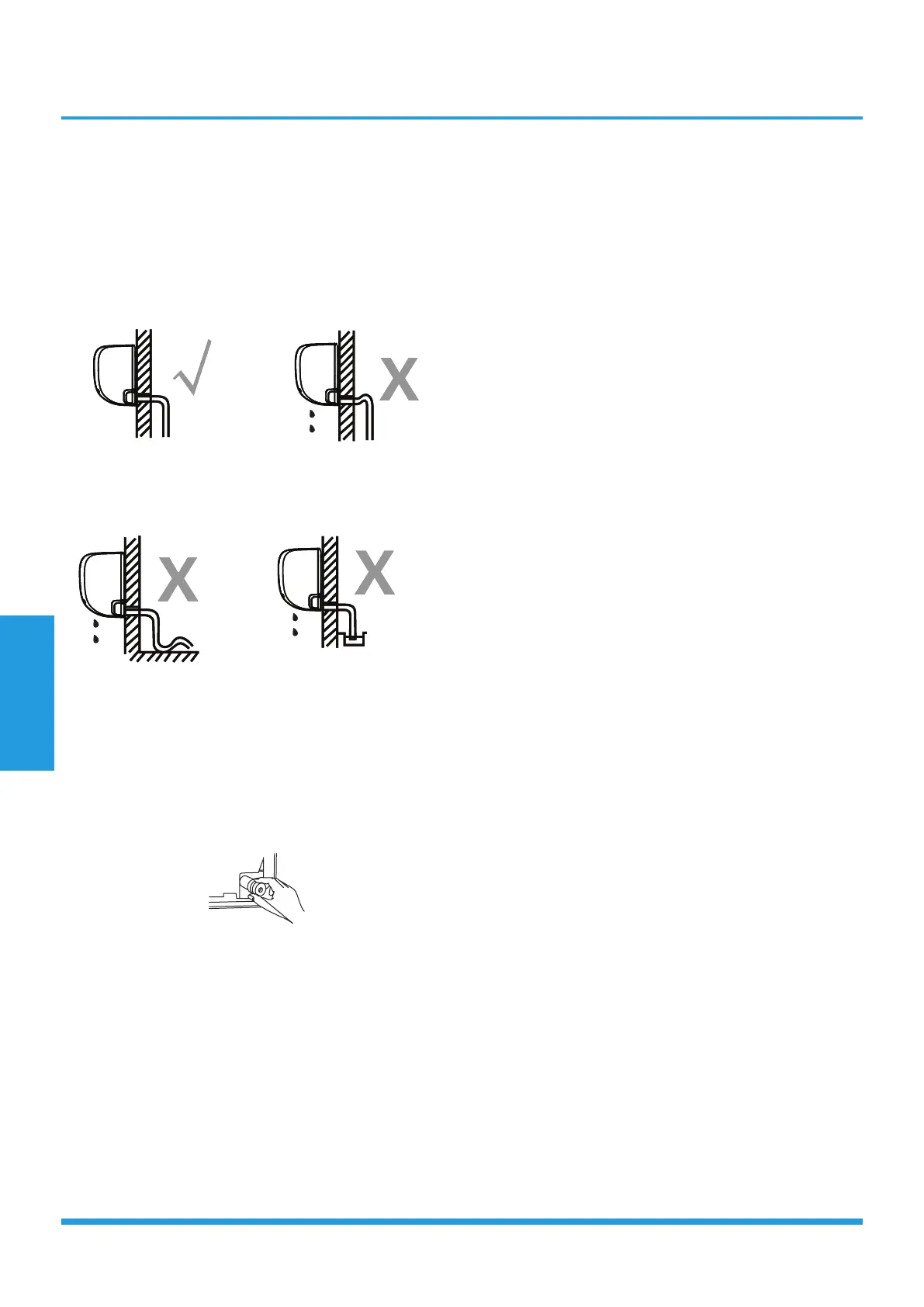

NOTE ON DRAIN HOSE PLACEMENT:
• Make sure to arrange the drain hose according to the
following figures.
CORRECT
Make sure there are no kinks
or dent in drain hose to ensure
proper drainage.
NOT CORRECT
Kinks in the drain hose
will create water traps.
NOT CORRECT
Do not place the end of the
drain hose in water or in
containers that collect water.
This will prevent proper
drainage.
NOT CORRECT
Kinks in the drain hose
will create water traps.
CORRECT
Make sure there are no kinks
or dent in drain hose to ensure
proper drainage.
NOT CORRECT
Kinks in the drain hose
will create water traps.
NOT CORRECT
Do not place the end of the
drain hose in water or in
containers that collect water.
This will prevent proper
drainage.
NOT CORRECT
Kinks in the drain hose
will create water traps.
PLUG THE UNUSED DRAIN HOLE
To prevent unwanted leaks you must plug the unused
drain hole with the rubber plug provided.
3.6 Connect signal and power cable
3.6.1 Before performing electrical work, read
these regulations
1. All wiring must comply with local and national electrical
codes, and must be installed by a licensed electrician.
2. All electrical connections must be made according to
the Electrical Connection Diagram located on the panels of
the indoor and outdoor units.
3. If there is a serious safety issue with the power supply,
stop work immediately. Explain your reasoning to the
client, and refuse to install the unit until the safety issue is
properly resolved.
4. Power voltage should be within 90-110% of rated
voltage. Insufficient power supply can cause malfunction,
electrical shock, or fire.
5. If connecting power to fixed wiring, install a surge
protector and main power switch with a capacity of 1.5
times the maximum current of the unit.
6. If connecting power to fixed wiring, a switch or circuit
breaker that disconnects all poles and has a contact
separation of at least 1/8in (3mm) must be incorporated
in the fixed wiring. The qualified technician must use an
approved circuit breaker or switch.
7. Only connect the unit to an individual branch circuit
outlet. Do not connect another appliance to that outlet.
8. Make sure to properly ground the air conditioner.
9. Every wire must be firmly connected. Loose wiring
can cause the terminal to overheat, resulting in product
malfunction and possible fire.
10. Do not let wires touch or rest against refrigerant
tubing, the compressor, or any moving parts within the
unit.
11. If the unit has an auxiliary electric heater, it must be
installed at least 1 meter (40in) away from any combustible
materials.
12. BEFORE PERFORMING ANY ELECTRICAL OR WIRING
WORK, TURN OFF THE MAIN POWER TO THE SYSTEM.
3.6.2 Connect signal and power cable
The signal cable enables communication between the
indoor and outdoor units. You must first choose the right
cable size before preparing it for connection.
Cable Types:
• Indoor Power Cable (if applicable): H05VV-F or
H05V2V2-F
• Outdoor Power Cable: H07RN-F
To Next Page
