Fisher GX - Page 33

Instruction Manual
D103175X012
GX Valve and Actuator
July 2017
33

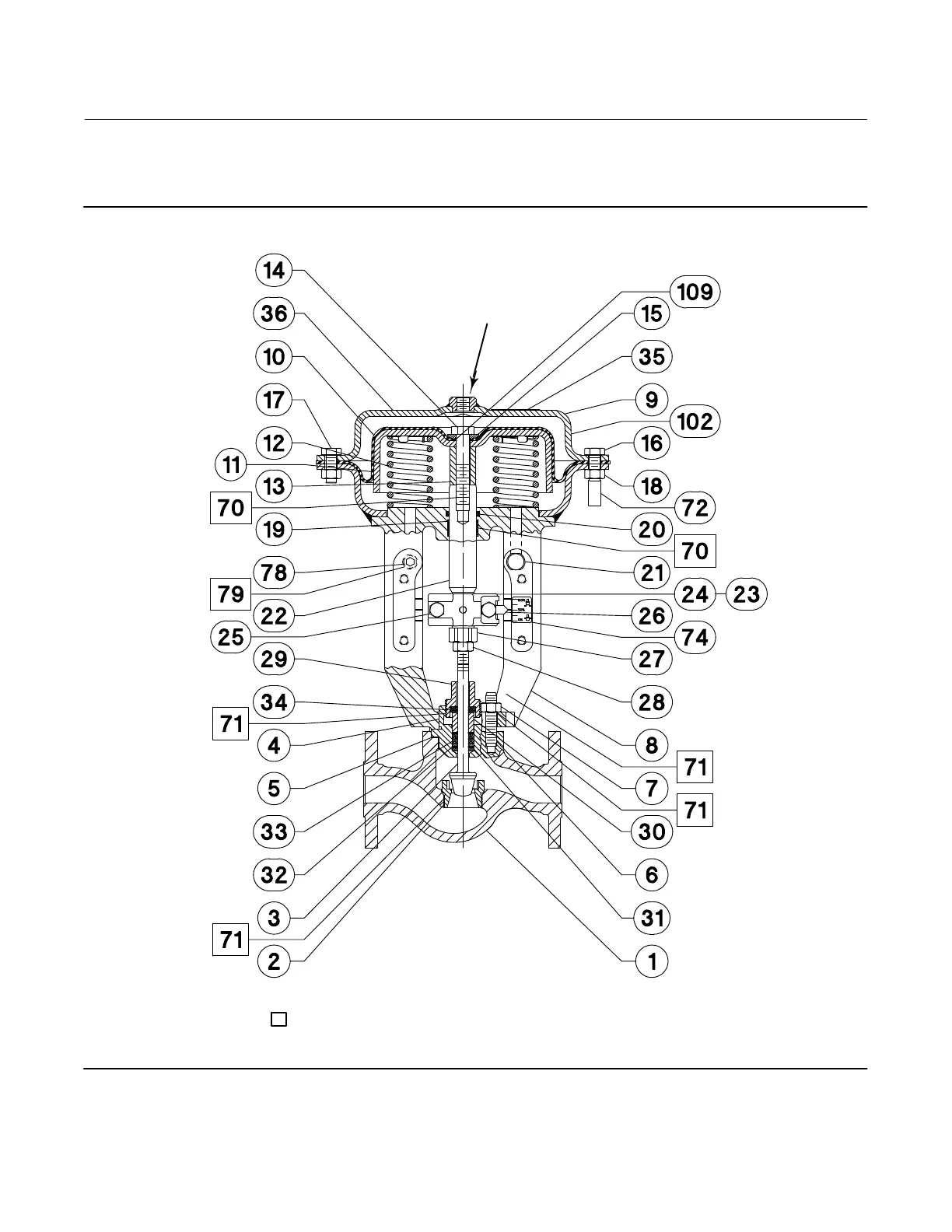

Figure 20. Fisher GX Control Valve and Actuator System Assembly, Air‐to‐Close (Spring‐to‐Open) (DN25 (NPS 1) with
Unbalanced Contoured Plug)
GE03515‐H
AIR SUPPLY
CONNECTION
APPLY LUBRICANT
