Fisher GX - Page 34

Instruction Manual
D103175X012
GX Valve and Actuator
July 2017
34

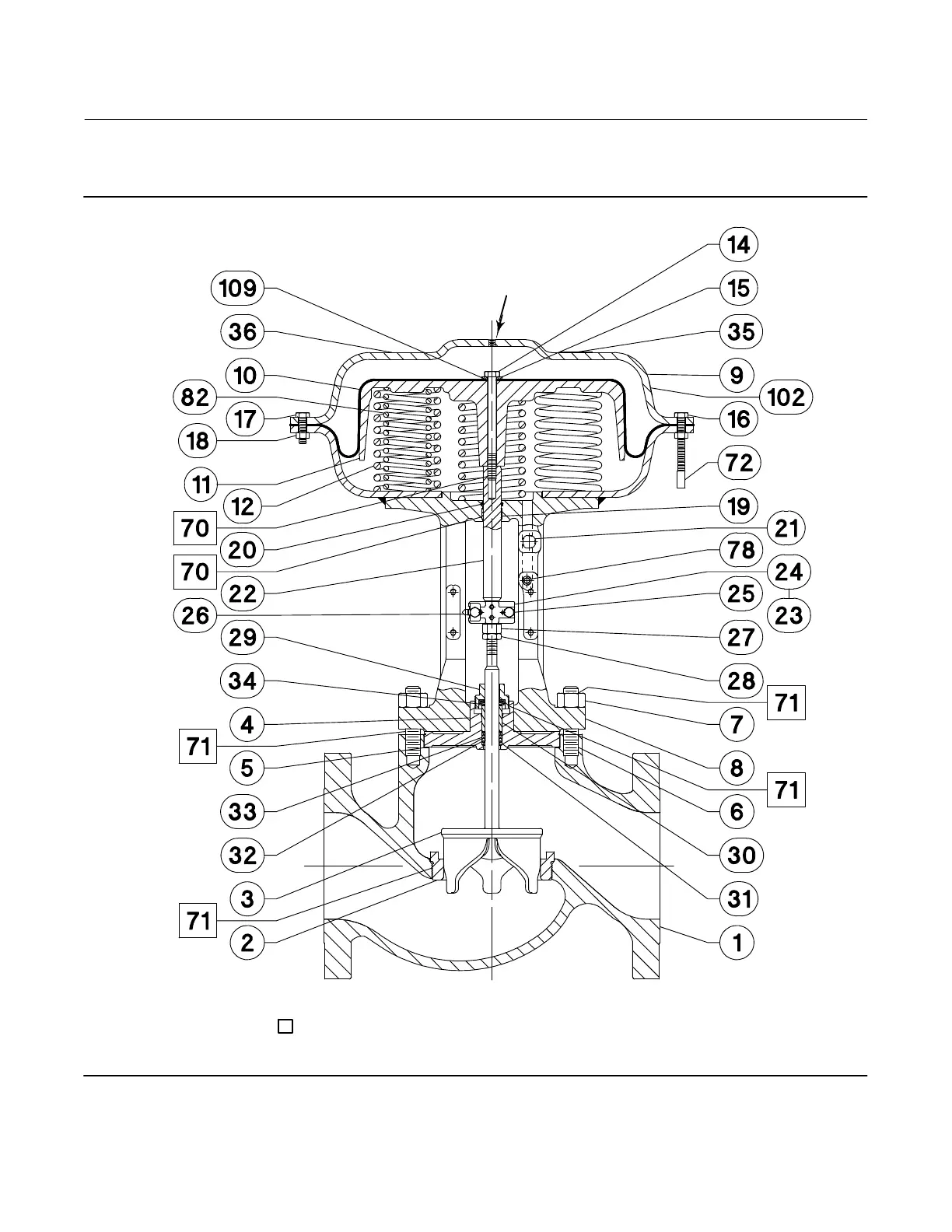

Figure 21. Fisher GX Control Valve and Actuator System Assembly, Air‐to‐Close (Spring‐to‐Open) (DN150 (NPS 6)
with Unbalanced Contoured Plug)
GE23239‐D
AIR SUPPLY
CONNECTION
APPLY LUBRICANT
