Fisher M-Scope CZ-20 QuickSilver User Manual

3
CONDENSED OPERATING INSTRUCTIONS
Factory Pre-Set “Turn-On-and-Go” Marks
Your CZ-20 QuickSilver is fairly simple to operate, especially
when compared to other target I.D. machines. Even so, we
strongly recommend that your read this entire manual. You’ll be
able to tune your CZ-20 to your specific needs and conditions. If
you have a good understanding of how to do it and why, you’ll
find more, but if you can’t wait any longer, and you’re an
experienced detector user, here’s some quick instructions to get
you going.
1. Set all the controls to the red “Turn-On-and-Go”
marks:
GROUND = 5
DISC = 4
SENSITIVITY = 3
VOLUME = 5
This puts you in a “coins-only” mode, and you’re ready
to start searching. Keep in mind that the GROUND
setting of “5” is probably not the optimum setting
for the ground you’re searching. The sensitivity level
Pre-set
Audio
Boost
mark at
“5”
Pre-set
SENSITIVITY
mark at “3”
Pre-set
DISCRIMINATION
mark at “4”
Pre-set
GROUND
mark at “5”

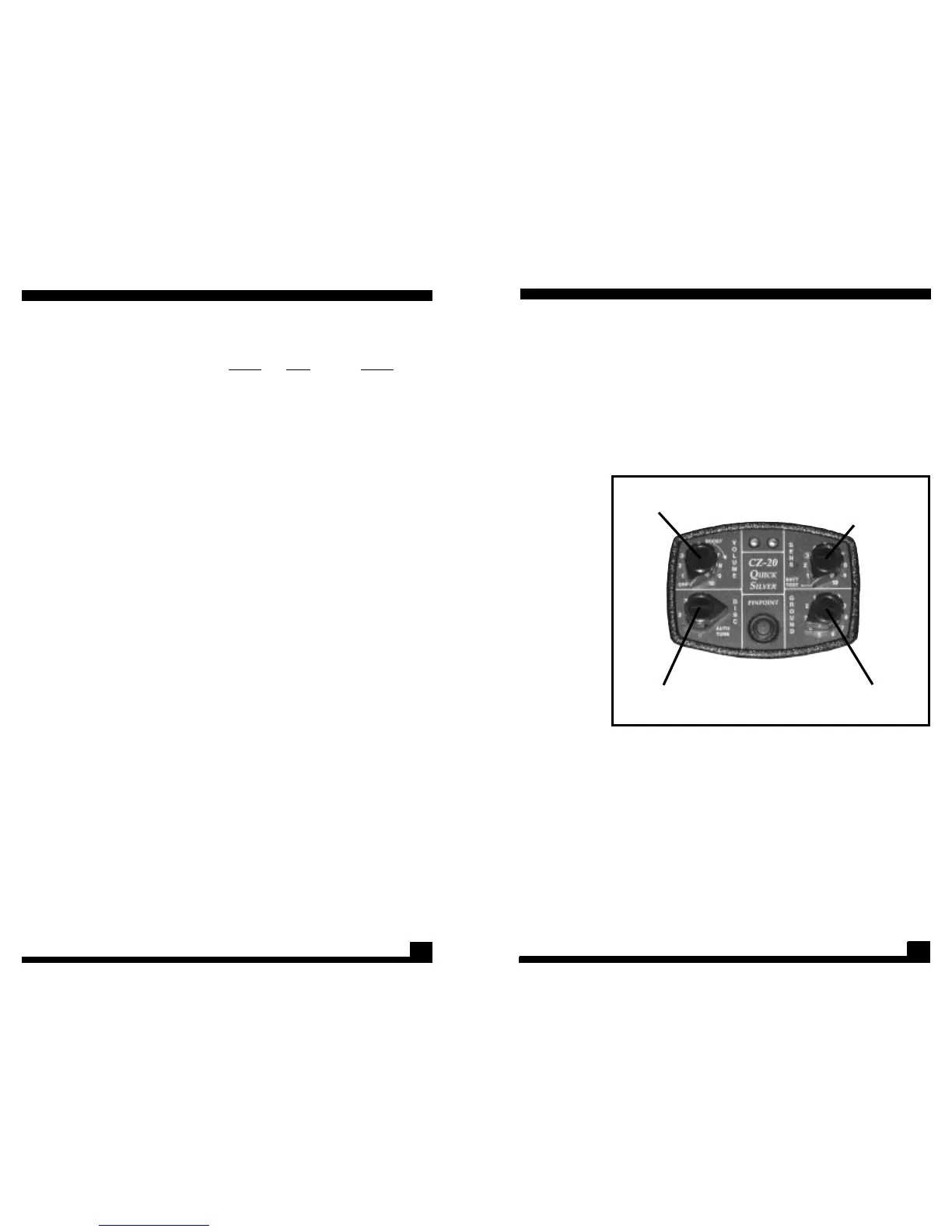

Figure 1.
Factory pre-set
turn-on-and-
go marks
(circled in red
on your CZ-20
control panel)
can get you
up and
running with
your CZ-20
immediately.
38
SPECIFICATIONS
Length ......................Extended......................................................50"
................................... Collapsed.....................................................30"
Weight
Complete (with headset)..............5 lb...11 oz. 6 lb...1 oz. 5.4 lb.
Handle and Search Coil ............. 2 lb...6.9 oz. 2 lb...12.9 oz. 2.1 lb.
Control Housing........................................................................ 2.8 lbs.
Frequency ............... 1. Dual, VLF Search 5 KHz and 15 KHz
................................... 2. Audio Target Response
Iron I.D...................... 200 Hz (Low tone)
Foil and Tab I.D. ...... 450 Hz (Mid tone)
Coin I.D. 1 KHz (High tone)
Autotune.................. 500 Hz - 1 KHz (VCO)
Pinpoint .................... 500 Hz - 1 KHz (VCO)
Operating Modes
1. Autotune.............. VLF-Motion, all-metal with threshold tone
2. Target I.D.............................................................VLF-Slow Motion,
............................................................... Silent Search Discrimination
3. Pinpoint ................................................VLF, All-Metal, No Motion
Search Coi............... Type .......................... Concentric, Co-Planar
................................... Diameter .................................... 8", 10.5" or 5"
................................... Shielding .............................................100% ESI
................................... Interchangeable........................................No
................................... Visual Target Response ............ Dual L.E.D.’s
Headset.................................................. Waterproof, Piezo Electric
Interchangeable ............................................................................No
Ground Balance ........................................ Pushbutton, Manual or
................................................................. “Preset” Control Markings
Hipmountable Control Housing ................................................... Yes
Salt Water/Fresh Water Operation............................................. Yes
Land Operation.............................................................................. Yes
Submersible ........................................................................to 250 feet
8" Coil 10.5" Coil 5"

Fisher M-Scope CZ-20 QuickSilver Specifications

General

Brand	Fisher
Model	M-Scope CZ-20 QuickSilver
Category	Metal Detector
Language	English
