CAUTION:
Do not over-tighten the barrel reservoir. It is only
necessary to make a loose connection to bring the
barrel reservoir ush. The retaining ring holds the barrel
reservoir in place.
TIP: It may be necessary to tap/click the
EXTEND(Retract) button to RETRACT(Extend)
and step on the foot pedal to bring the ears
completely ush to the retaining plate.
If you set the switch to RETRACT(Extend),
be sure it is set back to EXTEND(Retract)
before proceeding.

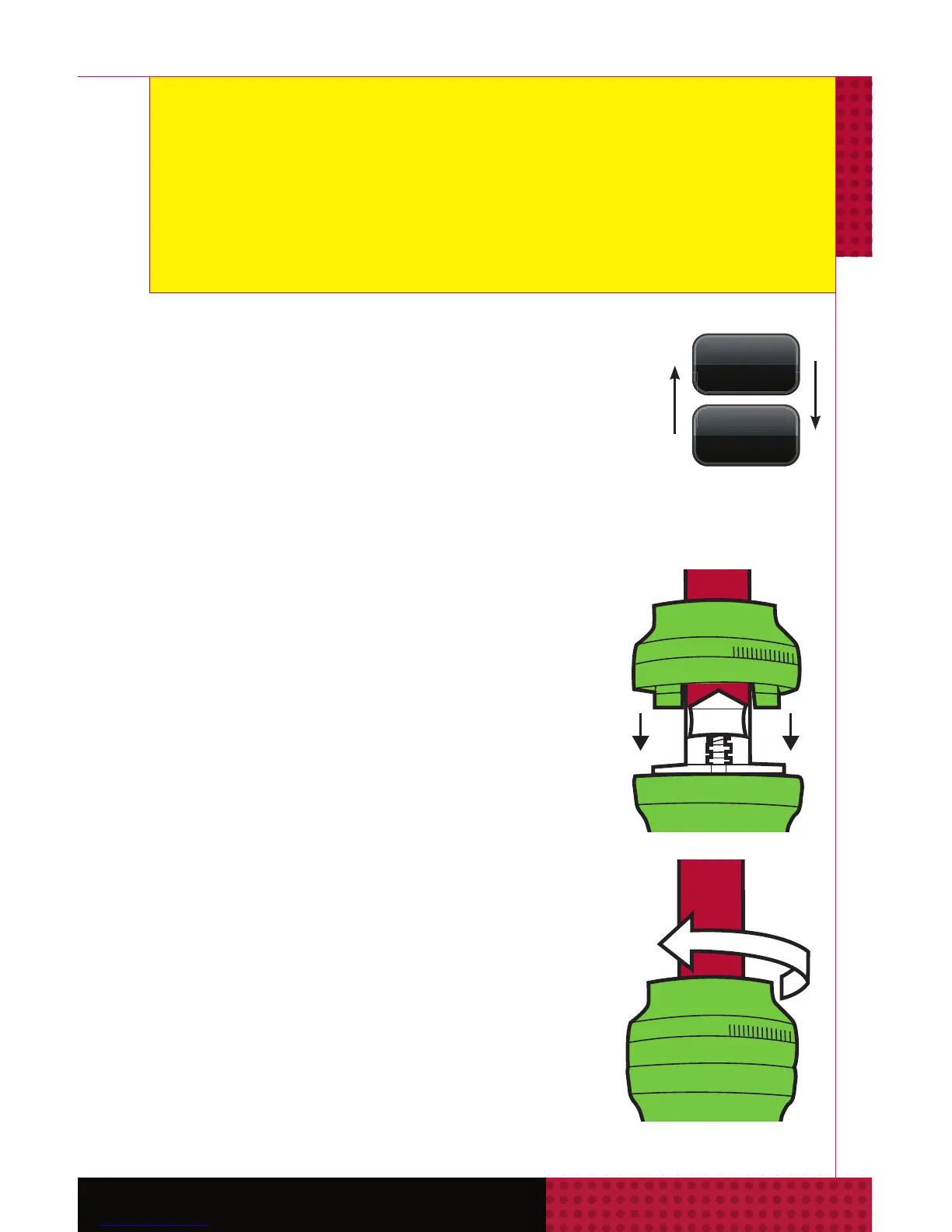

6.5 Slide the retaining ring cover
over the Genius
®
barrel reservoir
and align the legs with the open
slots of the adapter plate.
6.6 Rotate the retaining ring cover
in a clockwise direction until it
locks in place. The barrel reservoir
is now rmly connected to the
dispenser gun.
EXTEND
(Retract)
RETRACT
(Extend)
