6.0 Attach the Genius
®
Barrel
Reservoir to LDAV, MDAV
or SDAV Gun

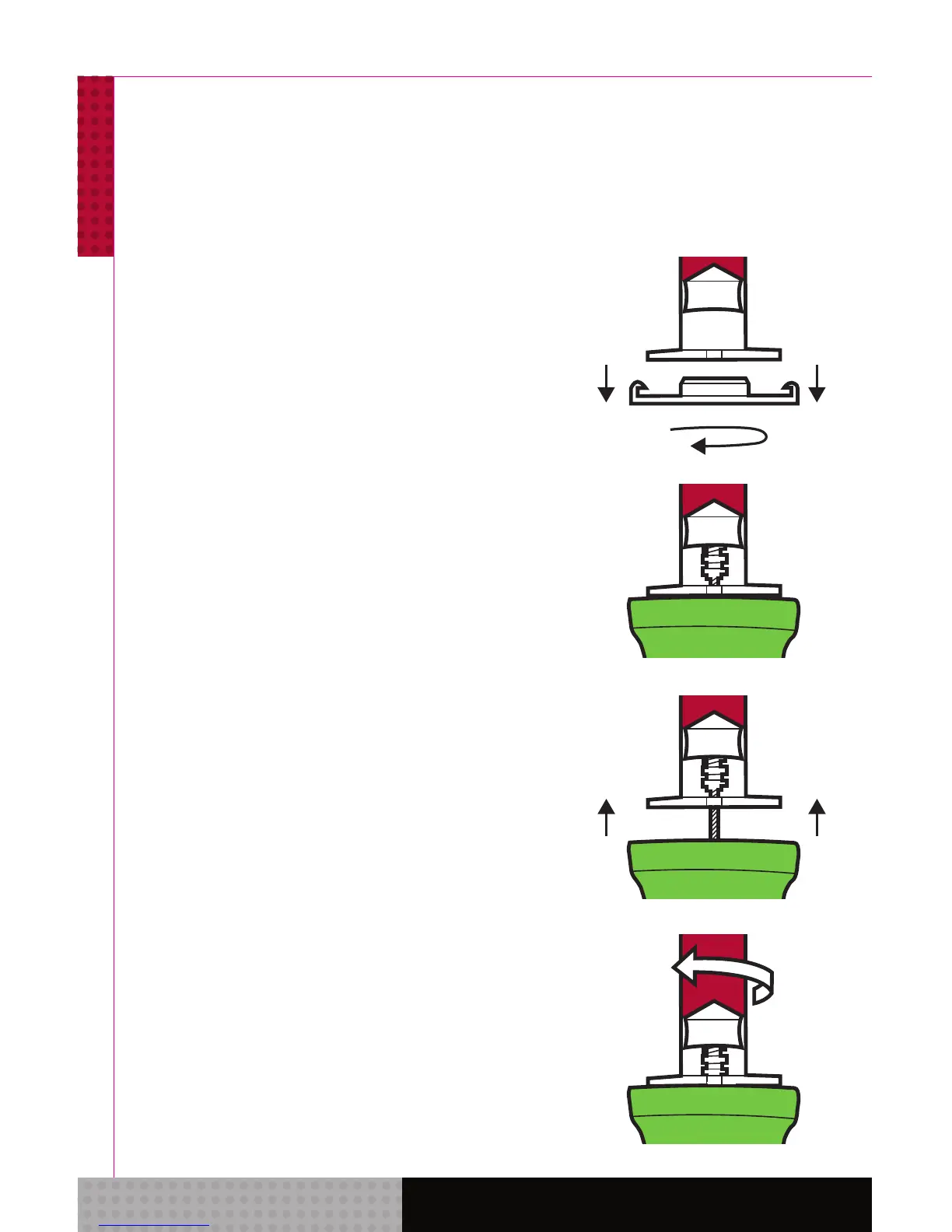

6.1 Remove the seal from the Genius
®
barrel reservoir pre-lled with
your assembly uid.
6.2 Holding the dispensing gun with the
piston hub pointed upward, place
the barrel reservoir over the piston
hub of the dispensing gun.
6.3 Holding both barrel reservoir and
dispense gun loosely, step on the
foot pedal until the barrel reservoir
ears are raised at least 1/4”
(6.35 mm) above the plate.
6.4 Manually twist the barrel reservoir
in a clockwise direction until the
luer lock connector is nger tight
and the ears of the barrel reservoir
are ush against the retaining
plate.
