Fishman Loudbox Performer User Manual

12

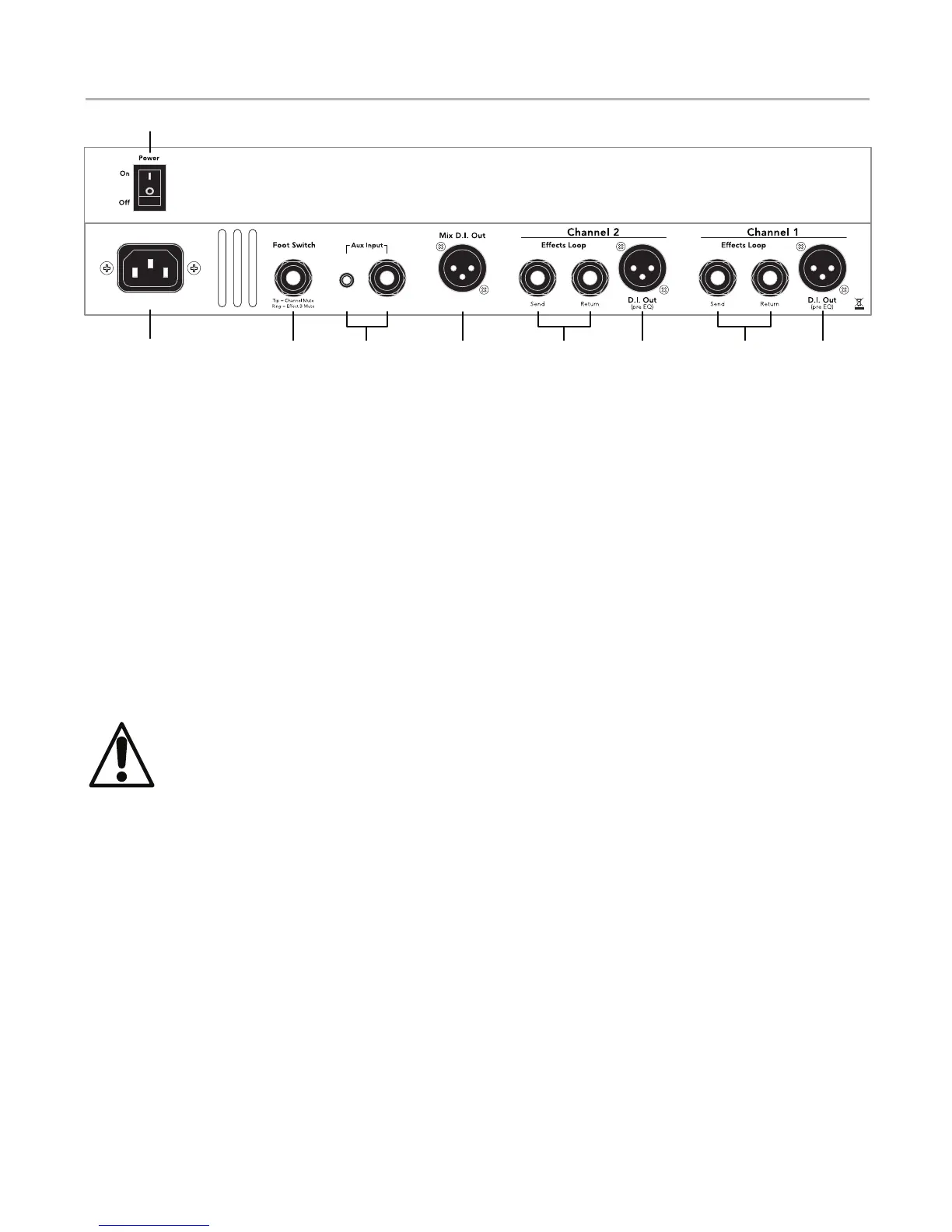

Rear Panel
1. Power switch
Lower the Master Volume before you turn on the amp. Flip the power switch to
the up position.
2. AC power
Operate the amplifier only at the voltage indicated on the rear panel.
For 120V amplifiers purchased in the USA, Canada and Mexico, plug in the
supplied detachable AC power cable.
For 100V and 230V amplifiers purchased outside the USA and Canada, you will
need to supply your own detachable AC cable. This cable must have an IEC-
style 320 connector at one end, and a male AC plug appropriate for your region
at the other.
Disconnect device is AC inlet or power switch.
3. Mute Foot Switch
Plug a Fishman dual foot switch into this jack for remote access to Channel Mute
and Effect B Mute.
4. Aux Input - 1/4” & 1/8”
Plug in a line level stereo audio source such as a CD or MP3 player in either
input. Both inputs may be used at the same time. They are stereo (TRS) inputs,
however the left and right signals are mixed to mono.
5. Mix D.I. (Post)
Plug in here when you wish to send signals from both Channel 1 and 2 to a
mixing console or a slave amplifier. This post-EQ output is always ground
isolated to prevent ground loop hum.
1
2
3 5 6 7 8 9
4

Fishman Loudbox Performer Specifications

General

Enclosure Material	Wood
Power Output	180 watts
Speaker Size	8" woofer and 1" tweeter
Channels	2
Effects	Reverb, Chorus, Flanger, Delay, Echo, Slap Echo
Inputs	2 x XLR-1/4" combo, 1 x 1/8" (aux)
Outputs	1 x 1/4" Line Out, 1 x XLR Direct Out
Phantom Power	Yes
Footswitch I/O	1 x 1/4" (for optional footswitch)
EQ	3-band EQ
