Fishman POCKER BLENDER User Manual

SUGGESTED INPUT OPTIONS
Internal Microphone and Pickup
• Pickup goes to tip, microphone goes to
ring.
• Pickup and microphone signals are routed
through a stereo instrument cable to the
input jack.
• Pickup signal goes through Transducer
Channel.
• Microphone signal goes through
Microphone Channel.
• 9-Volt phantom power on (switch pushed
in).
Pickup Alone
• Single pickup is sent through a mono
instrument cable to the input jack.
• The signal goes through the transducer
channel.
• Turn the 9-Volt phantom power off (switch
pushed out) to save battery life.
Mini-Microphone Alone
• Microphone goes through a mono
instrument cable to the ring jack of a
Stereo "Y" cable (p/n ACC-BLE- CBY).
The signal goes to the microphone
channel.
• Turn the 9-Volt phantom power on (switch
is in).
Pocket Blender
11
Pocket Blender
volume volume
trim trim
phase phase mutehi lo
bass bass volumetreble treble
battery
low
POCKET BLENDER
input
microphone - ring
transducer - tip
phantom
power
ground
lift
9V
effects loop
send
microphone
Made in the USA
transducer
return send return
output
AC ADAPTERS
FISHMAN 910-R,
ROLAND PSA SERIES
STEREO CABLE
MONO CABLE
MONO CABLE
volume volume
trim trim
phase phase mutehi lo
bass bass volumetreble treble
battery
low
POCKET BLENDER
input
microphone - ring
transducer - tip
phantom
power
ground
lift
9V
effects loop
send
microphone
Made in the USA
transducer
return send return
output
AC ADAPTERS
FISHMAN 910-R,
ROLAND PSA SERIES
volume volume
trim trim
phase phase mutehi lo
bass bass volumetreble treble
battery
low
POCKET BLENDER
input
microphone - ring
transducer - tip
phantom
power
ground
lift
9V
effects loop
send
microphone
Made in the USA
transducer
return send return
output
AC ADAPTERS
FISHMAN 910-R,
ROLAND PSA SERIES
STEREO Y CABLE
TIP
RING
input
microphone - ring
transducer - tip
phantom
power
ground
lift
9V
effects loop
send
microphone
Made in the USA
transducer
return send return
output
AC ADAPTERS
FISHMAN 910-R,
ROLAND PSA SERIES
input
microphone - ring
transducer - tip
phantom
power
ground
lift
9V
effects loop
send
microphone
Made in the USA
transducer
return send return
output
AC ADAPTERS
FISHMAN 910-R,
ROLAND PSA SERIES
MONO CABLE
MONO CABLE
STEREO CABLE
STEREO Y CABLE
10

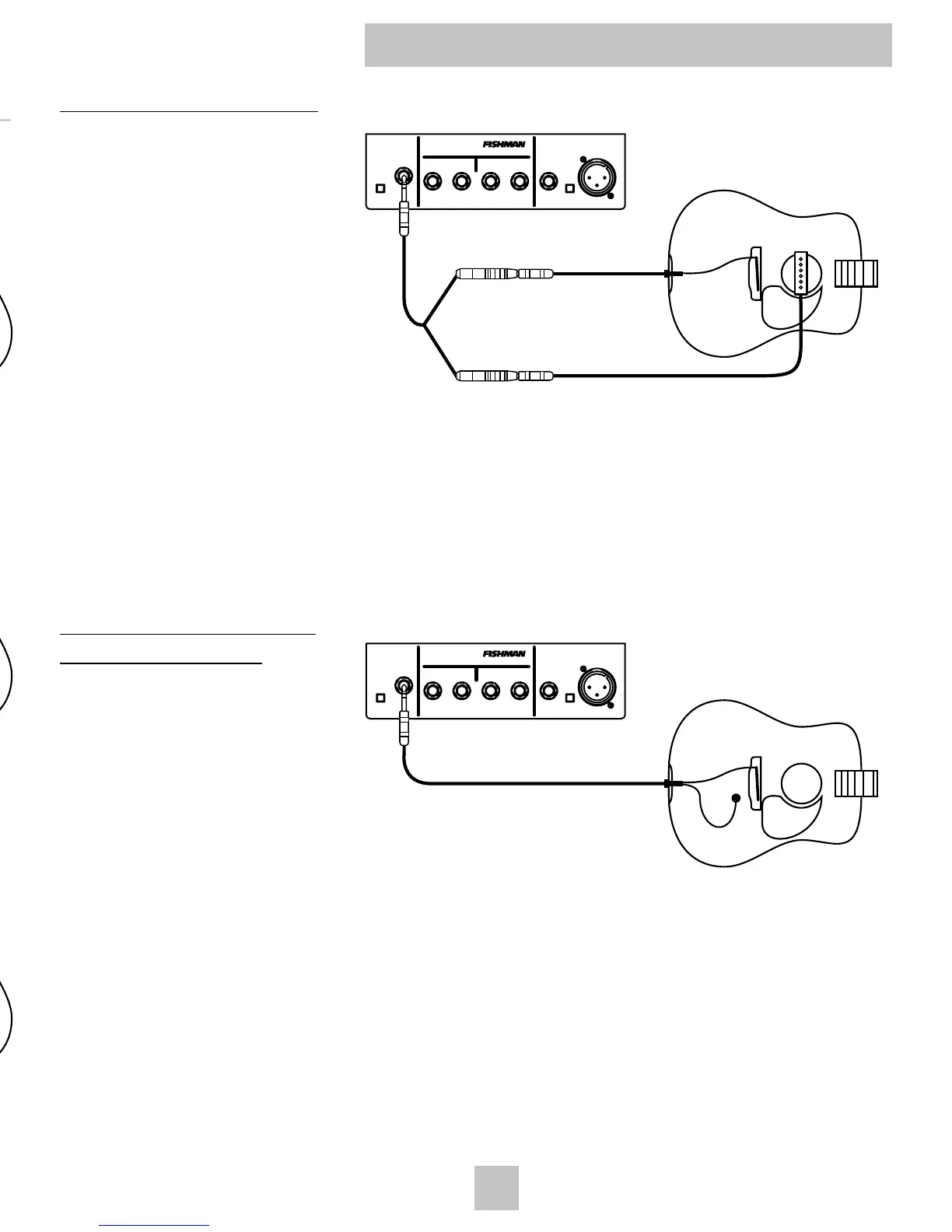

Piezo and Magnetic Pickup
• Signal from piezo is routed
through a mono instrument
cable to the tip jack of a Stereo
"Y" cable (p/n ACC-BLE-CBY).
This signal goes to the
transducer channel.
• Signal from magnetic pickup is
sent through a mono instrument
cable to the ring jack of a Stereo
"Y" cable (p/n ACC-BLE-CBY).
This signal goes to the
microphone channel
• 9-Volt phantom power is off
(switch is out).
Note: Both signals may be routed
through a stereo instrument cable.
Under-saddle and Surface-
mount Piezo Pickups
• Signals from both pickups are
sent through a stereo instrument
cable to the input jack.
• Under-saddle pickup signal (tip)
is routed to the Transducer
Channel.
• Surface-mount pickup (ring) is
routed to the Microphone
Channel.
• 9-Volt phantom power is off
(switch pushed out).
Note: Both signals may be routed
through two mono instrument cables
and a stereo "Y" cable (p/n ACC-
BLE-CBY).
