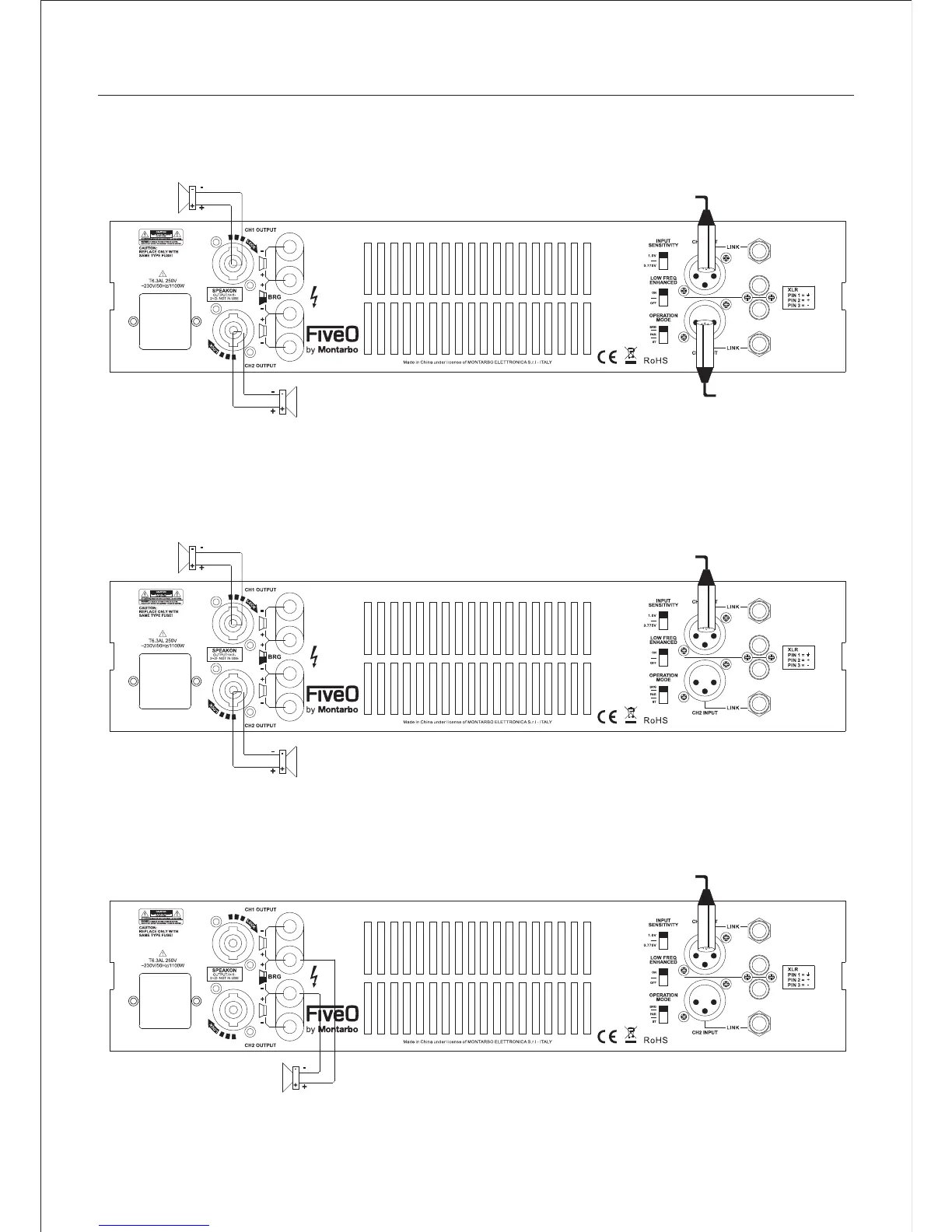

stereo mode
parallel mode
bridge mode
In this mode, after connecting two SPEAKON cables to the speakers, connect the sound source (such
as mixer, CD player, etc.) output to both amplifier input channels. Finally set the mode at “STEREO”
and adjust both channels volume knobs to a suitable position.
In this mode, after connecting two SPEAKON cables to the speakers,connect the sound source (such
as mixer,CD player,etc.) output to both amplifier channels input.Finally set the mode at “PARALLEL”,
and adjust both channels volume knobs to a suitable position.
In this mode,after connecting one cable from binding posts to the speakers, connect the sound source
(such as mixer,CD player,etc.)output to amplifier CH1 input. Finally set the mode at “BRIDGE”, and
adjust CH1 volume knob to a suitable position.
8
CH1 IN
CH1 IN
CH1 IN
CH2 IN
Professional Audio Equipment
Stereo mode/parallel mode/ bridge mode
