FiveO LIBRA 600 - LIBRA Series Rear Panel Function Description

5
15
16
14 15
16
Professional Audio Equipment
~230V/50Hz/3200W
T15AL 250V

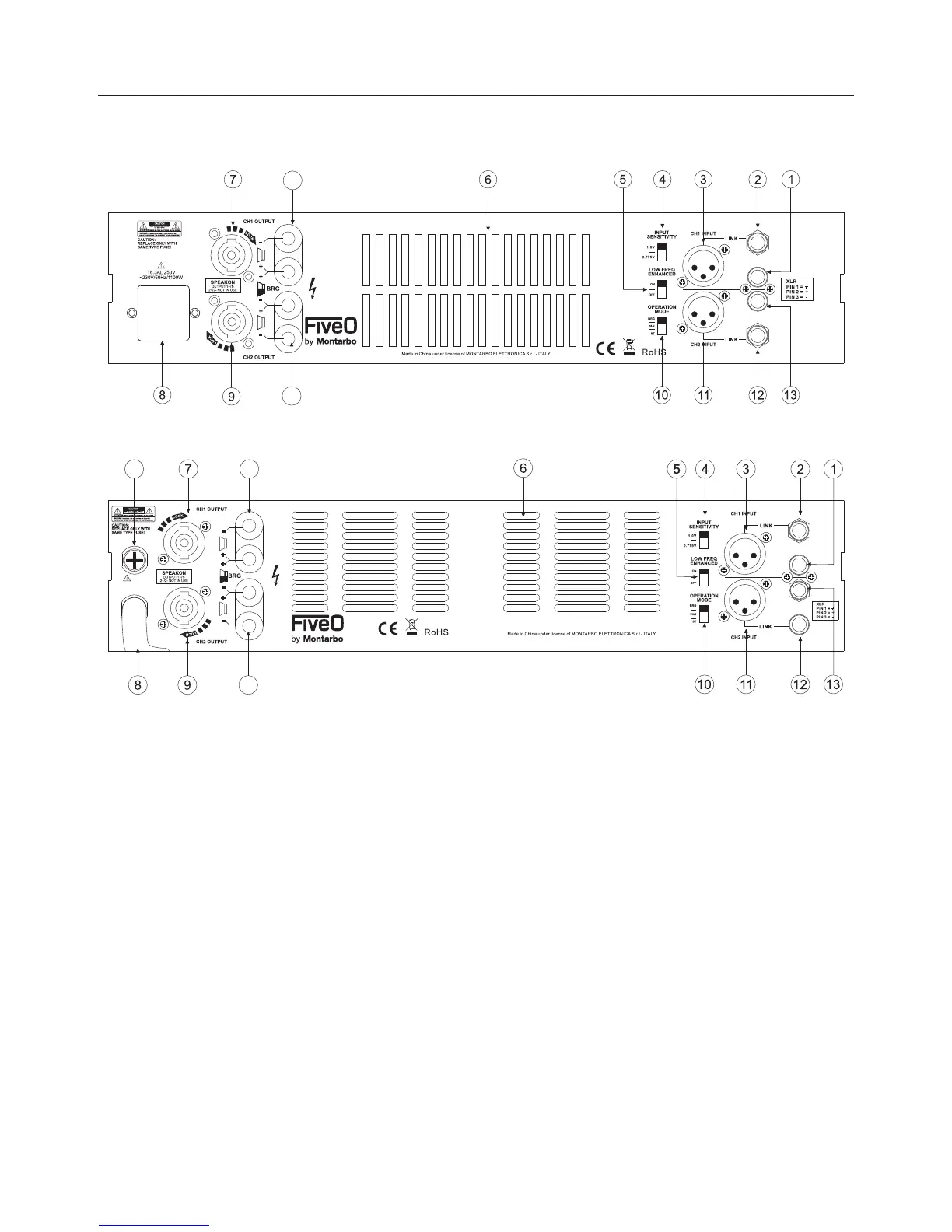

1. CH1 unbalanced RCA input
2. CH1 1/4" LINK socket
It is a parallel connection with CH1 XLR input, providing output signal identical to the input
signal.
3. Channel 1 XLR input
This XLR input is a balanced input to be connected to audio sources.
4. Input sensitivity switch
This selector is to select the input sensitivity between 0.775V and 1.0V
5. Low frequency increase function switch
When turn on this switch, low frequencies are boosted.
6. Air exit
This port is for air exit, do not block it.
7. CH1 SPEAKON output
Use this output socket (SPEAKON) to connect the speaker in Stereo mode: 1+ to speaker
positive pole, 1- to negative speaker pole.
8. Power supply socket (built-in fuse) (LIBRA 600/LIBRA 1200)
This socket includes a standard fuse holder with fuse inside. It is used to protect amplifier
from damages. If the amplifier is connected to power supply but the LED is not lit, please
check the fuse status. If you found the fuse broken, you must replace it with a same
specification.
LIBRA series rear panel function description
