2.4.7 User library file system

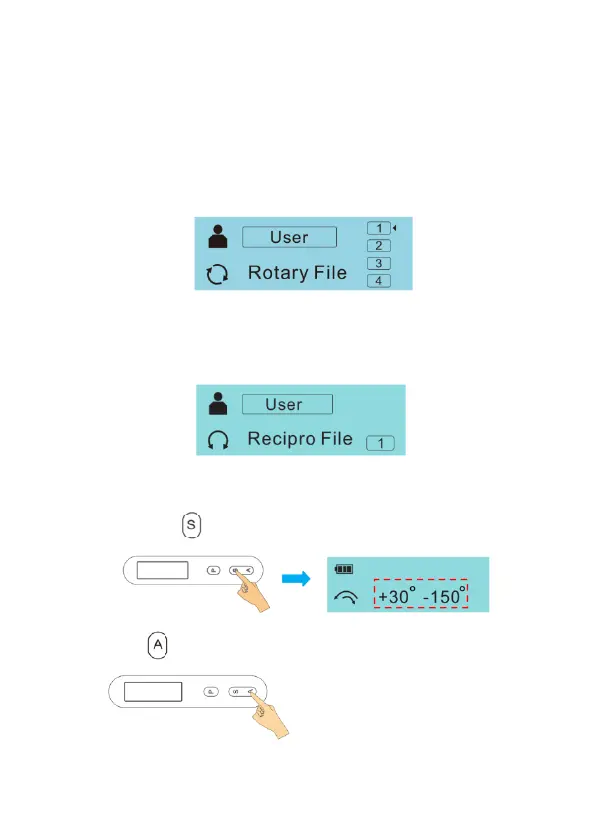

The device contains two user-created file systems: Rotary File and Recipro
File. Users can set parameters by themselves.
a) Rotary File
(4 memories preset at original default settings: 1000rpm FW 1.5Ncm)
To change speed and torque refer to 2.4.6
b) Recipro File
(1 memory preset at original default settings: +30 /-150 150rpm)
speed and rotation angle.
To change rotation angle, follow the next step:
a) Hold down until the Rotation angle flash.
b) Press to adjust desired value.
