Unit parts
eQ PRIME size 023-050

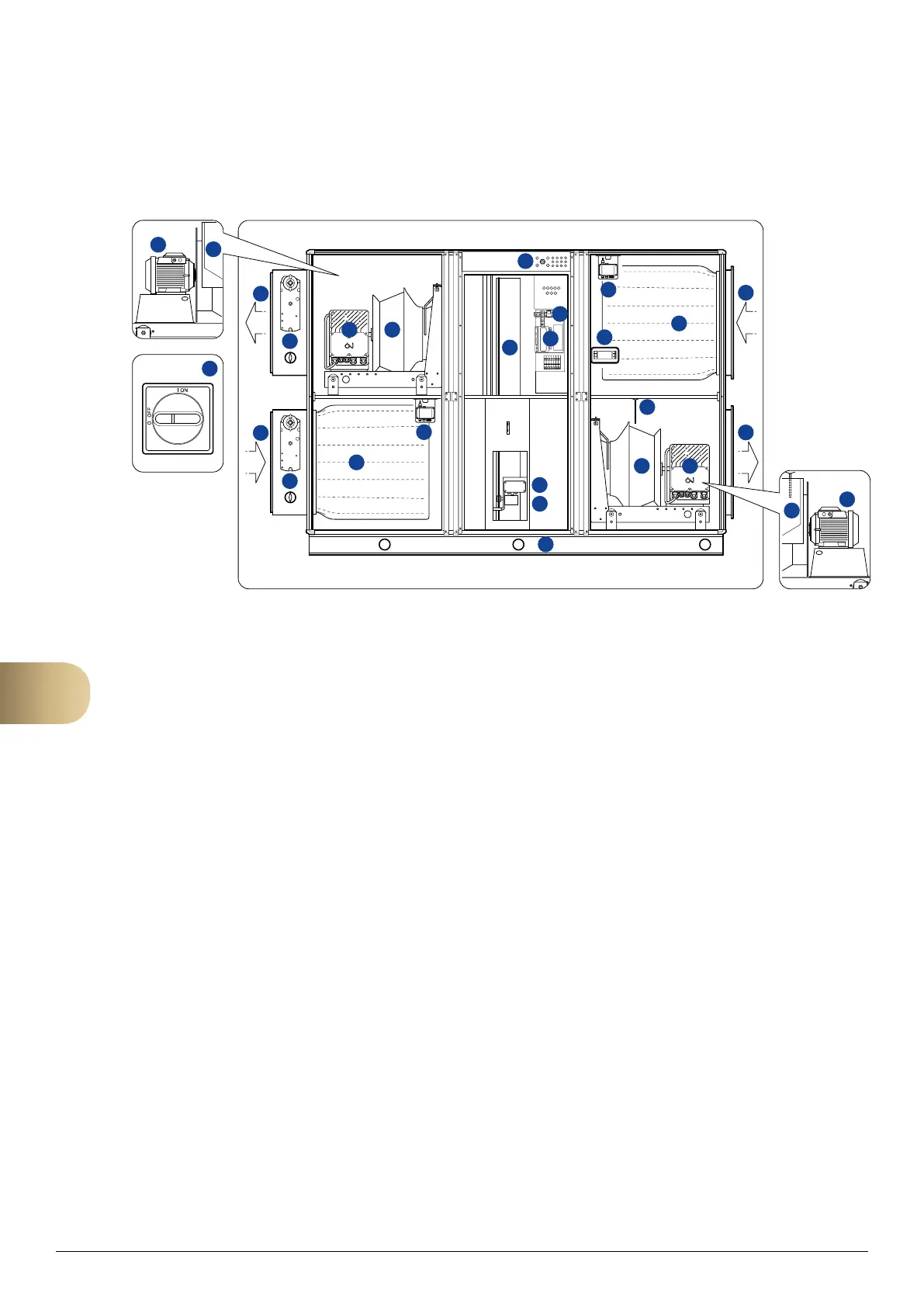

Simplified overview of installed components
The pictured unit has the supply air at the bottom right-hand side. The unit is available with the supply air either at the top
or at the bottom, and on the right or the left.
1. Outdoor air
2. Outdoor air damper with damper actuator
3. Supply air filter
4. Multifunction sensor (extract air flow, supply air filter, outdoor temperature)
5. Rotary heat exchanger
6. Drive system rotary heat exchanger
7. Drive motor rotary heat exchanger
8. Temperature sensor efficiency
9. Supply air fan with motor
10. Frequency converter OJ-DV supply air
11. Supply air
12. Extract air
13. Extract air filter
14. Multifunction sensor (supply air flow, extract air filter, extract air temperature)
15. Lockable main circuit breaker
16. Cable glands
17. Handheld terminal
18. AHU controller
19. Extract air fan with motor
20. Frequency converter OJ-DV extract air
21. Exhaust air damper with damper actuator
22. Exhaust air
23. Base frame
24. Option IE2 Motor - Frequency converter extract air
25. Option IE2 Motor - Frequency converter supply air
1
2
4
5
6
7
8
12
13
14
16
17
23
22
21
3
18
11
15
15
19
24
9
25
20 19
10
9
1
