FlashLogic FLRSGM10 - Module Programming Procedure; Programming Sequence Steps

U.S. Patent No. 8,856,780
01
02
03
OFF
ACC ON
START
04
OFF
ACC ON
START
05
06
OFF
ACC ON
START
07
08
OFF
ACC ON
START
09

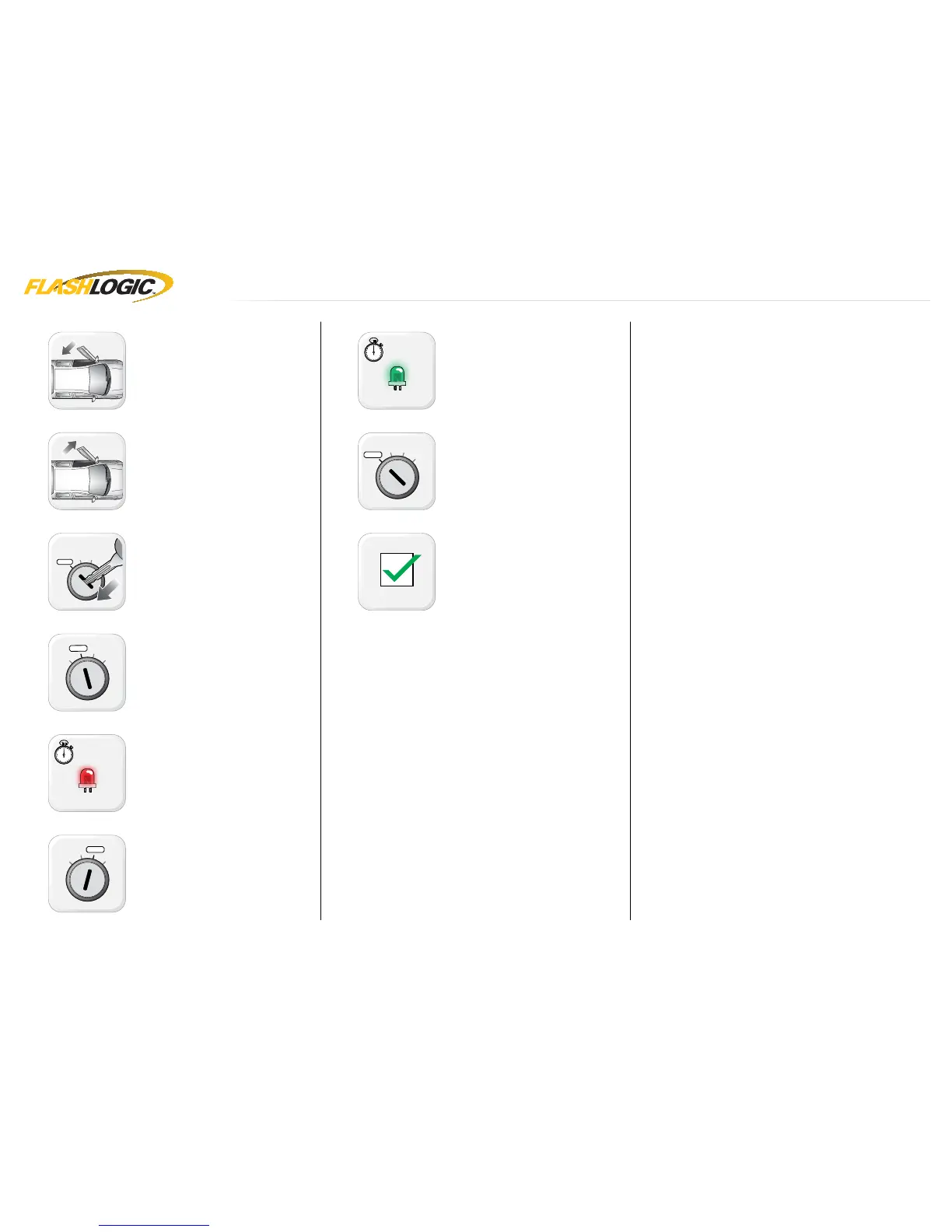

MODULE PROGRAMMING PROCEDURE - 1 OF 1
Close driver door.
Re-open driver door to wake up data bus.
Insert key into ignition.
Turn key to ACC position.
Wait, LED 1 will turn solid RED.
Turn key to ON position.
Wait, LED 1 will turn solid GREEN for 2
seconds. (This may take up to 1 minute.)
Turn key to OFF position.
Module Programming Procedure completed.
