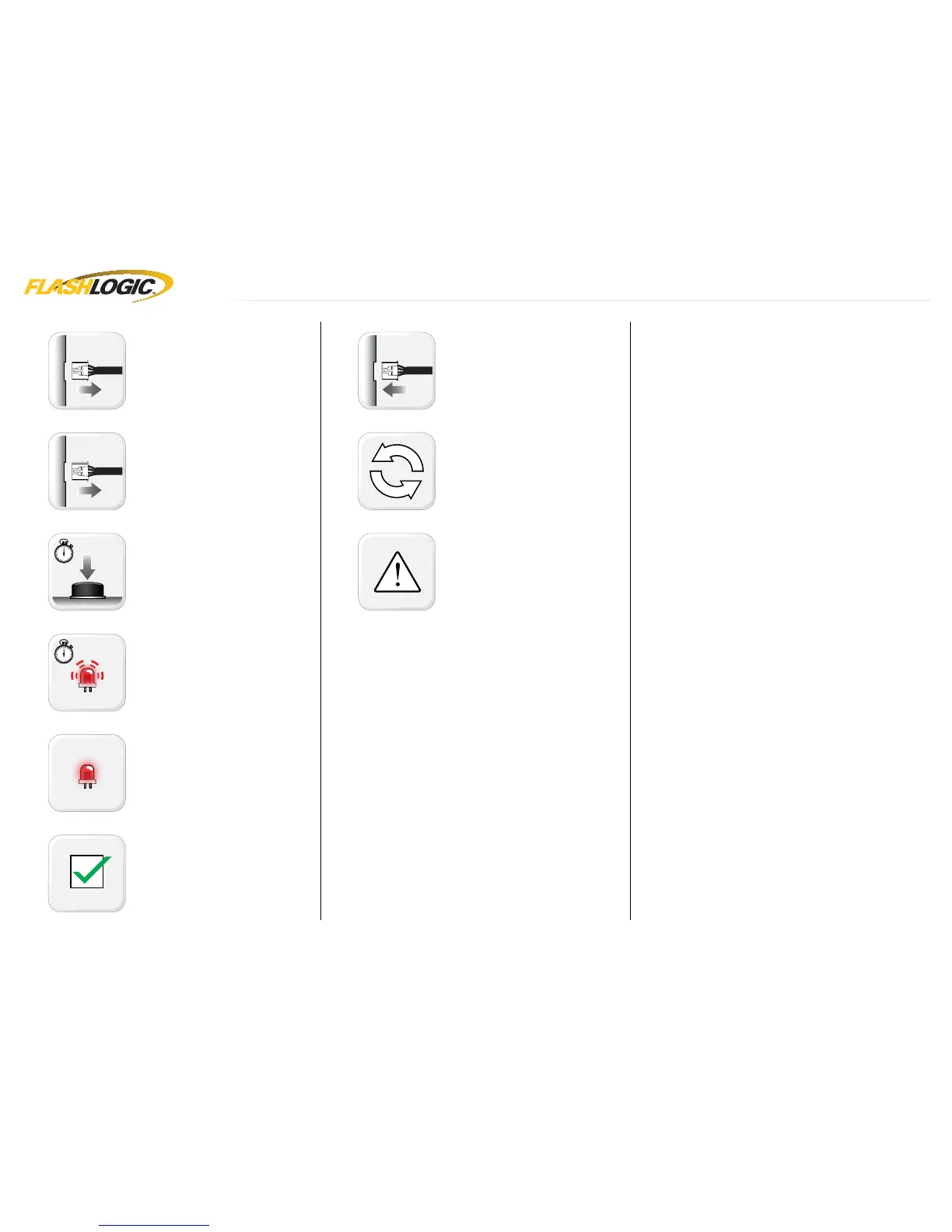

MODULE RESET PROCEDURE - 1 OF 1
Disconnect all connectors from module except
the BLACK 20-PIN connector.
Disconnect the BLACK 20-PIN connector.
PRESS AND HOLD the module’s programming
button while connecting the BLACK 20-PIN
connector.
Wait, LED 1 will flash RED. RELEASE
programming button.
LED 1 will turn RED for 2 seconds.
Module RESET completed.
Reconnect all connectors.
Repeat programming procedure.
Failure to follow procedure may result with a
DTC or a CHECK ENGINE error message.
