Table A - Installation Depth Requirements for a Flavel Stirling being installed
into a brick built chimney, requiring 12.0 litres of debris collection volume
(fig. 2)
Opening Width (mm) Minimum Depth Required (mm)
330 (minimum opening width) 222
340 218
350 215
360 211
370 205
380 199
390 193
400 189
410 183
420 178
430 172
440 (maximum opening width) 168

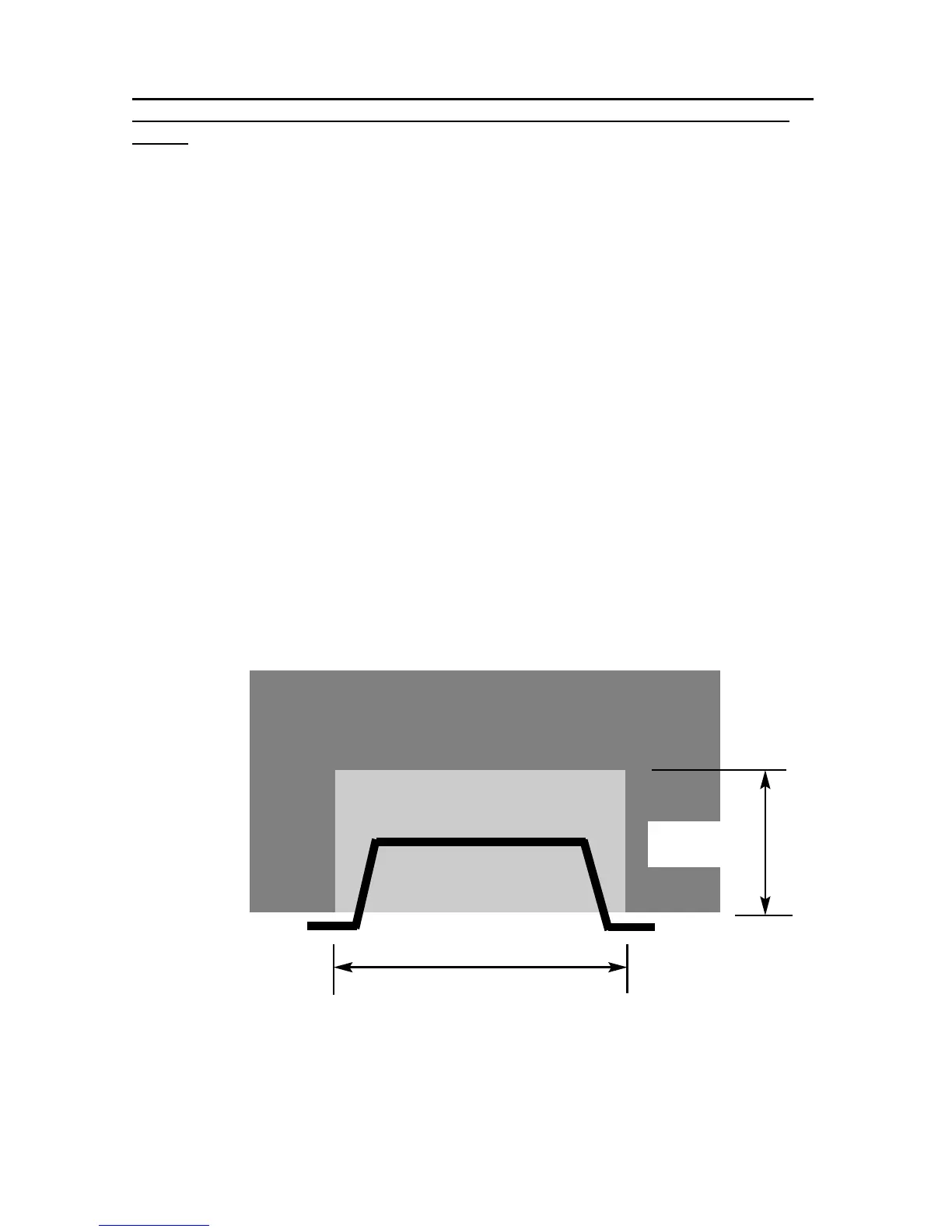

For example, if the appliance was to be fitted into a 400mm wide opening, the
depth required would be 189mm. See fig. 2 below for explanatory diagram.
Fig. 2
7
Opening Width ( e.g. 400mm)
Depth Required
(e.g. 189mm)
