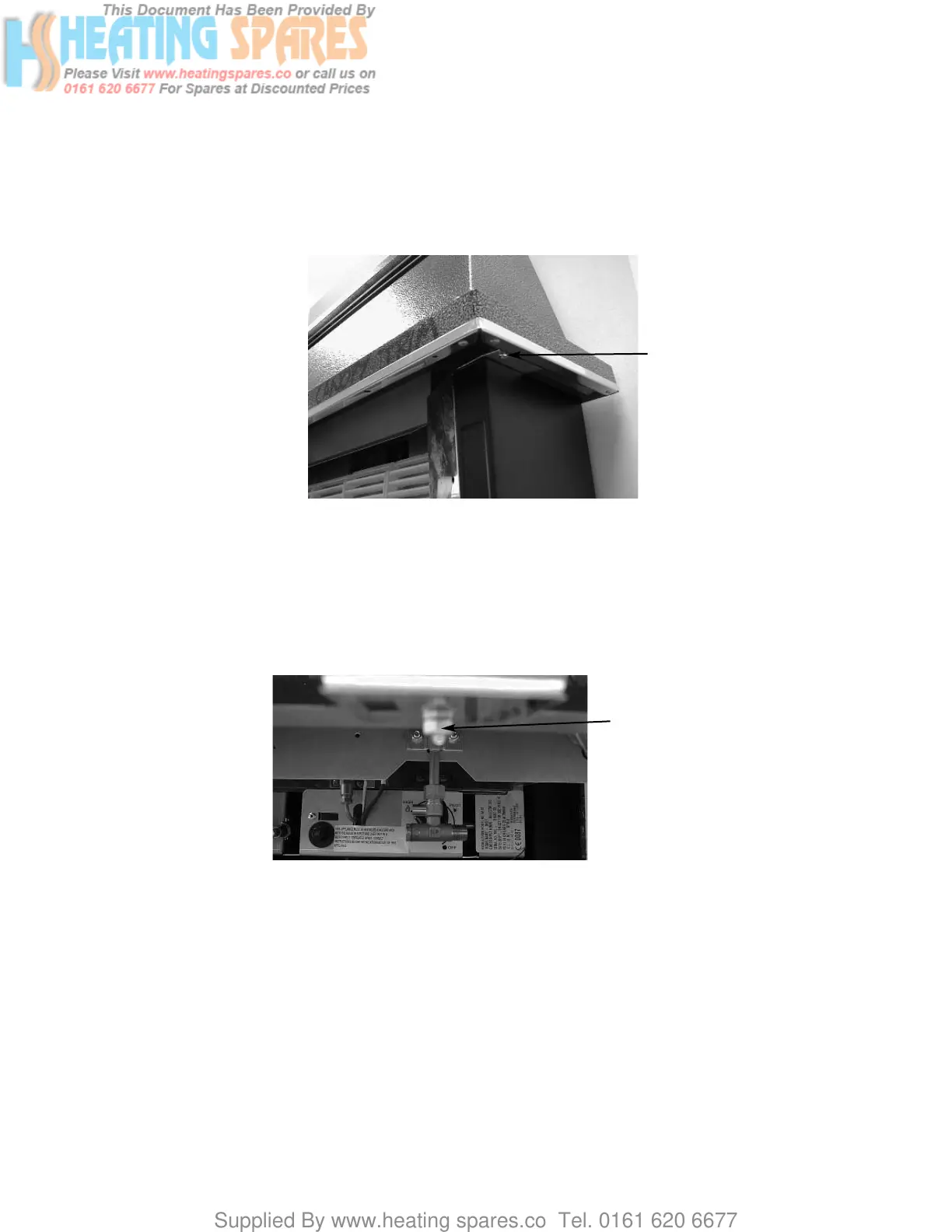

Fig. 6 Removing the Upper Outer Case Fixing Screws
4.2 REMOVING THE BURNER ASSEMBLY FROM THE FIRE
a) Disconnect the appliance from the gas supply. Remove the front panel
by unscrewing the retaining bolt below the front panel as shown in Fig.
7 below.
Fig. 7
b) Remove the front bezel by unscrewing the 2 retaining screws, as shown
in Fig. 8 overpage.
16
Fixing Screws
Front panel retaining
bolt
