Printed in U.S.A.
Page 1B
MODEL 6700 Downflow - V2.0
Option Setting Level #2

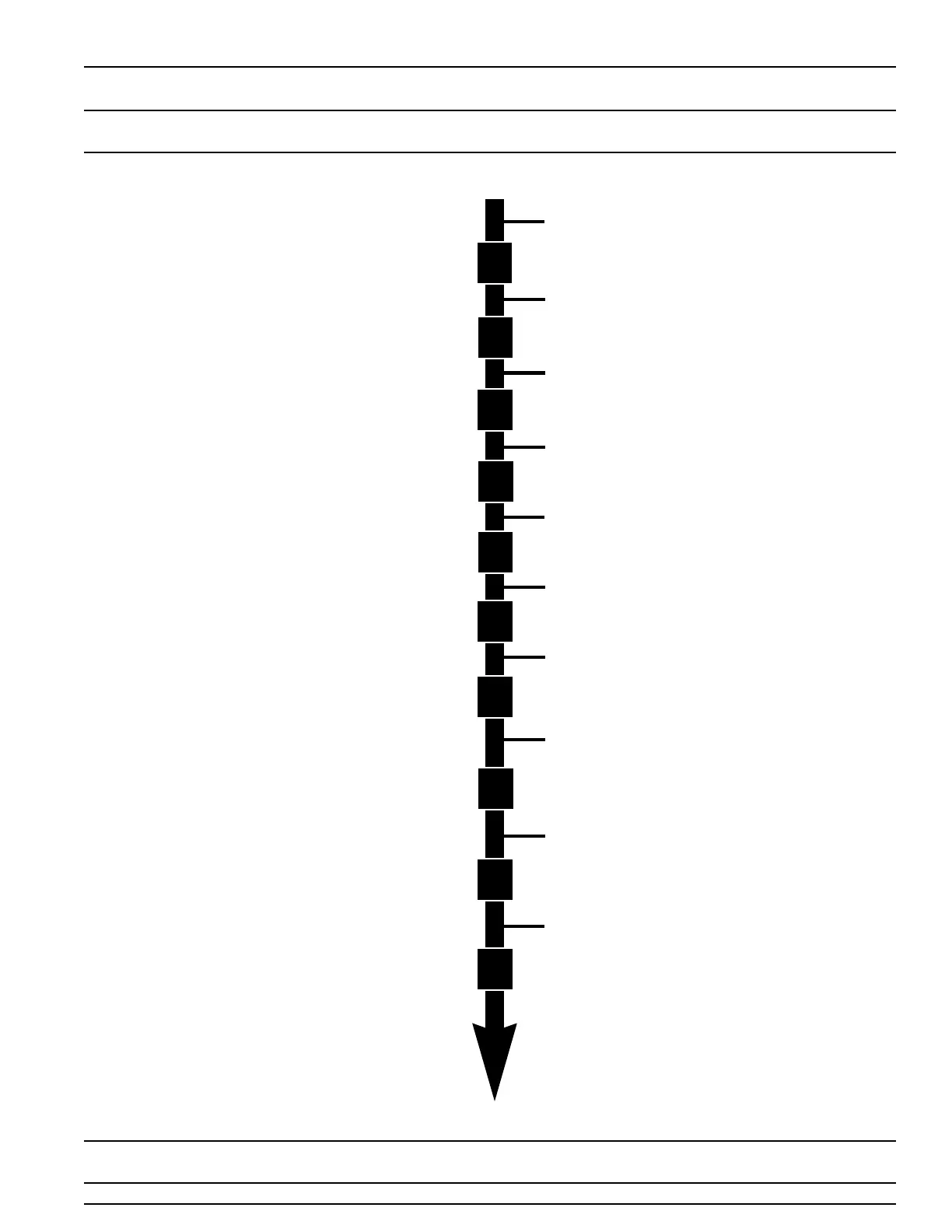

Programming Chart
Level #2
NOTE:
1. Push Program Button Once Per Display.
2. Option settings may be changed by pushing
either the Up or Down Arrow Button.
3. Depending on current valve programming certain
displays will not be able to be viewed or set.
To Enter Push And Hold Program Button For 5 Seconds
Then Push And Hold Extra Cycle Button For 5 Seconds
Flow Rate Display
Example: 5.8 Gallons Per Minute [Fr - - - 5.8]
Days Since Last Regeneration Display
Example: 5 Days [d - - - - - 5]
Prior Service Volume Used Display
Example: 858 Gallons [E - - - 858]
Reserve Capacity Display
Example: 158 Gallons [rc - - 158]
Previous Days Water Usage Display
Example: 258 Gallons [Pd - - 258]
Cycle Step Location for Chlorination Indicator
Examples: Indicator On During Brine/Rinse [J - - - - - 2]
Cancel setting [J - - - OFF]
Timed Auxiliary Output Window #1 Start Time Setting
Examples: 1. Turn On At Start Of Backwash [y - - - - - 0]
2. Cancel setting [y - - - OFF]
Note: Setting Not Viewed On Standard 6700 Valves
Timed Auxiliary Output Window #1 End Time Setting
Examples: 1. Turn Off After 10 Minutes [ 10.0]
2. Turn Off When Returned To Service [ S]
Continued On Next Pag
Program
Extra
Cycle
Program
Program
Program
Program
Program
Program
Program
Program
To Next Page
