Fleck 9100SXT Meter - Making the Drain Connection

© 1999-2007 QualityWaterForLess.com - 10 - info@qualitywaterforless.com

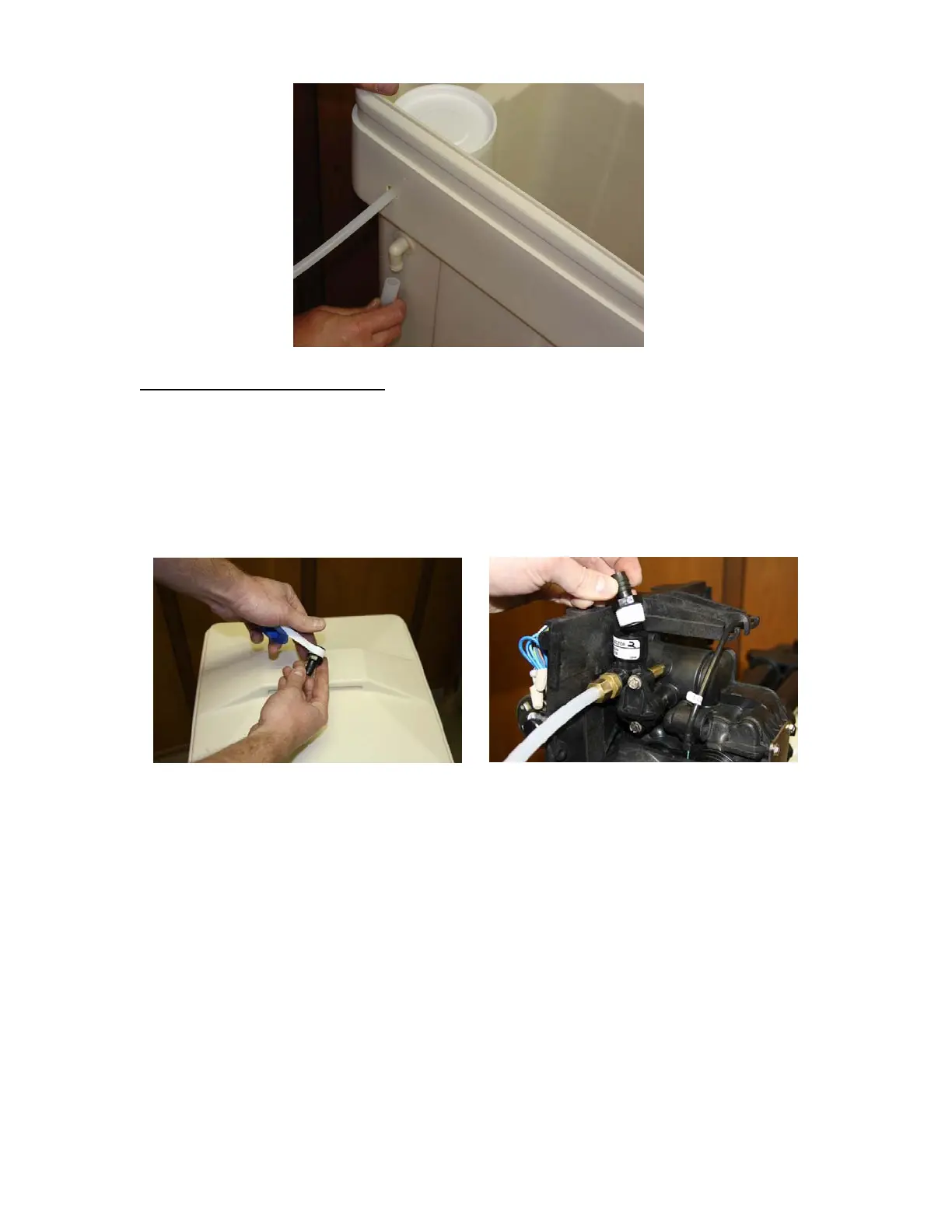

FIGURE 26
.
Making the Drain Connection:
• Locate the included Use Teflon tape to wrap the threading as shown in figure 28
below.
• Install the drain barb assembly included with your shipment to the Fleck
9100SXT Meter Valve by screwing the fitting using a wrench snugly into the
threads as shown in Figure 28 below. Please use caution not to over tighten this
fitting.
FIGURE 26 FIGURE 27
• Next, assemble your ½” I.D. drain line to the drain barb as shown in Figure 28 on
the following page. Be sure to use rigid wall ½” I.D. tubing that will not flatten
• Wrap electrical tape over the drain tubing to prevent a tubing split, and clamp the
tubing securely into place with the included blue clamp as shown in Figure 29 on
the following page.
