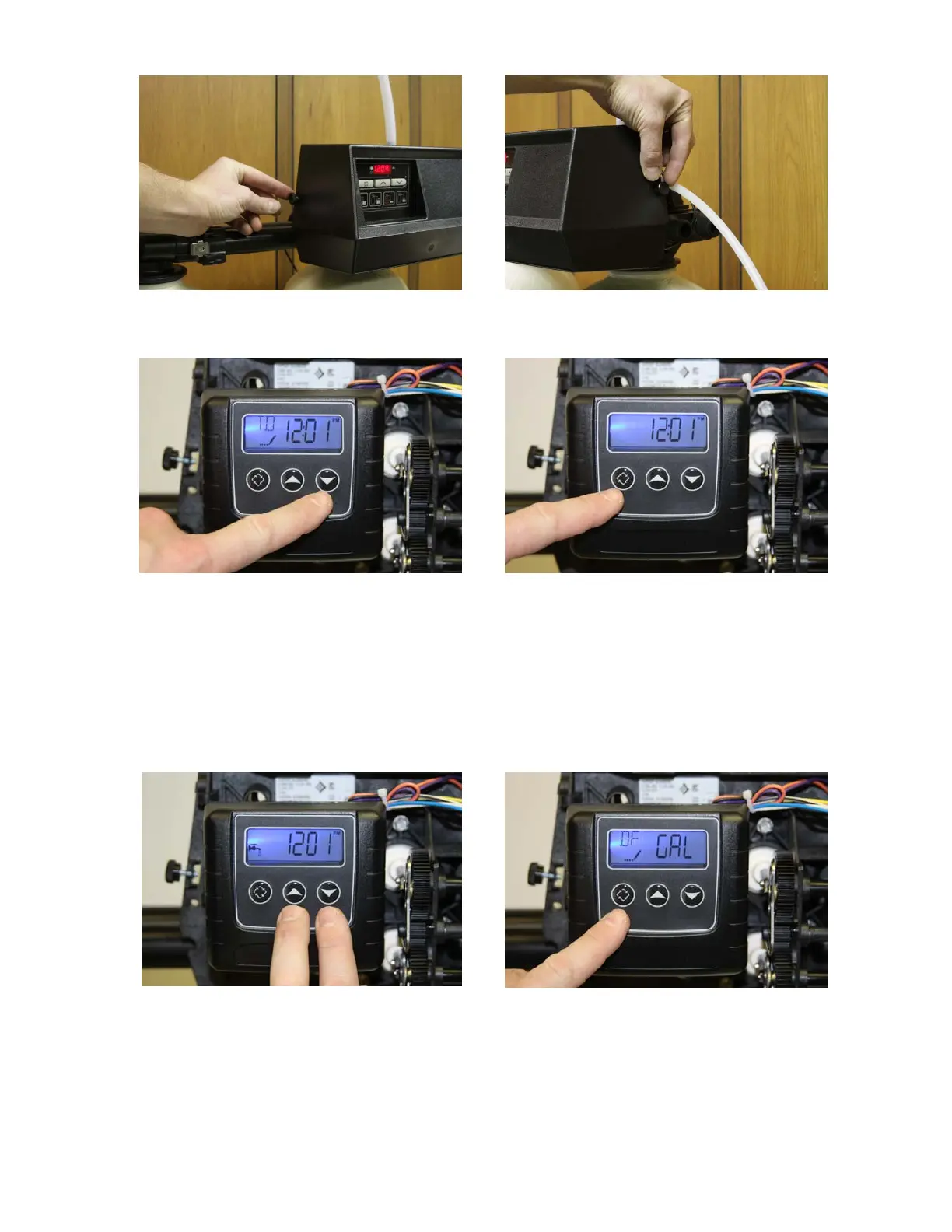

FIGURE 30 FIGURE 31
FIGURE 32 FIGURE 33
• To enter master programming mode, press the “UP” and “DOWN” buttons
TOGETHER and HOLD for 5 seconds, and then release the buttons, as shown in
figure 34 below.
• The display should now show “DF / GAL” as shown in figure 35 below. (This
indicates U.S. Operation Mode - Gallons) Do not change this value, and press
the “Extra Cycle Button” once to continue.
FIGURE 34 FIGURE 35
• The display should now show “VT / St1b”as shown in figure 36 on the following
page. (This indicates Valve Type 9100 Mode) Do not change this value, and
press the “Extra Cycle Button” once to continue.
