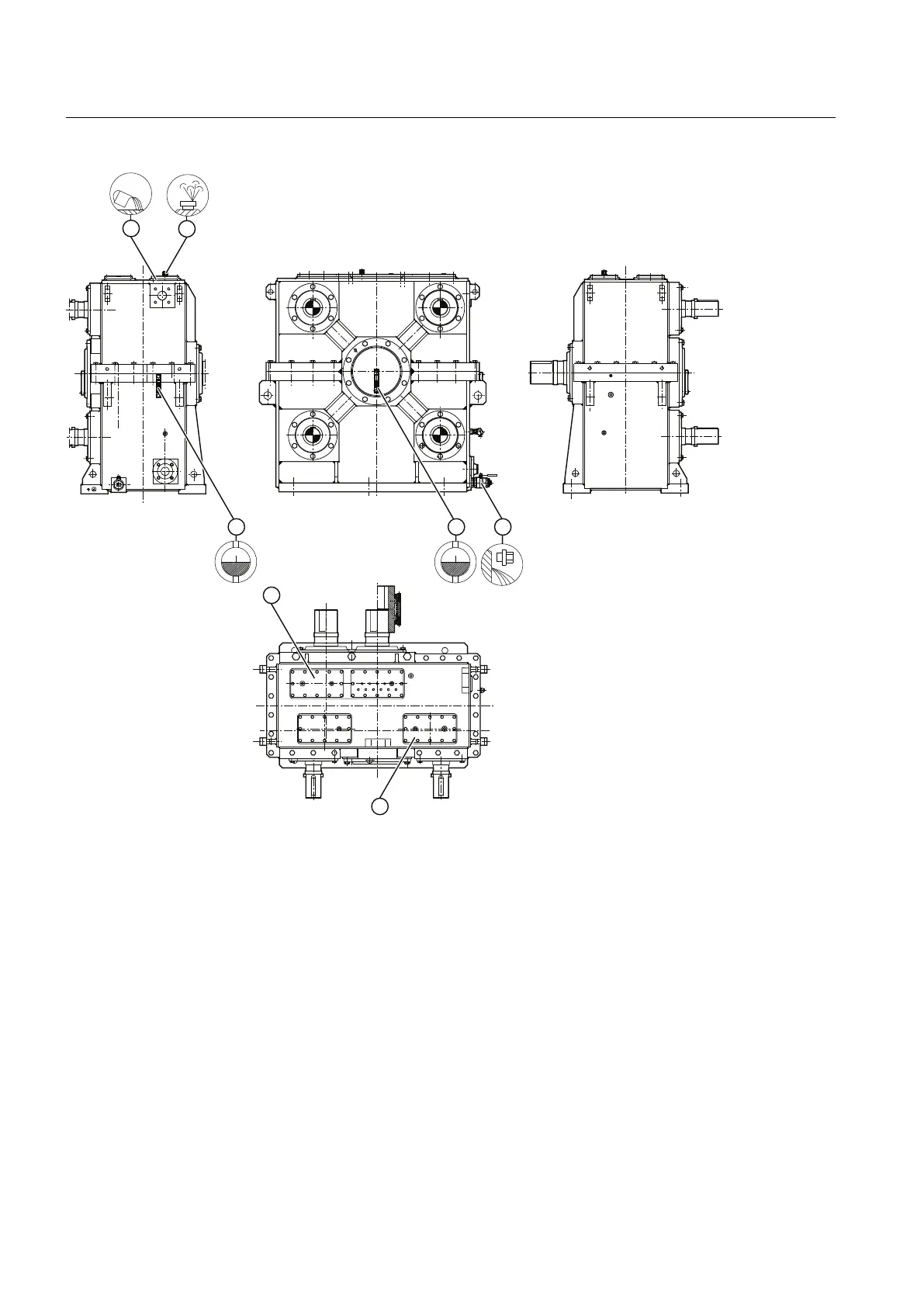

① Oil filling point ④ Oil level indicator
② Venting point ⑤ Inspection and assembly cover
③ Oil draining point
Figure 4-7 Oil filling points and oil draining points on type M1S X 315 gear units
The diagram below shows the oil filling points and the oil draining points on type H3SX gear
units:
Application planning
4.4 Special aspects of gear unit lubrication and preservation
Gear unit 5118en
52 Operating Instructions 10/2017
