Flex GE 5 User Manual

GE 5/GE 5 R/GSE 5 R
9

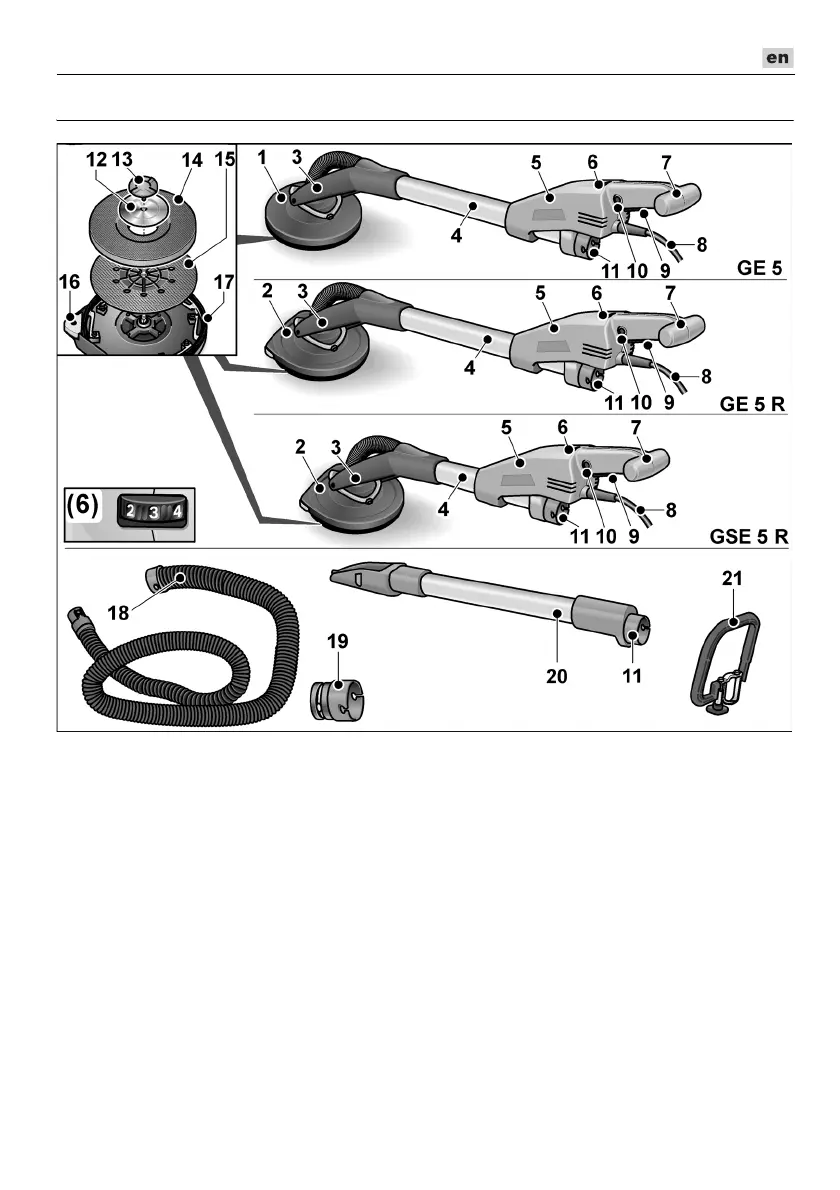

Overview
1 Sanding head (GE 5)
with closed brush ring
2 Sanding head (GE 5 R/GSE 5 R)
with open brush ring for sanding edges
3 Gimbal bearings
4 Tubular handle
5 Housing
6 Dial for preselecting the speed
7 Handle
8 5.0 m power cord with plug
9Switch
10 Locking button
11 32 mm connection
12 Retaining washer
13 Screw
14 Velcro pad
15 Backing pad
16 Replaceable protective corners
(GE 5 R/GSE 5 R)
17 Brush ring
18 Suction hose
19 Adapter for extraction hose (optional)
for connection of electric power tools
using conventional connection piece
20 Extension tube (optional)
21 Bail handle (optional)

Flex GE 5 Specifications

General

Product color	Black, Red, Silver
Type of sander	-
Adjustable speed	Yes
Idle speed (max)	1650 RPM
Idle speed (min)	1100 RPM
Input power	500 W
Output power	270 W
Power source	AC
AC input voltage	230 V
AC input frequency	50/60 Hz

Weight and Dimensions

Width	1520 mm
Weight	3900 g
Sanding disc diameter	225 mm
