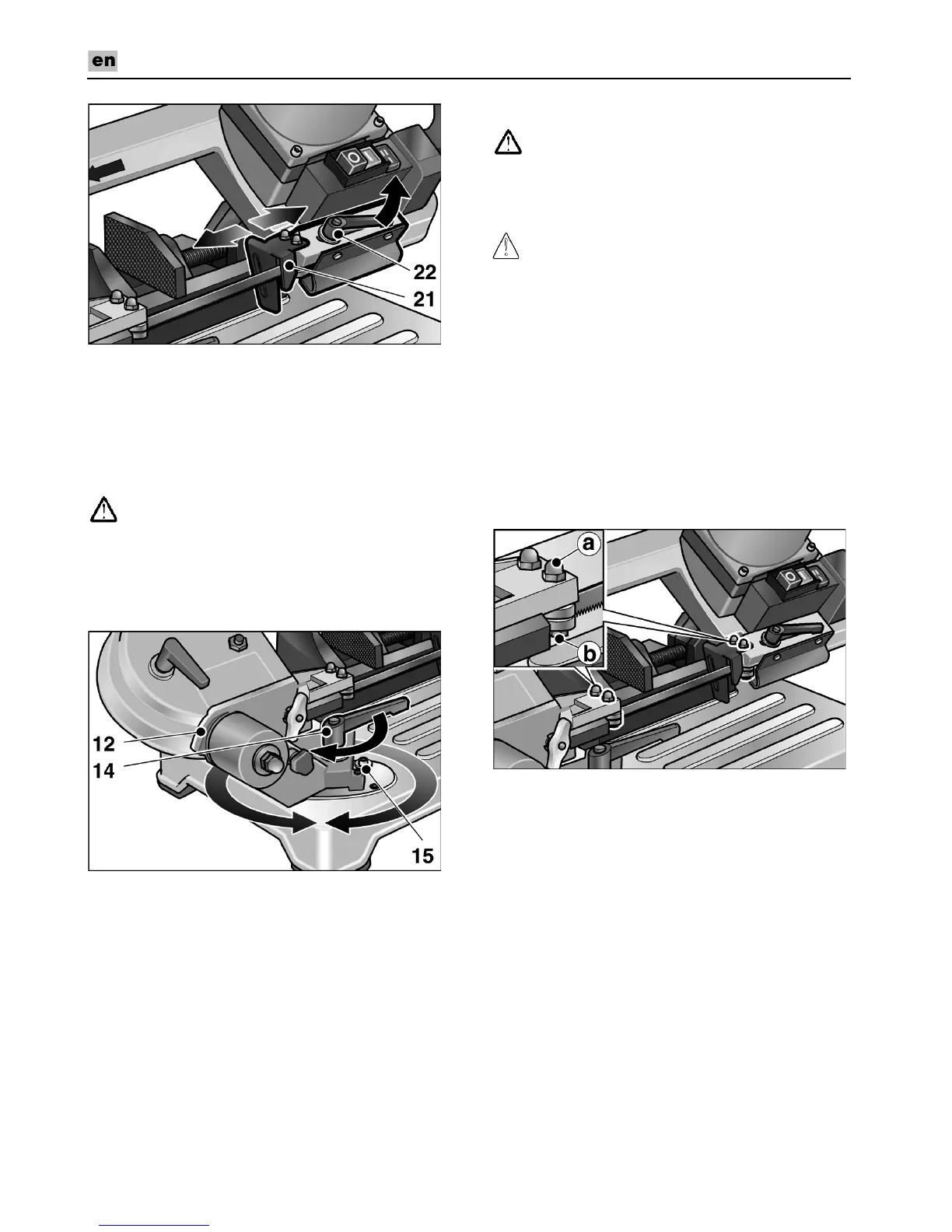

 Loosen the clamping lever (22) and feed
the saw band guide (21) as far as possible
along the workpiece.
 Tighten the clamping lever (22).
Changing the cutting angle
t^okfkd>
_ÉÑçêÉ=~ÇàìëíáåÖ=íÜÉ=éçïÉê=íççäI=~äï~óë=éêÉëë=
íÜÉ=ã~áå=ëïáíÅÜ=lÑÑLM=EOPFK
The cutting angle can be adjusted steplessly
from 0° to 45° (end stop).
 Loosen the clamping lever (14) and set
the swivel support (12) to the required
cutting angle.
Use the scaling on the machine table as
an adjustment aid.
 Retighten the clamping lever.
Changing the saw band
t^okfkd>
_ÉÑçêÉ=~ÇàìëíáåÖ=íÜÉ=éçïÉê=íççäI=~äï~óë=
éêÉëë íÜÉ=ã~áå=ëïáíÅÜ=lÑÑLM=EOPF=~åÇ=
éìää çìí íÜÉ=ã~áåë=éäìÖK
`^rqflk>
oáëâ=çÑ=áåàìêó>=tÉ~ê=éêçíÉÅíáîÉ=ÖäçîÉëK
 Press the main switch Off/0 (23)
and pull out the mains plug.
 Loosen the clamping lever (22)
and push back the saw band guide (21)
as far as the stop.

After loosening the 4 screws, remove
the protective housing from the saw
frame.
 Release saw belt tension by swivelling
the tension lever (10) clockwise.
 Slacken the hexagon-head nuts a
(A/F 10) on both outer saw band guides.
 Rotate screw b (A/F 10) slightly in an anti-
clockwise direction until the saw band
is released.
 First take the saw band off the guide
rollers and then out of the guides.

Flex SBG 4910 Specifications

General

Product color	Black, Metallic, Red
Built-in light	-
Adjustable speed	Yes
Number of speeds	2
Input power	850 W
Cable length	4 m
Output power	445 W
Power source	AC
AC input voltage	230 V
AC input frequency	50/60 Hz
Blade width	13 mm
Blade length	1335 mm
Blade thickness	0.65 mm

Weight and Dimensions

Depth	310 mm
Width	640 mm
Height	390 mm
Weight	18000 g
