Flex SBG 4910 User Manual

SBG 4910
21

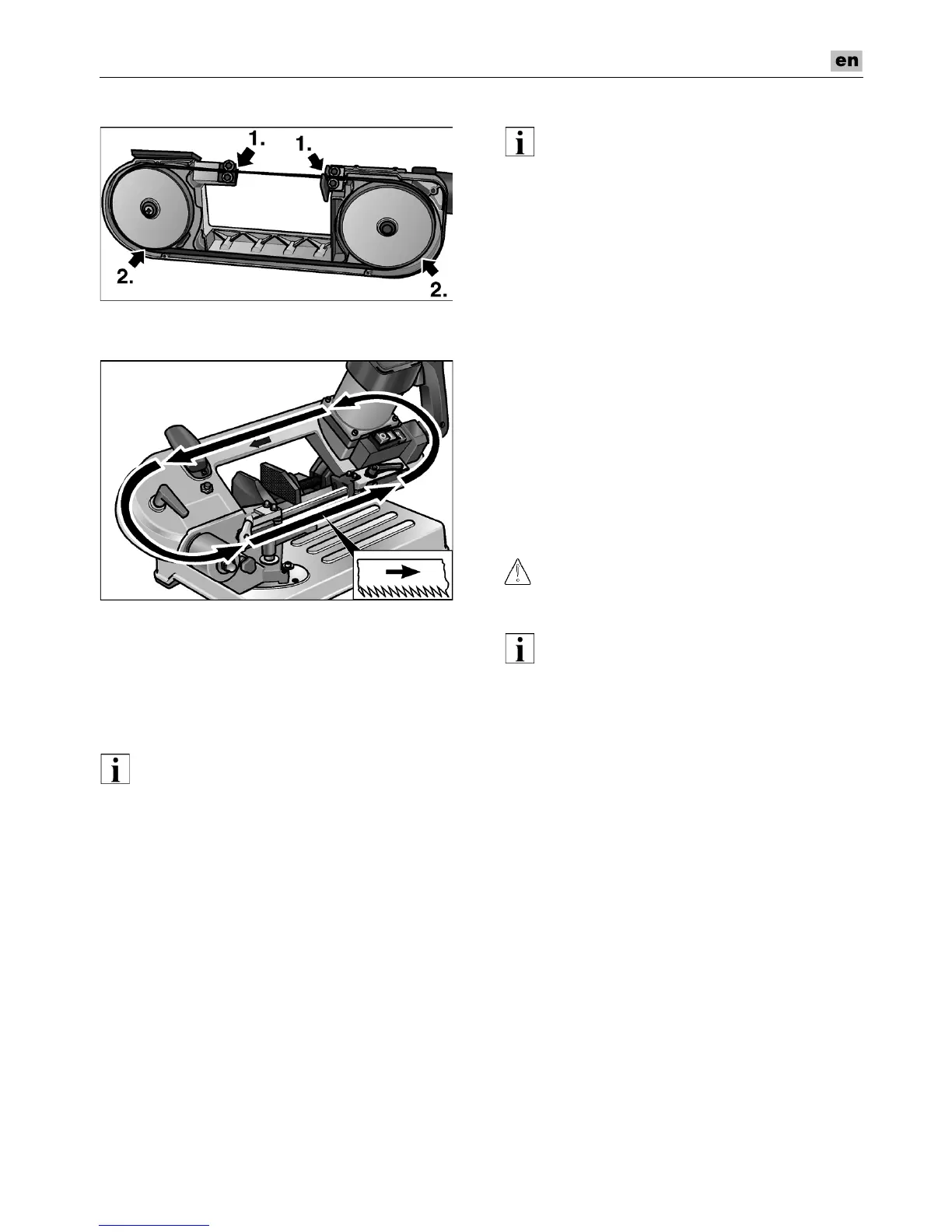

 Insert the new saw band:
First into the guides, then onto the guide
rollers.
Observe the direction of cut!
 Tension saw band (see page 19).
 Align the saw band guide by rotating
the screw (A/F 10) slightly in a b clock-
wise direction until the guide just touches
the saw band.
klqb>
qÜÉ=ë~ï=Ä~åÇ=ÖìáÇÉë=ãìëí=ÄÉ=~ÇàìëíÉÇ=ìåíáä=
íÜÉó=äáÖÜíäó=íçìÅÜ=íÜÉ=ë~ï=Ä~åÇ=~åÇ=êçí~íÉ=
~ë íÜÉ=ë~ï=Ä~åÇ=é~ëëÉë=íÜêçìÖÜ=íÜÉã>=
qÜÉó ãìëí=åçí=ÄÉ=ÄäçÅâÉÇ>
 Tighten the hexagon-head nuts a
(A/F 10).
 Attach the protective housing.
 Move the saw band guide (21) into the
operating position and tighten the
clamping lever (22).
Running in the saw band
klqb>
qç=ÉåëìêÉ=~å=çéíáãìã=ÅìííáåÖ=êÉëìäíI=
É~ÅÜ åÉï=ë~ï=Ä~åÇ=ãìëí=ÄÉ=êìå=áåK=
To do this:
 Clamp Ø 40–50 mm round steel in the
vice.
 Make three cuts into solid material
See section “Sawing with machine table”.
Start by applying very little pressure on
the handle for the first cut, increase the
pressure slightly for the subsequent cuts.
For the last cut the cutting time should not
be less than 4 minutes!
A correctly run-in saw band produces
a higher cutting quality and has a longer
service life.
Sawing
`^rqflk>
_ÉÑçêÉ=ìëÉI=~äï~óë=ÅÜÉÅâ=íÜÉ=ã~ÅÜáåÉ=~åÇ=
ë~ï=Ä~åÇ=Ñçê=Ç~ã~ÖÉK=
klqb>
bñÅÉëëáîÉ=ÑÉÉÇ=ïáää=êÉÇìÅÉ=íÜÉ=Å~é~Åáíó=
çÑ íÜÉ ã~ÅÜáåÉI=áãé~áê=íÜÉ=ÅìííáåÖ=èì~äáíó=
~åÇ êÉÇìÅÉ=íÜÉ=ëÉêîáÅÉ=äáÑÉ=çÑ=íÜÉ=ë~ï=Ä~åÇK=
Sawing with machine table
 Clamp the workpiece firmly in the vice (18).
 Adjust the saw band guide (21) according
to the workpiece dimensions.
 Switch on the device.

Flex SBG 4910 Specifications

General

Product color	Black, Metallic, Red
Built-in light	-
Adjustable speed	Yes
Number of speeds	2
Input power	850 W
Cable length	4 m
Output power	445 W
Power source	AC
AC input voltage	230 V
AC input frequency	50/60 Hz
Blade width	13 mm
Blade length	1335 mm
Blade thickness	0.65 mm

Weight and Dimensions

Depth	310 mm
Width	640 mm
Height	390 mm
Weight	18000 g
