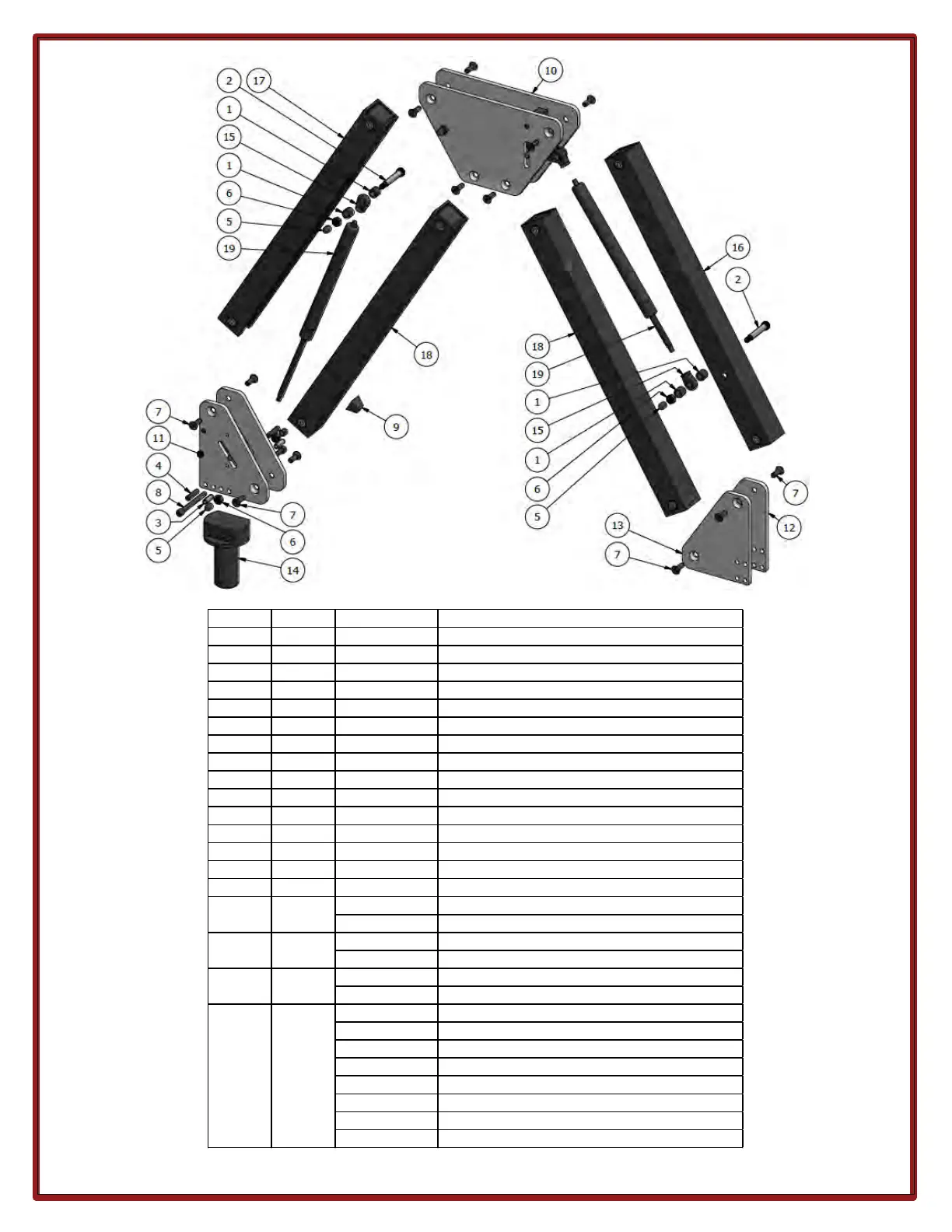

FlexArm S-36 - Page 23

10/29/2020 REV. 003 23
ITEM QTY PART NUMBER DESCRIPTION
1 4 0350M SPACER
2 2 0352M 5/16 x 1 1/2" LG. SHOULDER BOLT
3 2 0362M 1/4" x 3/4" ROLL PIN
4 2 0363M 1/4" X 1" TAPERED PIN
5 4 366 BLACK VINYL SOFT CAP
6 4 0371M 1/4-20 LOCK NUT
7 16 0372M 1/4-20 FHSCS X .75 LG. W/ PATCH
8 2 0374M 1/4-20 SHCS X 2 1/2" LG.
9 1 0378M BUMPER
10 1 6125 TAPPER TOP SIDE PLATE ASY, UNDER 135# CYL.
11 1 7205 TAPPER REAR SIDE PLATE ASY, UNDER 135# CYL.
12 1 7210 FRONT SIDE PLATE (RIGHT)
13 1 7215 FRONT SIDE PLATE (LEFT)
14 1 15250 REAR PIN FOR BEARINGS
15 2 420120 CLEVIS FOR SMALL CYLINDERS
5350 S-36 FRONT ARM ASSEMBLY
5365 M-60 FRONT ARM ASSEMBLY
5355 S-36 REAR ARM ASSEMBLY
5370 M-60 REAR ARM ASSEMBLY
5360 S-36 CENTER ARM ASSEMBLY
5375 M-60 CENTER ARM ASSEMBLY
C16-18824 40# LONG CYLINDER
C16-18825 50# LONG CYLINDER
C16-06135 65# LONG CYLINDER
C16-06136 72# LONG CYLINDER
C16-13490 95# LONG CYLINDER
C16-04511 110# LONG CYLINDER
C16-06133 120# LONG CYLINDER
C16-09804 135# LONG CYLINDER
