INSTALLATION

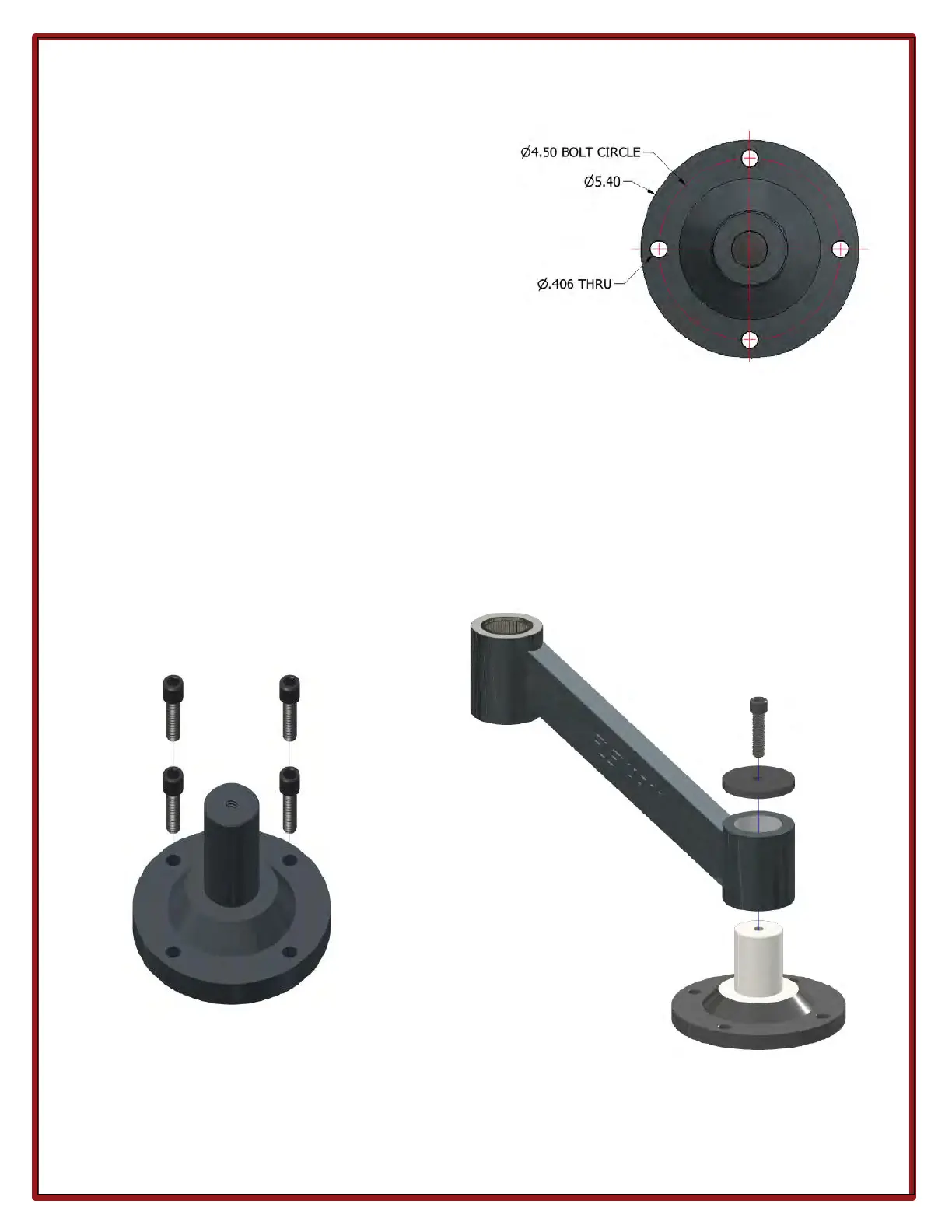

1. Drill four bolt holes on a flat, smooth table or
work bench in the pattern shown in Figure 1.
2. Make sure the table the arm is being installed on
is secure, and will not tip over if the arm extended
off the side of the table.
3. Fasten the FlexArm base mount to the table and secure it with 3/8” bolts as shown in Figure 2.
4. Slide the angle mount over the shaft of the base mount as shown in Figure 3.
5. Secure the angle mount by placing the washer on top of the lower bore and tighten the angle bolt
securely into the base mount. If this bolt in not properly tightened and the angle mount is not secure,
the perpendicularity could be offset.
