FlexArm S-36 - Counterbalance Adjustment

10/29/2020 REV. 003 8
COUNTERBALANCE ADJUSTMENT
Both the front and rear arms can be adjusted to meet the operator preference.

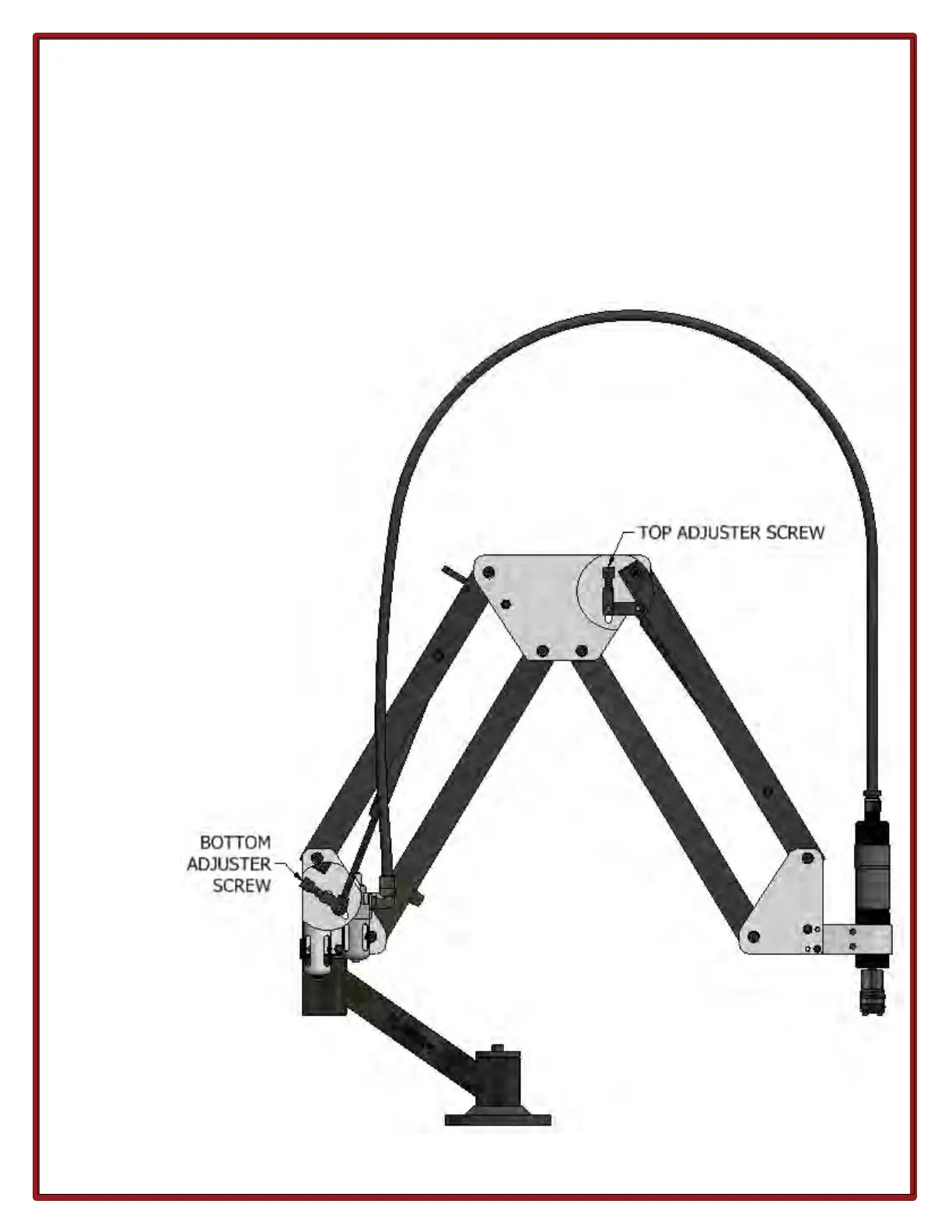

To adjust the counterbalance, turn the adjuster screw located between the top plates for the front arms, and
the adjuster screw located between the rear plates for the rear arms (see Figure 6). This will move the dowel
pin up or down in the side plates slot.
1. To decrease the counterbalance force applied by
the gas cylinders, turn the hex of the
adjuster screw clockwise with a
3/16” Allen wrench. This will
move the dowel pin towards
the top of the side plate slot.
2. To increase the counterbalance
force applied by the gas
cylinders, turn the hex of the
adjuster screw counter-clockwise
with a 3/16” Allen wrench.
This will move the dowel pin
towards the bottom of the
side plates slot.
Figure 6
