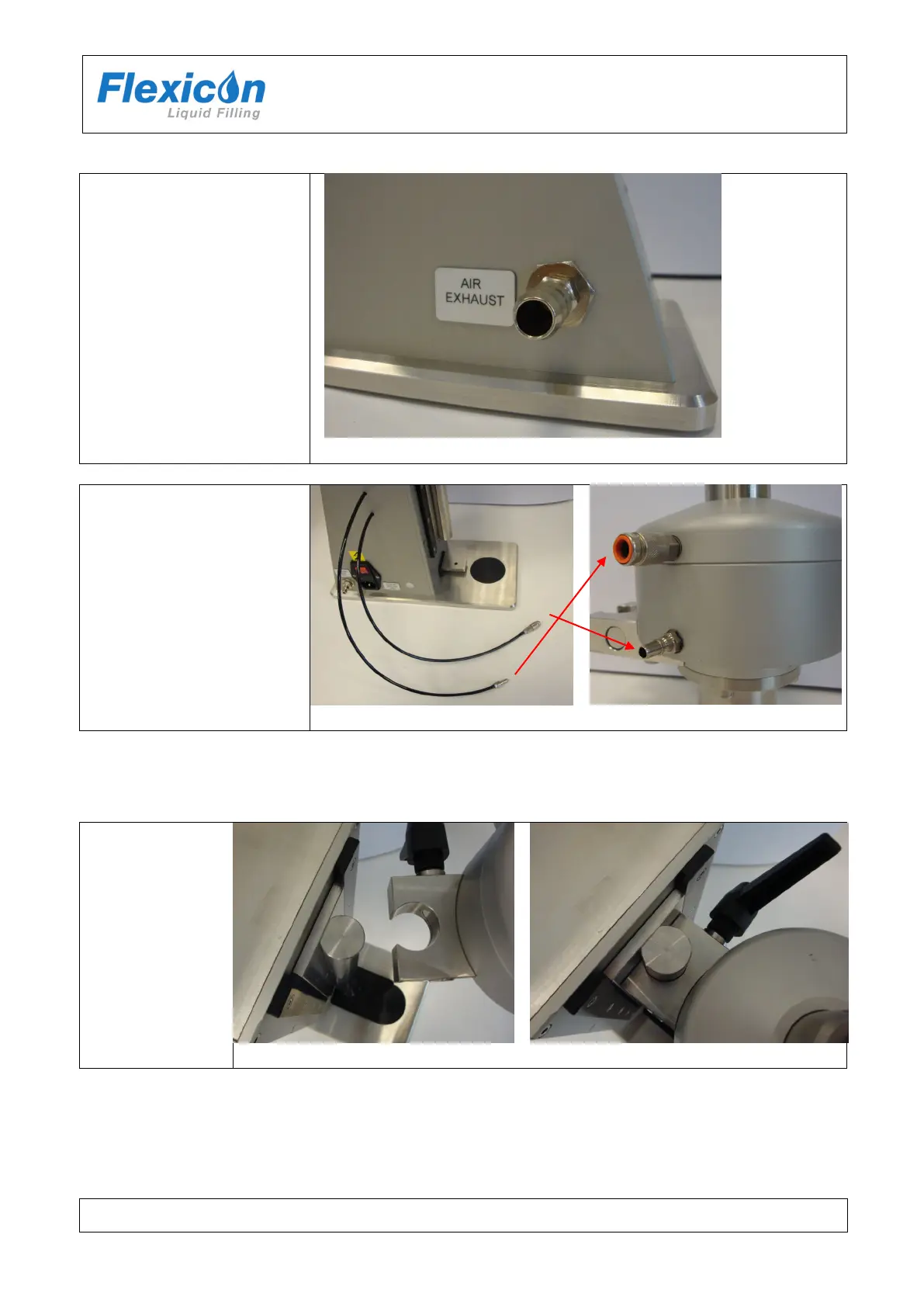

All exhaust air is collected
and exhausted through the
air exhaust filter (2)
A hose connection can be
mounted in order to
“remove” the process air
form the capping area; but
the machine will function
even if no hose is mounted.
The tubes (4) are mounted
on the capping head.
The upper tube on the
upper connection and the
lower on the lower
connection
3.2 Mounting of capping head
Loosen the
handle on the
side of the
capping head and
mount the head
gently on the
slide bar.
Tighten the
handle.
Re-mount the air
tubes on the
capping head
Changing of capping head is done the opposite way as mounting.
