INSTRUCTION HANDBOOK
FS10, FS32
FS10-32 IH EN 74-310-002 v1.04.doc Version: 1.04 Page 9 of 16
3 Installation
3.1 Connections

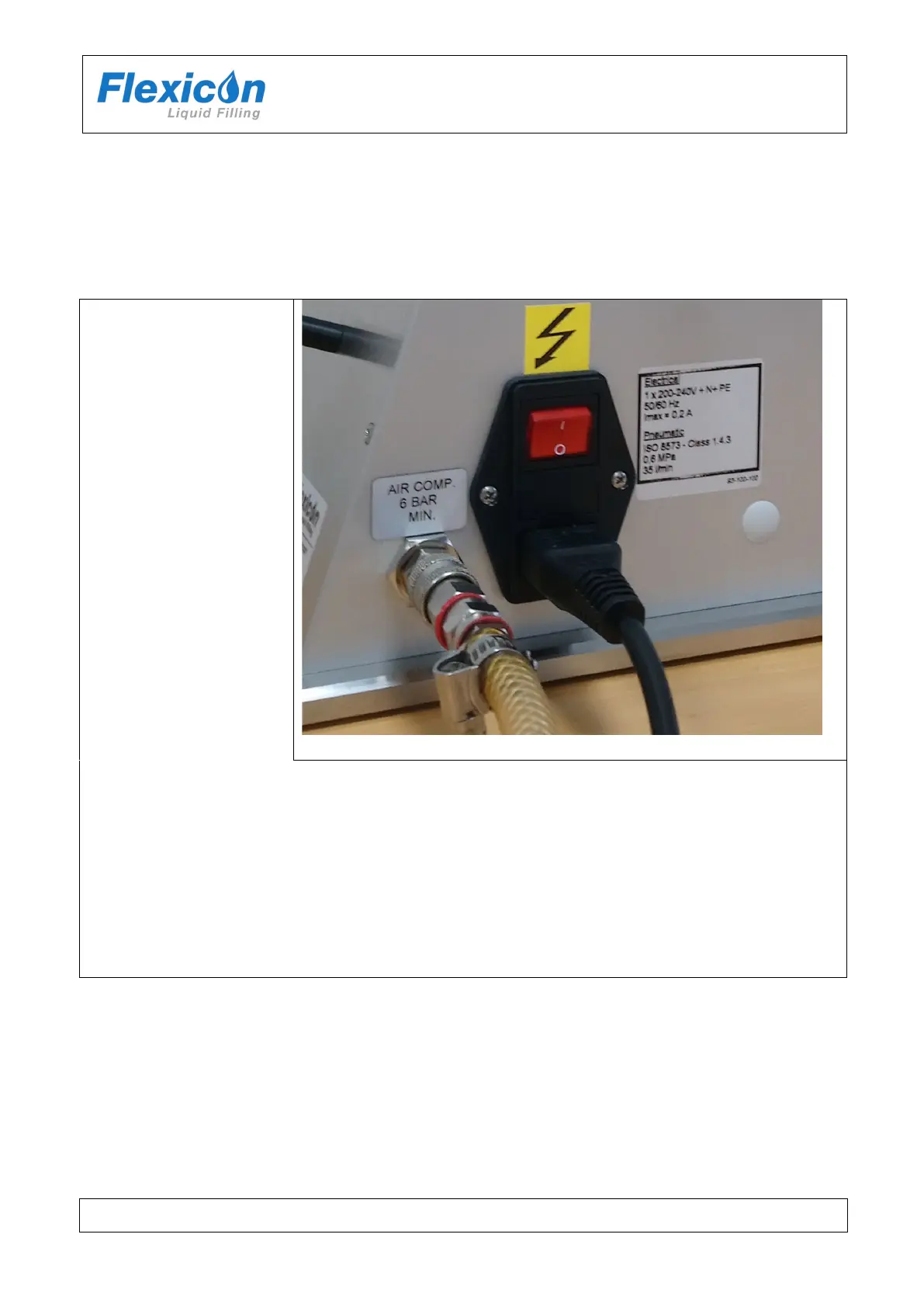

FS10 / FS32 must be placed on a stable and horizontal bedplate.
The mains cable (1) is
connected to a single-
phase power supply with
earth.
The plug box (1) contains 2
fuses. When the cover of fuse
box is removed 1 more fuse is
found inside the machine.
Compressed air is
connected to (2) by use
of the supplied quick
release clutch.
Please contact your supplier or WMF -
IF the machine is not made for your local power supply. The sign on the machine indicates the
value of power (110/120 VAC or 220/240 VAC). The frequency has no influence.
or
If the delivered power cable does not match your socket,
