2 Transporting the Unit
2.1 Lifting Points
The unit must be lifted using a truck/jack trolley (Fig. 1/2) or lifting straps. Remember to use 2 jack trolleys/trucks,
one from each side, to avoid the unit tipping down onto the floor and the base being damaged.,
If you choose to use jack trolleys or trucks to lift the unit in the middle, use equipment that has sufficiently long forks.
The forks on the jack trolley/truck should correspond at least to the width of the unit.
2.2 Weight
Data L12 L18 L20 L30 L50
Gross unit weight 165 kg 306 kg 320 kg 360 kg 510 kg
Fans 28 kg (2 fans) 42 kg (2 fans) 56 kg (2 fans) 56 kg (2 fans) 86 kg (2 fans)
Heat recovery system 16 kg 29 kg 29 kg 33 kg 37 kg
Doors 25 kg (2 doors) 91 kg (6 doors) 91 kg (6 doors) 91 kg (6 doors) 42 kg (5 doors)
Net weight for transport inside 97 kg 144 kg 144 kg 180 kg 329 kg
When the exchanger cassette is removed, the moisture rod must be taken out of the cassette and the
contact for the bypass motor released.

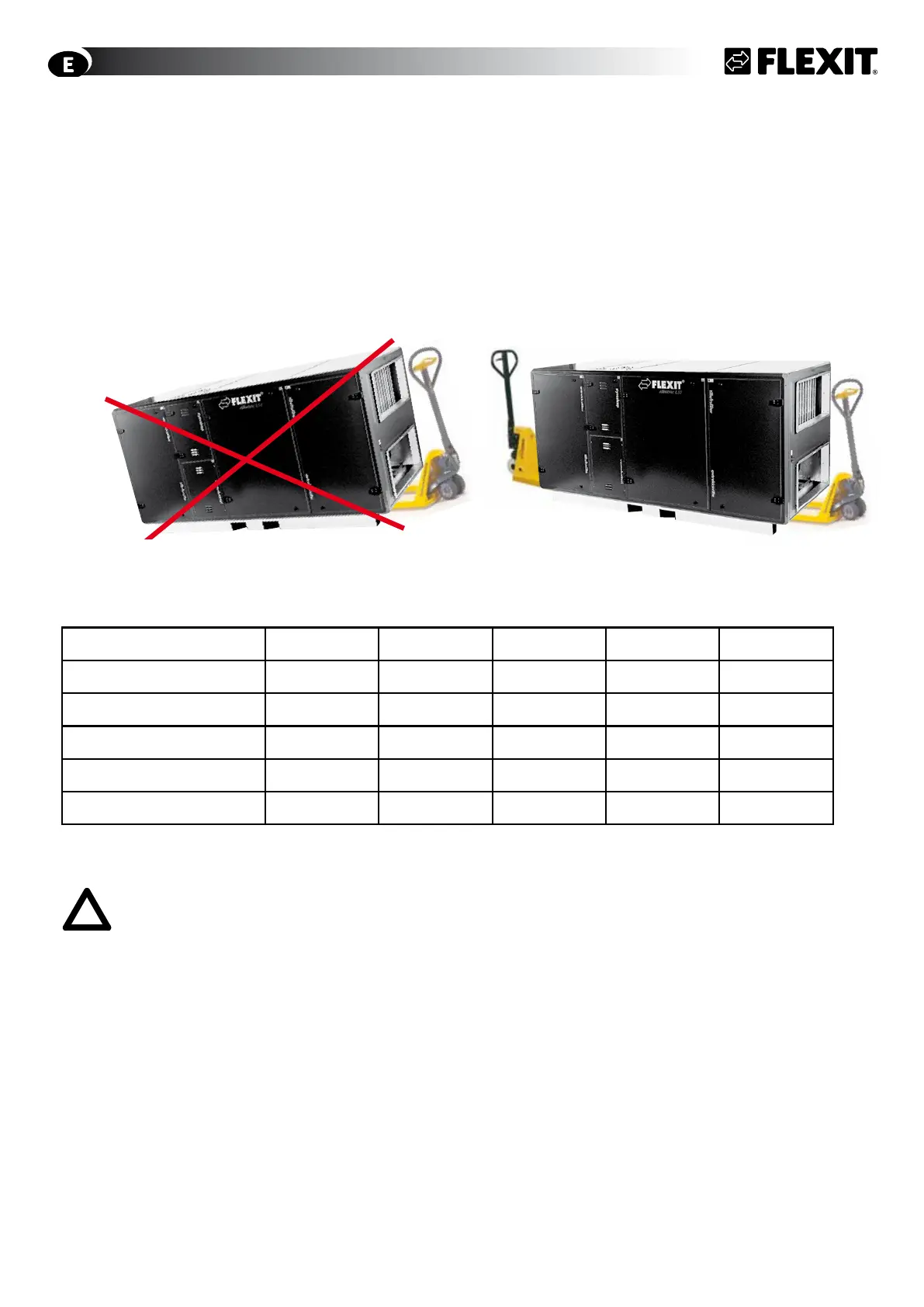

Fig. 1
