6
L18/L20/L30 W

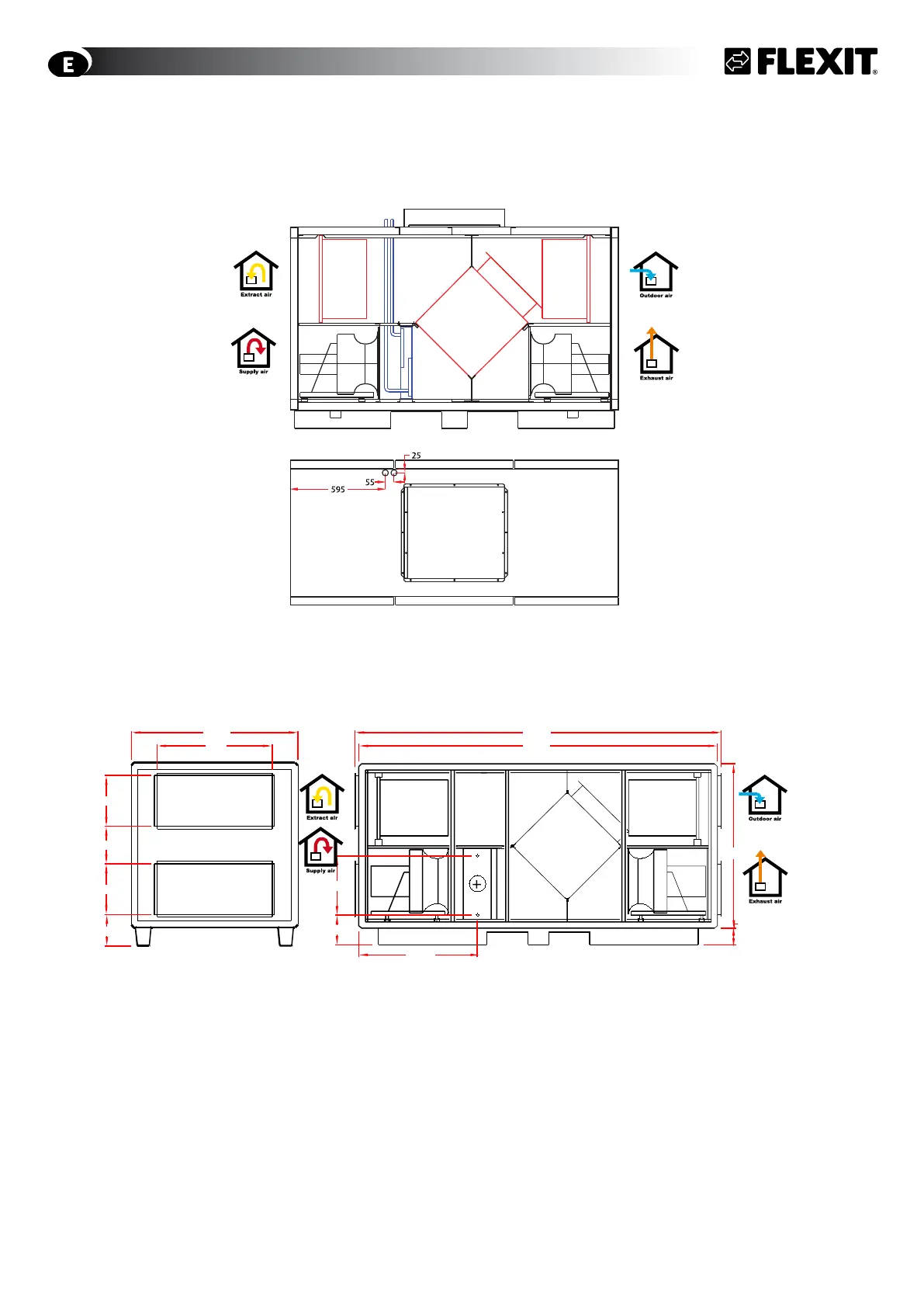

Shows connection of water heating battery.
L50 X
With a water battery: The pipe connection for the water battery may be either on the front or the rear of the unit by
reversing the ends of the battery. Hole templates on both sides have been prepared in the factory. It is important for
water pipes not to block doors or prevent the removal of the heat recovery system, filters and fans.
The dimensions are the same on both end sides. The L50 has 5 doors in front. Shown here as a right model (XR). Also
available as a left model (XL).
Fig. 6
Fig. 7
1300
900
400
295
400
235
524
970
205
130
1430
2860
2800
All measures in mm
