Alternative mounting methods:
1. Vertical mounting on wall
2.4. INSTALLATION
The unit is available in left and right versions (outdoor
air nipple to the left or right), depending on what is the
most favourable in relation to the duct location.

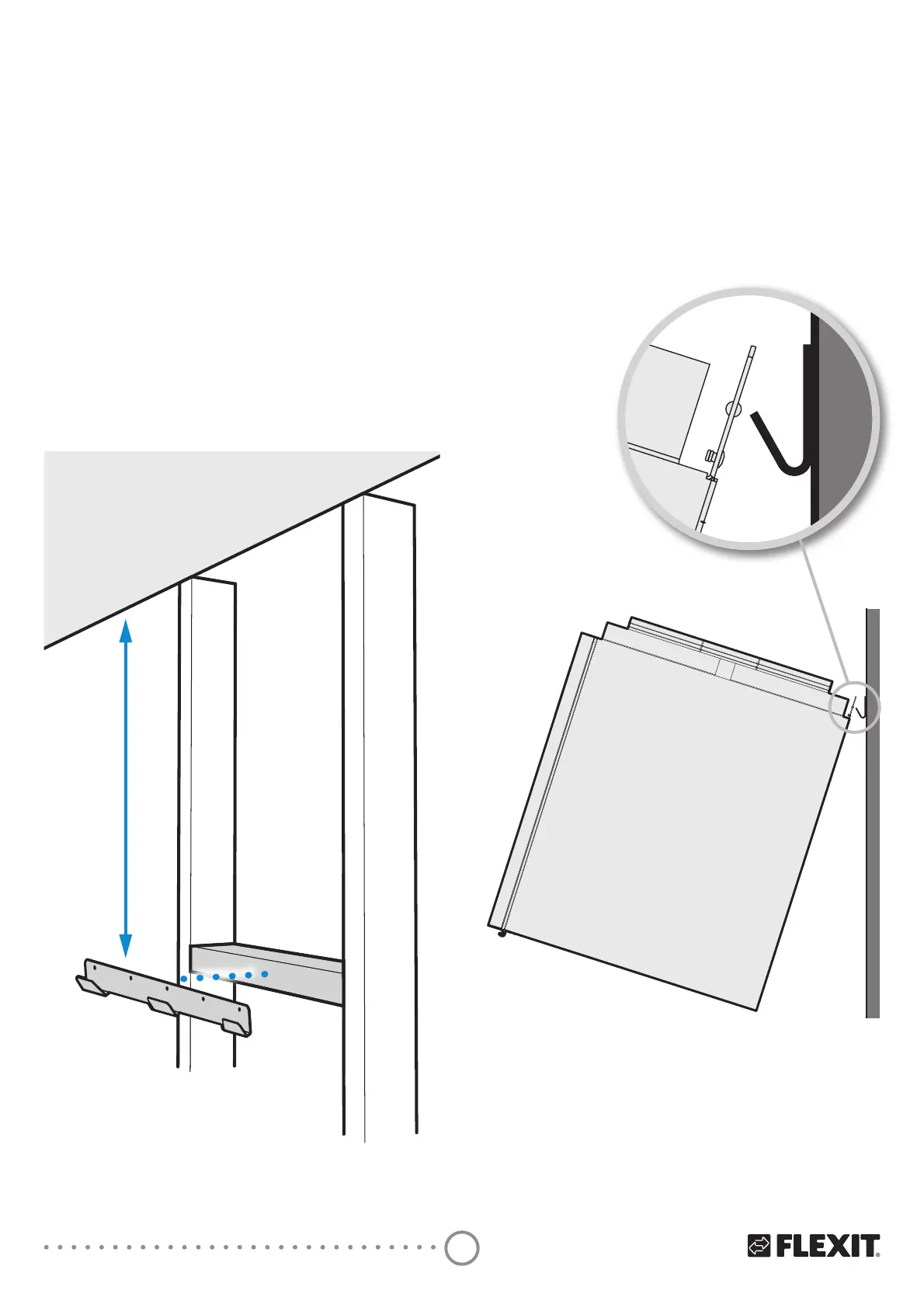

In the case of wall mounting, secure the wall bracket to
the wall and hang the unit in place (Fig. 3). Hold the unit
at an angle when hooking it onto the wall.
The top edge of the wall bracket should be mounted
bPPKLJKHUWKDQWKHWRSRIWKHXQLWȇVEDFNSDQHOΔIbIRU
example, the top of the unit is to be 400 mm below the
ceiling, the wall bracket should be mounted 383 mm
from the ceiling, measured from the ceiling to the top
edge of the wall bracket (Fig. 2).
CEILING
300-500 mm
Fig. 3
Fig. 2
