NORDIC S3

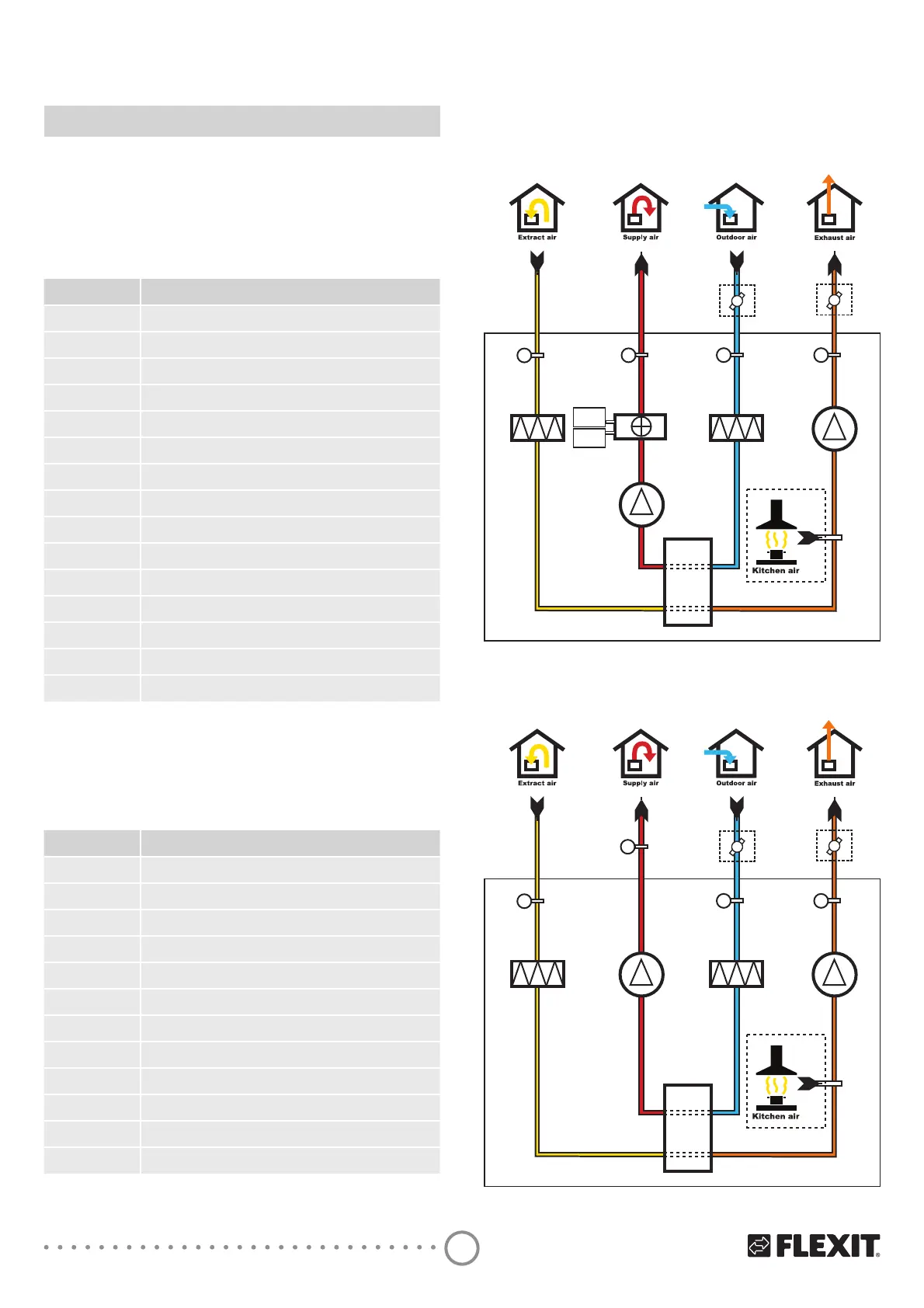

8. System and general drawings
8.1. SYSTEM DRAWING (ELECTRIC HEATING
BATTERY)
(shown as a right model)
Abbreviation Description
B1 Supply air temperature sensor
B3 Extract air temperature sensor
B4 Outdoor air temperature sensor
B6 Exhaust air temperature sensor
EB Heating battery
F10 Overheating thermostat, manual reset
F20 Overheating thermostat, automatic reset
FI1 6XSSO\DLUȴOWHU
FI2 ([WUDFWDLUȴOWHU
M1 Supply air fan
M2 Extract air fan
HR-R Rotary wheel-type heat exchanger
M4 Rotor motor
DA1 Damper
DA2 Damper
8.2. SYSTEM DRAWING (WITHOUT HEATER)
(shown as a right model)
Abbreviation Description
B1 Supply air temperature sensor
B3 Extract air temperature sensor
B4 Outdoor air temperature sensor
B6 Exhaust air temperature sensor
FI1 6XSSO\DLUȴOWHU
FI2 ([WUDFWDLUȴOWHU
M1 Supply air fan
M2 Extract air fan
HR-R Rotary wheel-type heat exchanger
M4 Rotor motor
DA1 Damper
DA2 Damper
B1
M2
M4
HR-R
FI2
FI1
B4
K
DA1DA2
M1
B3
B6
B1
M2
M1
EB
F10
F20
M4
HR-R
FI2
FI1
B4
K
DA1
DA2
B3
B6
