4.3. CHANGING THE BRUSH STRIPS
The brush strips become worn over time. If they do
not lie tightly against the rotary exchanger, it may be
necessary to change them.
Alternatively, they may be moved closer to the rotor,
astheproletheyaremountedinhastwogrooves.

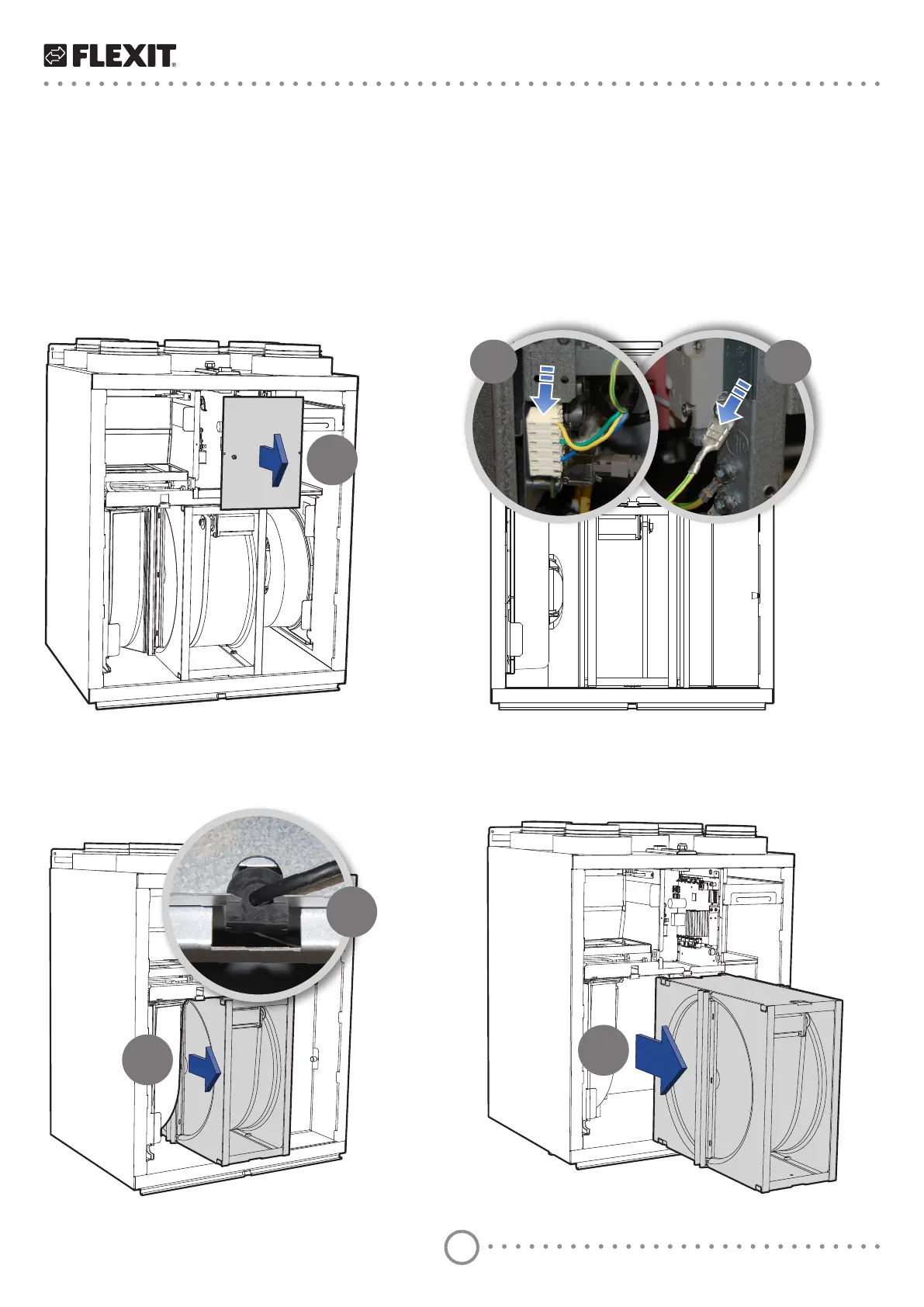

Proceed as follows:
1. Undo the screws on the electric cover and take the
covero.
4. Pull the rotor module approximately 2-3 cm out.
5. Pull the cable bushing over the middle of the rotor
out of the groove so that the cable with the quick-
release contact comes too.
2. Disconnecttherotor’squick-releasecontactfrom
the circuit board.
3. Pull out the cable lug to disconnect the earth from
the circuit board.
6. Pull the rotor module right out and position it with
the brush strips facing up.
