FlexRadio Systems FLEX-1500 Service Manual

1k
1k
1k

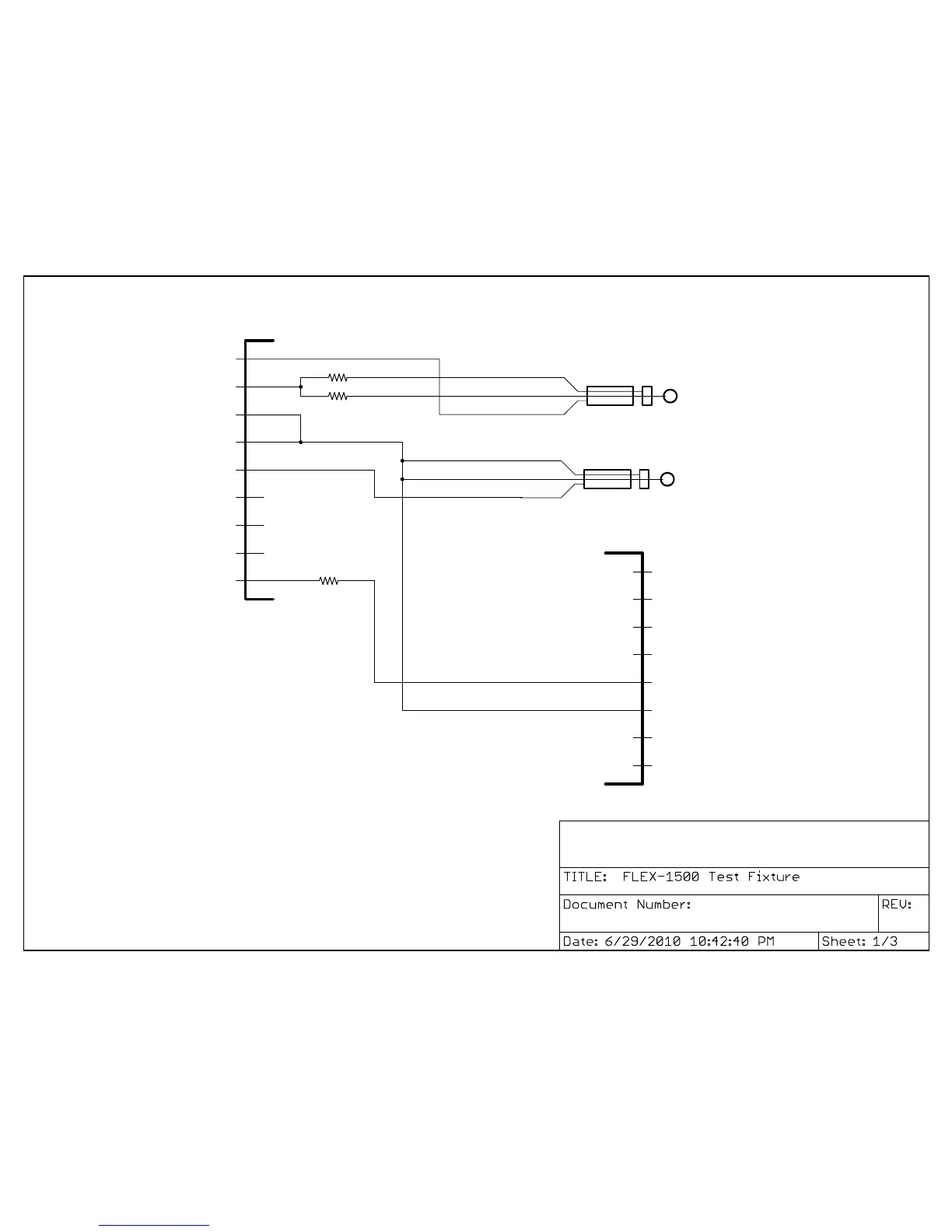

FLEX-1500 TEST FIXTURE
NOTES:
1. FlexWire Line-Out drives Microphone In
2. Speaker/Phones drive FlexWire Line-In
3. PTT-OUT from FlexWire drives FW-PTT-IN, MPTT, DOT, & DASH
R1
R2
R3
PTT-OUT
PTT-IN
GND
GND
AUDIO LINE-IN
AUDIO LINE-OUT
I2C-SCL
I2C-SDA
+12 VOLTS
1
2
3
4
5
6
7
8
9
N.C.
N.C.
N.C.
FLEXWIRE
DB-9 CONNECTOR
TIP
TIP
RING
RING
SLEEVE
SLEEVE
PHONES
MICROPHONE -- RJ45
KEY
N.C.
1
2
3
4
5
6
7
8
N.C.
N.C.
GND
GND
+5V
MIKE
MIKE PTT
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
White
White
RedRed
Red
Shield
Shield
Audio And Switching Test Cable
Orange
White of Blue
White of Blue
