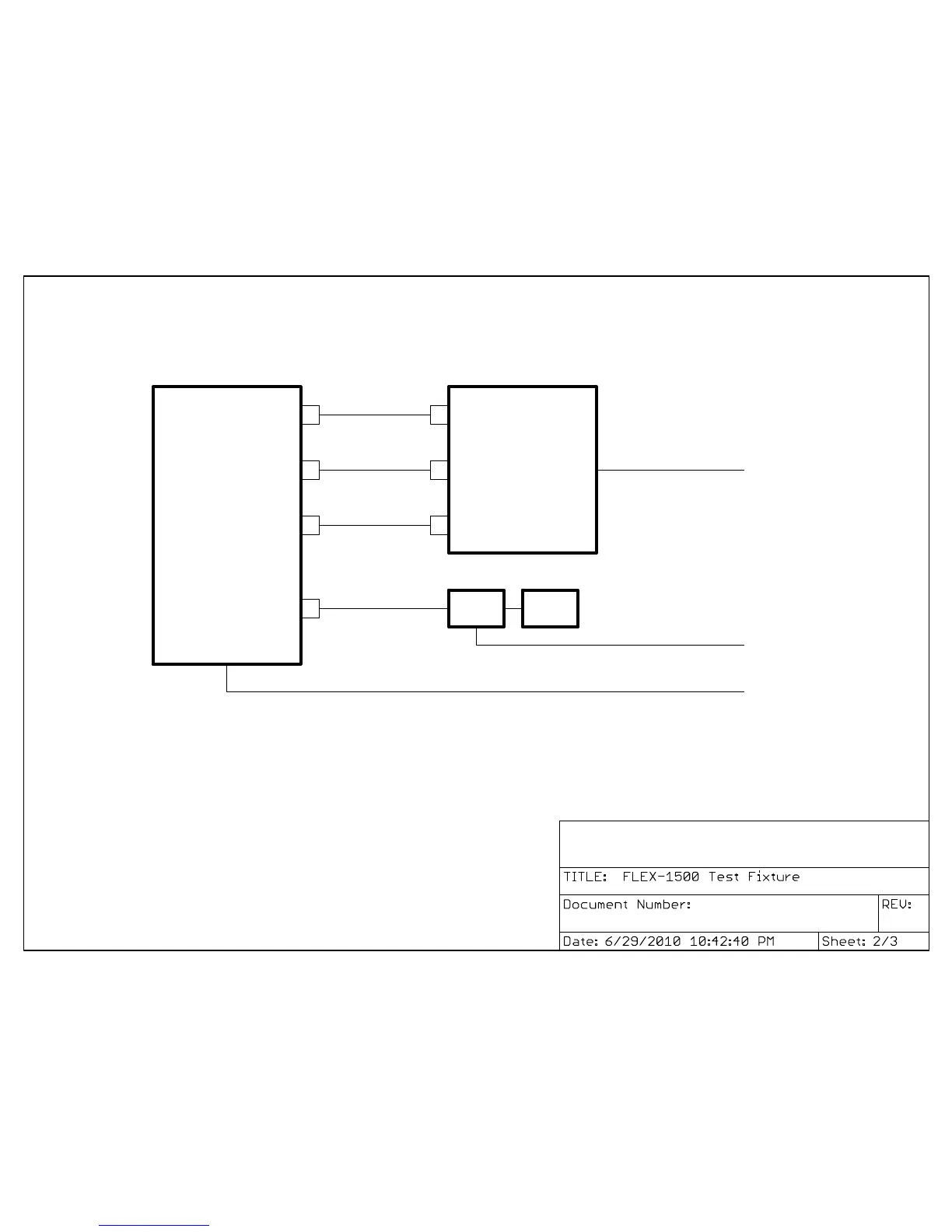

FLEX-1500 TEST FIXTURE
POWER DUMMY
LOADMASTER
NOTES:
1. DDS SigGen drives 10 MHz input at 0 dBm
2. DDS SigGen drives XVRX, XVTX/C at -70 dBm through splitter
3. PowerMaster verifies RF power output
USB
CONTROLLED
SIGNAL GENERATOR
10 MHz
XVRX
XVTX/C
ANT
10 MHz
RF Connections
FLEX-1500
UNDER
TEST
XVTX/C
XVRX
BNC to BNC Cable
BNC to BNC Cable
BNC to BNC Cable
BNC to BNC Cable
USB to Host Computer
USB to Host Computer
USB to Host Computer
