FLEX-6000 Signature Series – Maestro User Guide
Page 131
Copyright 2019 FlexRadio Systems. All Rights Reserved.
• Set Mode: Change the Active Slice Receiver mode to a new value
• Send CW: Send a short message in CW mode
• Split: Invoke split operation on the Active Slice Receiver
• Open Memory: Open the memory tab on the display
See section 33.7, Function Buttons for a discussion of the use of the Function buttons.

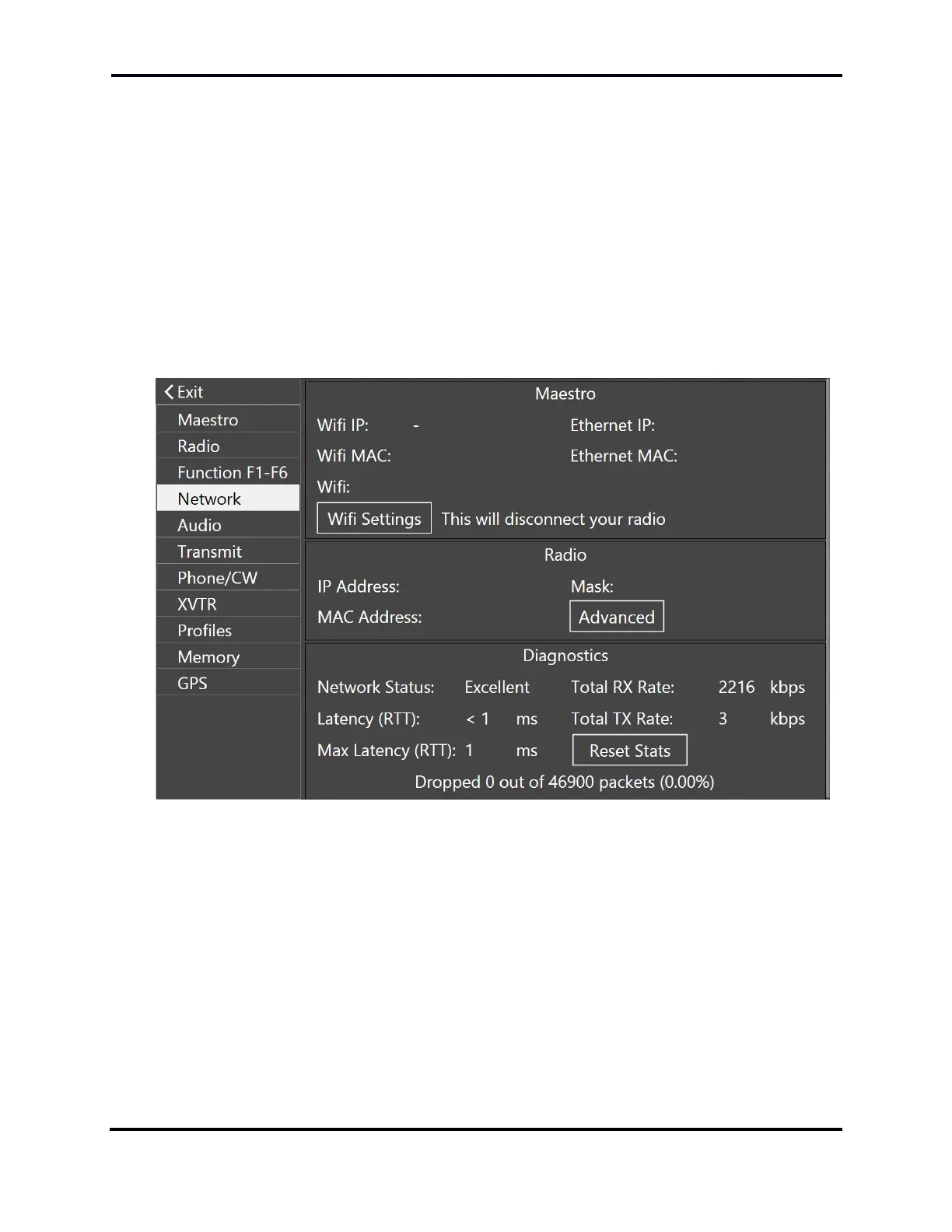

30.5 NETWORK TAB
The Network tab contains information about Maestro’s connection to the communication network,
the attached radio’s network connection and network diagnostics.
The Maestro and Radio sections of this tab show the IP addresses of the Maestro wireless and wired
Ethernet interfaces, the radio’s wired Ethernet interface and other associated information. When a
Wi-Fi connection has been made, the Wi-Fi IP field will contain the IP address associated with that
connection. When the field is empty, no Wi-Fi connection has been made. Similarly, when a wired
Ethernet connection has been made, the Ethernet IP field will contain the IP address associated with
that connection. When the field is empty, no Ethernet connection has been made.
Pressing the Wi-Fi Settings button terminates Maestro’s connection to the radio and returns user
control to the Choose a Wi-Fi Network startup screen. The user can choose a Wi-Fi network and
connect to it or can choose to break a Wi-Fi connection using the Forget button. See section 4.6, Wi-
Fi Network Setup for more information.
