Flight Deck SC-6502 - Name and Function of Each Part; Current Speed (VEL) Display; Gear Indicator (Bar) Display; Time Display (CLK)

(
1
)
Current speed
(
VEL
)
km/h, mph
When main
display cadence
appears on top
Current speed
will appear in
the sub - display
0.0 (2.0) - 130.0km/h
0.0 (1.2) - 80.0mph (Range)
The current speed will appear at
the top of the main display.
(
2
)
Gear indicator
(
bar
)
Front display
Rear display
For double : Low position •••••
For triple : Middle position ••••
For single : ••••••••••••••••••••
Displays; Top for smallest sprocket
Low for largest sprocket
(
3
)
Time display
(
CLK
)
24- hours clock
Gear indicator bar will not appear
if the sensor wire is not connected
or it has been turned off.
Clock will appear when changing
mode 2 to mode 1 and during
power saver function.
7th sprocket for 10-sprocket set ••••••••
7th sprocket for 9-sprocket set •••••••••
7th sprocket for 8-sprocket set •••••••••
7th sprocket for 7-sprocket set •••••••••

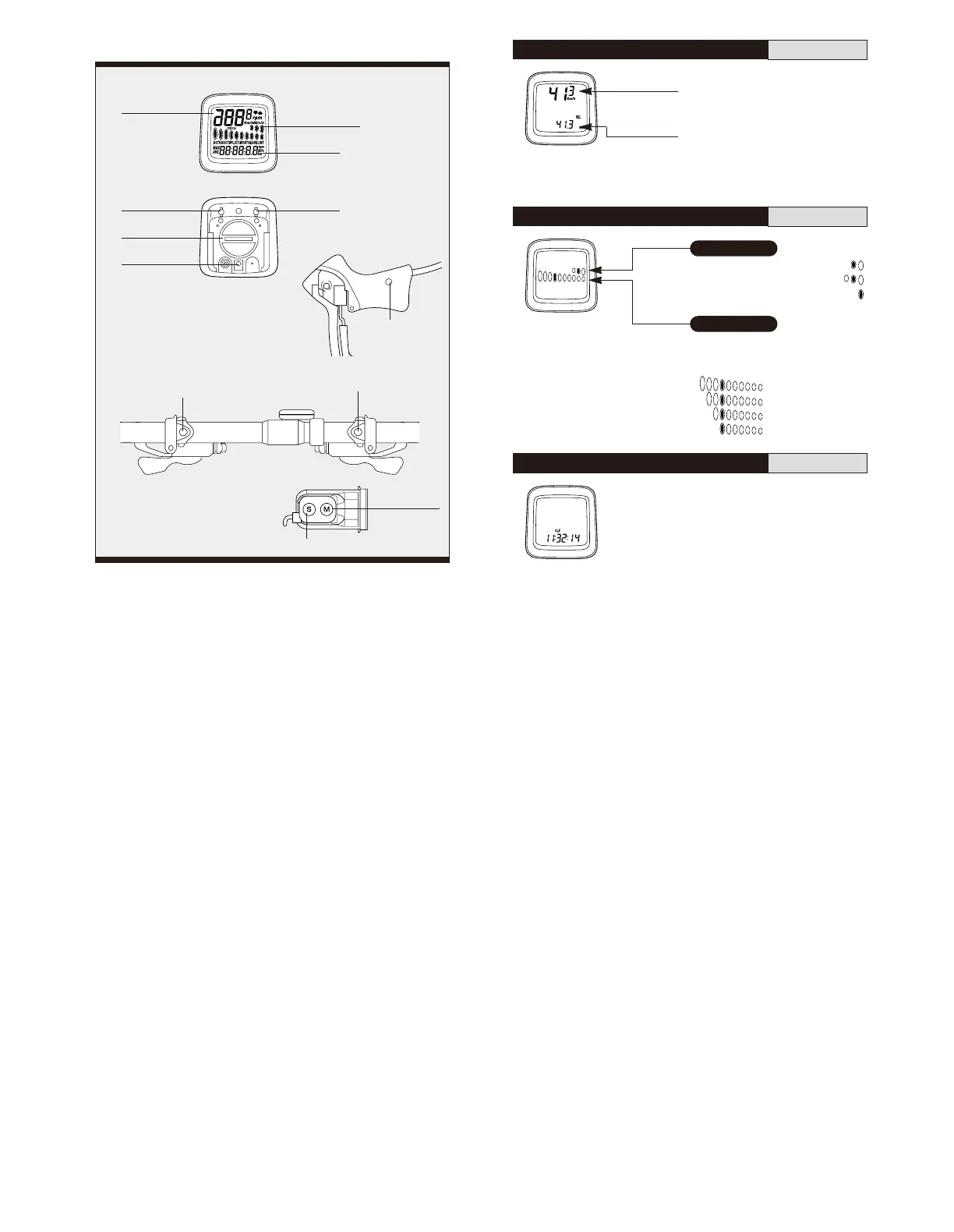

3. Name and function of each part
Front
Rear
STI Brake Bracket
<
ST- 7800, ST-7700-C, ST- 6510,
ST- 5500-CA, ST- 4400, ST- 3300/3303
>
<
ST- M510, SL- M510
>
ST/SP button
Mode button
Main Display
1. Current speed
(VEL)
8. Cadence
Sub Display
3 - 7, 9 -10
2. Gear indicator
(bar)
Switch B
AC All clear
Switch
Battery cap
Switch A
R.H. side lever :
Mode button
L.H. side lever :
ST/SP button
<
ST-M952, ST-M750, ST-M570,
SL-M952, SL-M750, SL-M570
>
ST/SP button
Mode button
