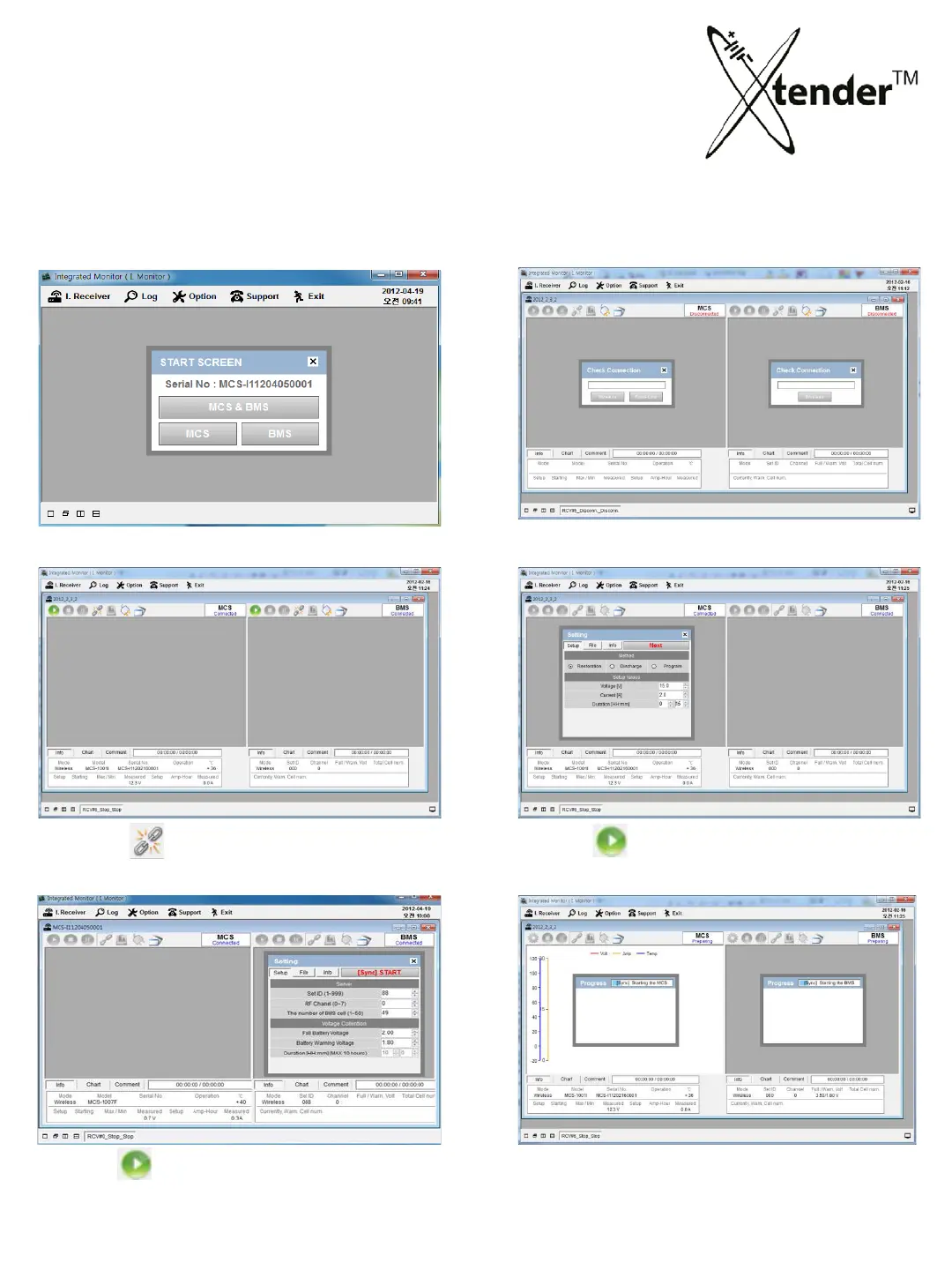

5. Xtender Monitoring Program for PC

 INTEGRATED MONITORING PROGRAM – Xtender+BMS CONTROL

USED TO MONITOR MANUAL DISCHARGE CYCLE ONLY

① Select “MCS+BMS” ② Process of connecting with MCS+BMS

③ Click button to synchronize MCS

and BMS.

④ Click of MCS on the left

 input Set Values  Click “Next” .

⑤ Click of BMS on the right

 input Set values Click [Sync]”START”.

⑥ MCS and BMS are synchronized(integrated).
